MPLC COLUMNS FOR PREP CHROMATOGRAPHY

Columns for Medium Pressure with axial bed compression

Separchrom PC02 medium pressure stainless steel column are intended for separation where high pressure is not necessary, but high efficiency can be still expected and useful. Separchrom PC02 thus fill requirements of many users. They are made of cutted and polished stainless steel tubes and equipped on input either with ultra high molecular weight polyethylene made pistons (PC 02 UP) with steel support or stainless steel made pistons (PC 02 SP), both with Poremet® 5 stainless steel (AISI 316 L) frits with 02 porosity 5 µm and minimum hydraulic resistance. Flow distributors with groves for liquid distribution are incorporated in to the piston and the system guarantees perfect piston flow with nearly zero pressure drop. Columns have functional stroke of the input piston approximately 60 % of the inner diameter of the column when working with flange bolts and even higher when hydraulic cylinder is used.

Outputs of PC02 columns are designed as fix units (pistons on special request) and use the same flow distributors and frits like input pistons.

Due the low movement resistance of UHMWE pistons Separchrom PC02 columns can be equipped with special software application in order to compensate swelling and deswelling of organic sorbents in different mobile phases (column piston is moved in very small steps up and down during use).

Columns for laboratory applications

Type of column I.D.
mm		 Length
mm		 Pressure
Bar		 Note
SEPARCHROM PC02 -25/50 25 50 70
SEPARCHROM PC02 -25/250 25 250 70
SEPARCHROM PC02 -50/250 50 250 50
SEPARCHROM PC02 -50/500 50 500 50
SEPARCHROM PC02 -100/250 100 250 40
SEPARCHROM PC02 -100/500 100 500 40

Columns forindustrial applications

Type of column I.D.
mm		 Length
mm		 Pressure
Bar		 Note
SEPARCHROM PC02-100/250 100 250 40
SEPARCHROM PC02-100/500 100 500 40
SEPARCHROM PC02-150/300 150 300 40
SEPARCHROM PC02-150/600 150 600 40
SEPARCHROM PC02-200/400 200 400 35
SEPARCHROM PC02-200/700 200 700 35
 .
SEPARCHROM PC02-200/800 200 800 35
SEPARCHROM PC02-200/1200 200 1200 35
 .

SEPARCHROM PC02-300/300 300 300 30
SEPARCHROM PC02-300/600 300 600 30
SEPARCHROM PC02-300/700 300 700 30
 .
SEPARCHROM PC02-400/400 400 400 20
SEPARCHROM PC02-400/800 400 800 20
SEPARCHROM PC02-400/1200 400 1200 20
 .

SEPARCHROM PC02-500/500 500 500 10
 .
SEPARCHROM PC02-500/1000 500 1000 10
SEPARCHROM PC02-500/1200 500 1200 10
 .

SEPARCHROM PC02-600/600 600 600 5
SEPARCHROM PC02-600/1200 600 1200 5
 .

Separchrom PC02 catalog sheet
soubor 1
soubor 2
soubor 3
soubor 4
1
SEPARCHROM PC02

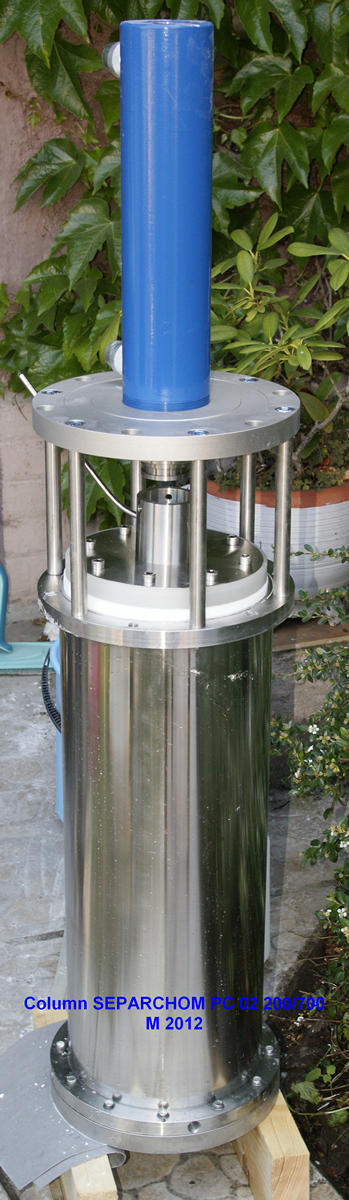

img do poznamky 1
SEPARCHROM PC02 200/700
img do poznamky 2

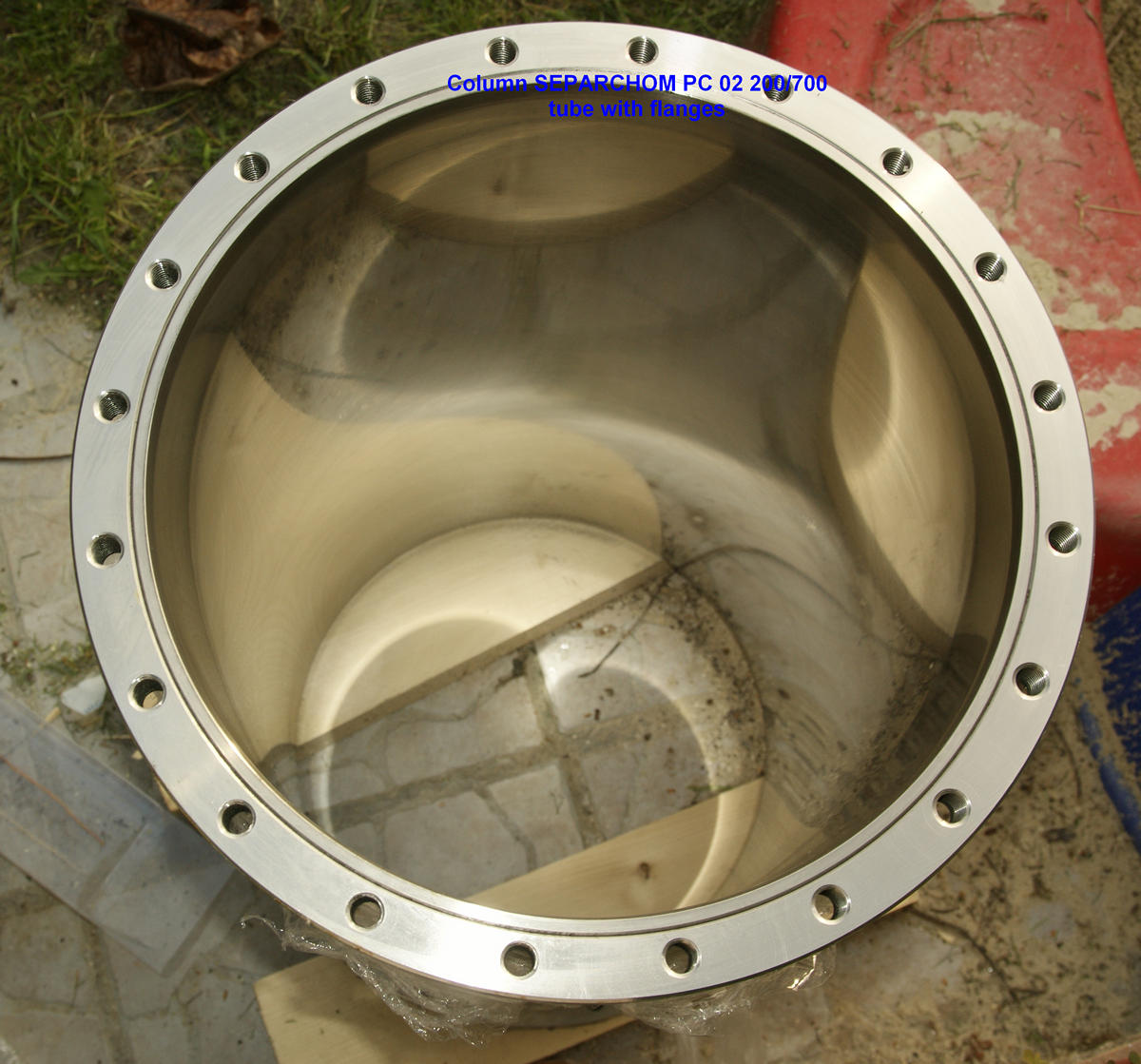

SEPARCHROM PC02 200/700 TUBE WITH FLANGES
img do poznamky 3

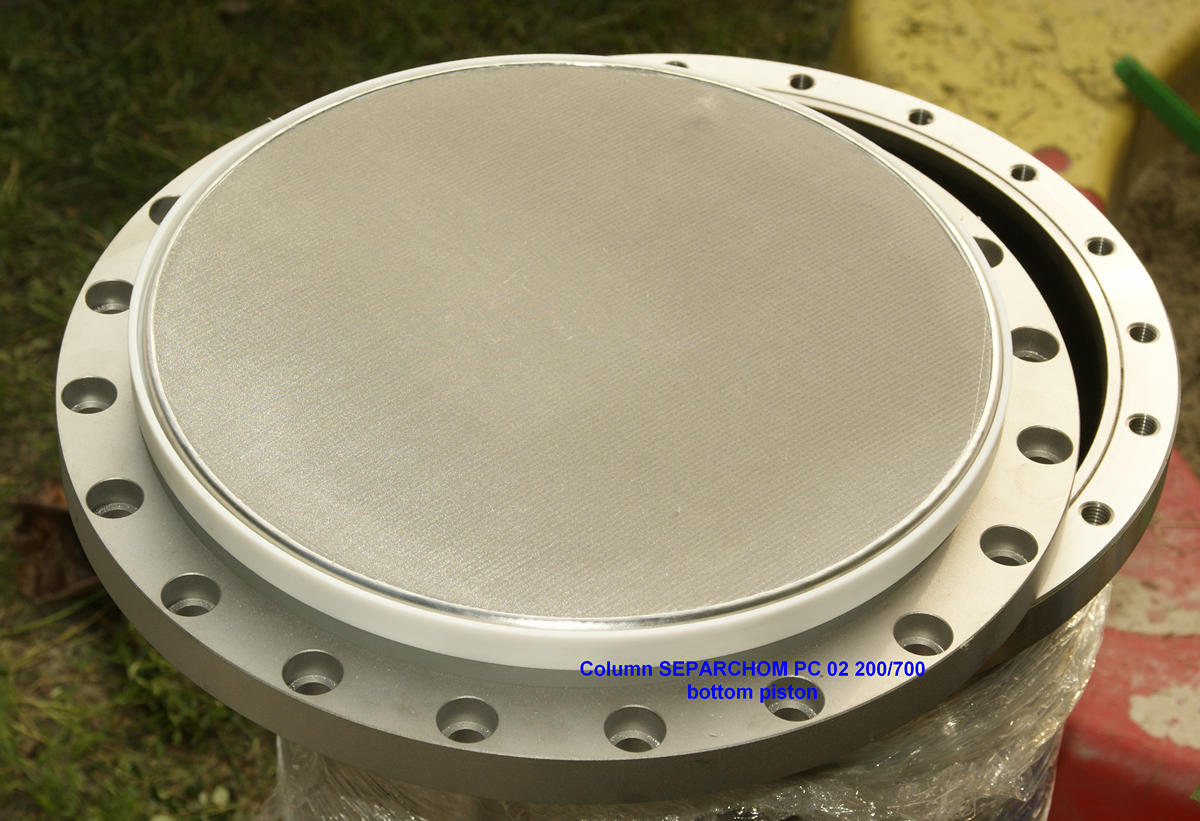

SEPARCHROM PC02 200/700 BOTTOM PISTON
img do poznamky 4

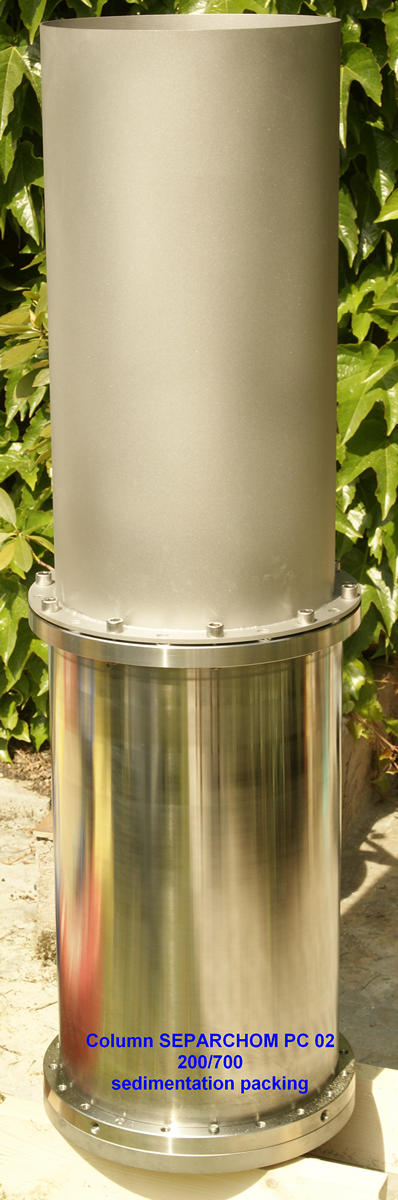

SEPARCHROM PC02 200/700 SEDIMENTATION PACKING
img do poznamky 5

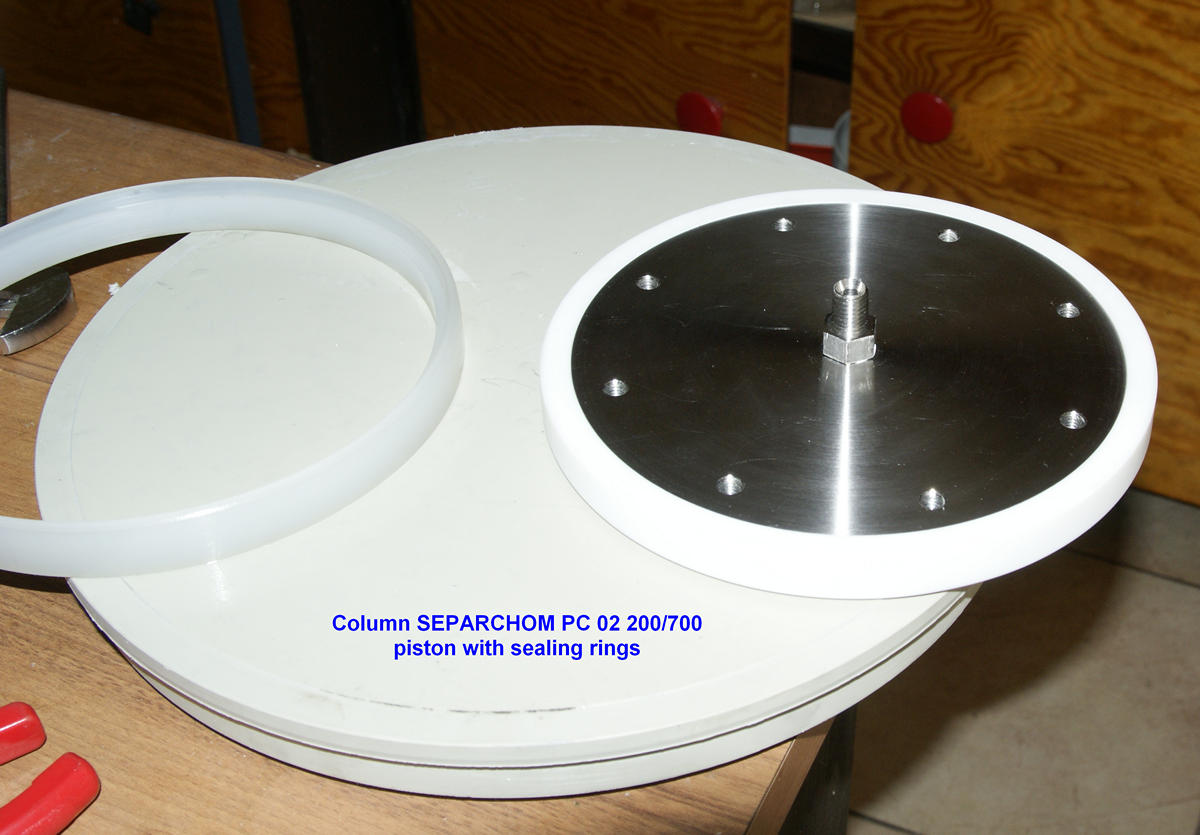

SEPARCHROM PC02 200/700 PISTON WITH SEALING RINGS
img do poznamky 6

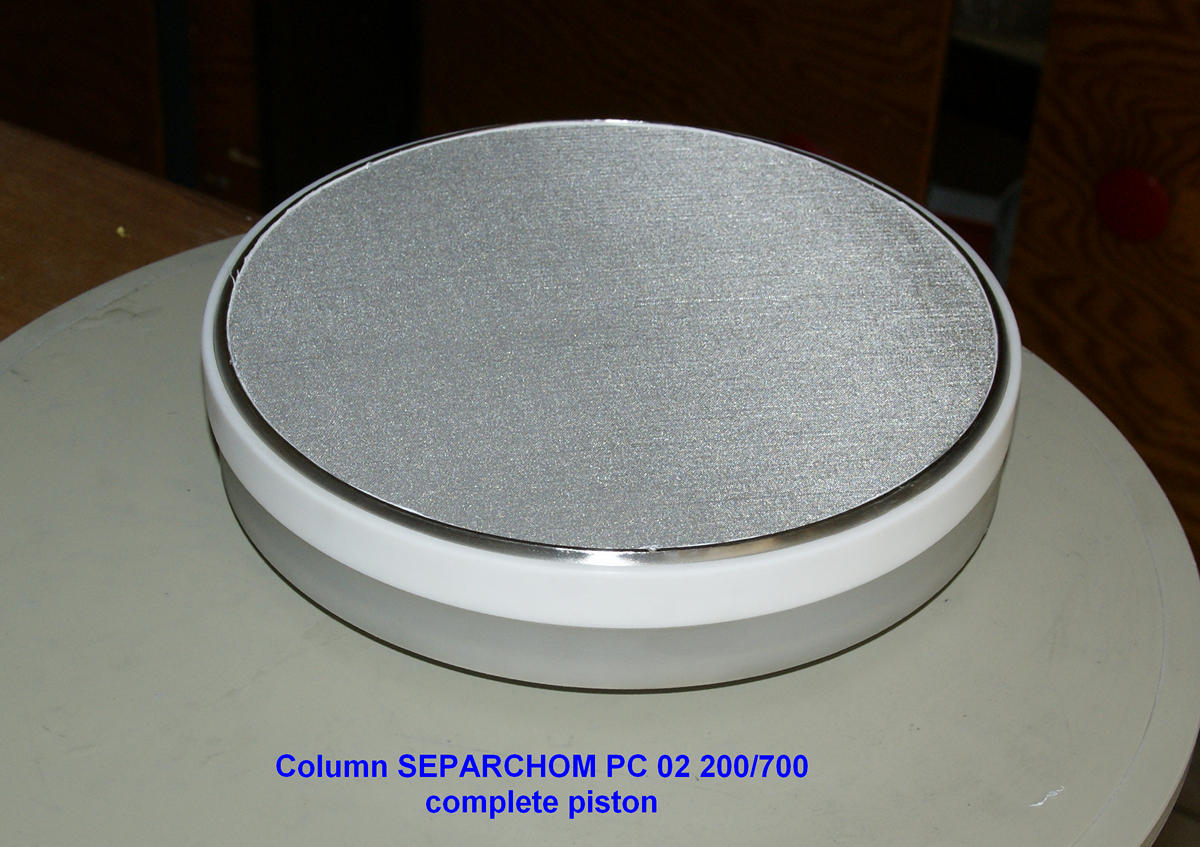

SEPARCHROM PC02 200/700 COMPLETE PISTON
img do poznamky 7
SEPARCHROM PC02 200/1200
img do poznamky 8

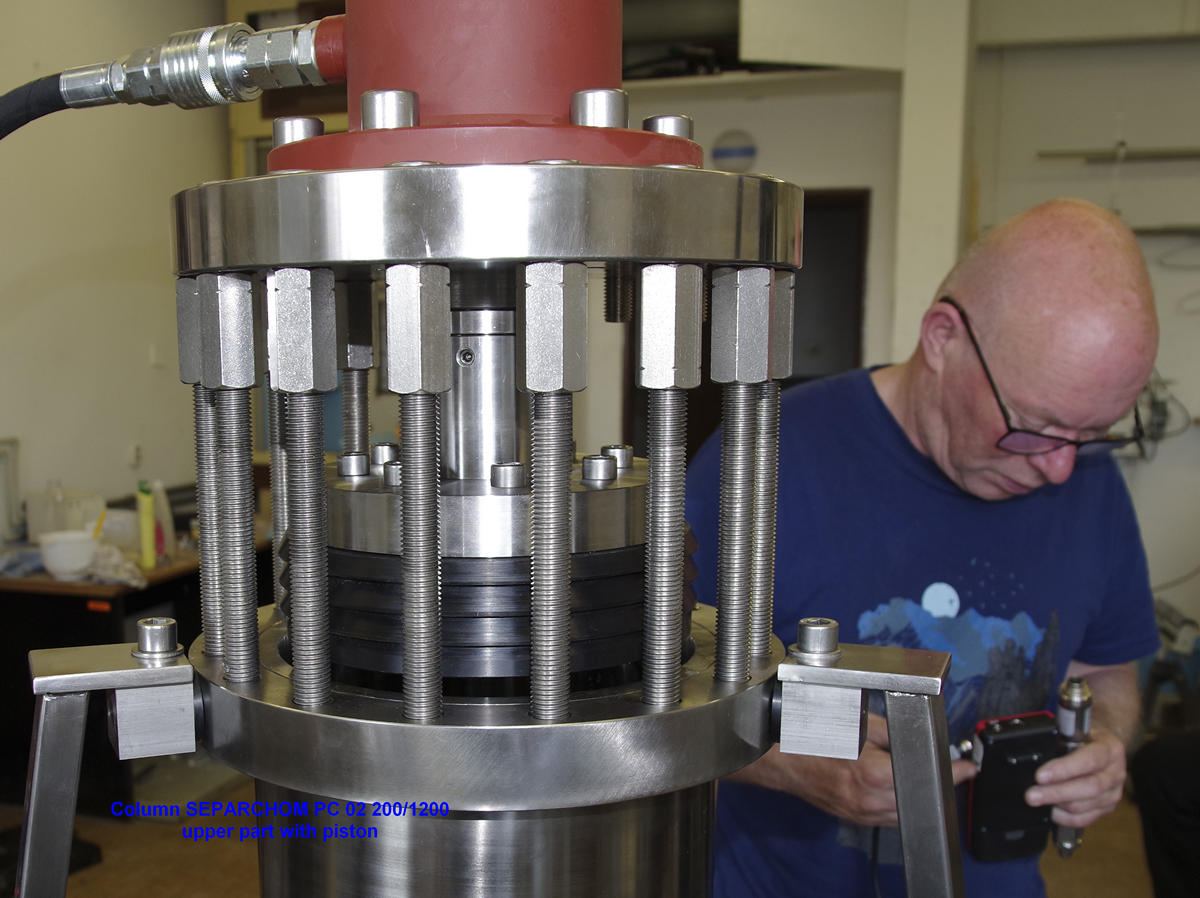

SEPARCHROM PC02 200/1200 UPPER PART WITH PISTON
img do poznamky 9

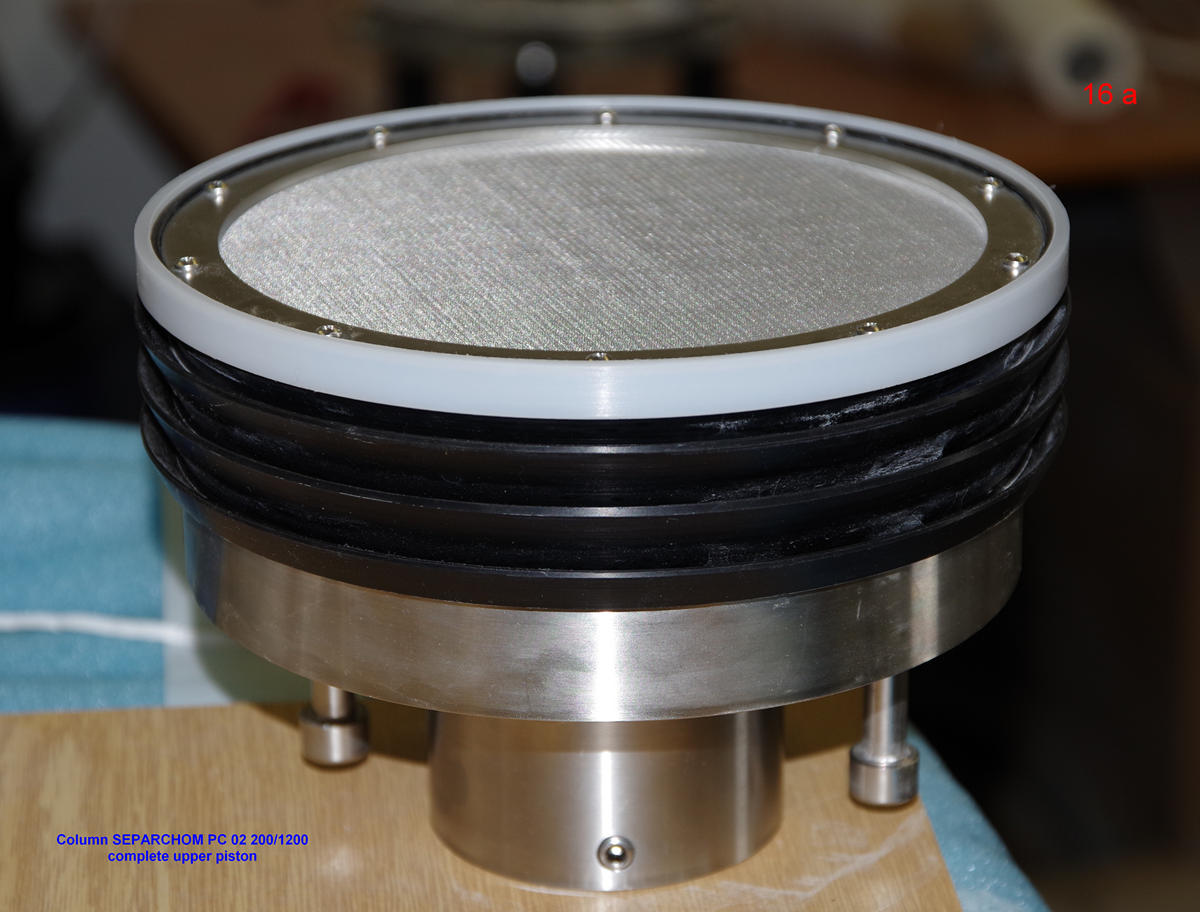

SEPARCHROM PC02 200/1200 COMPLETE UPPER PISTON
img do poznamky 10

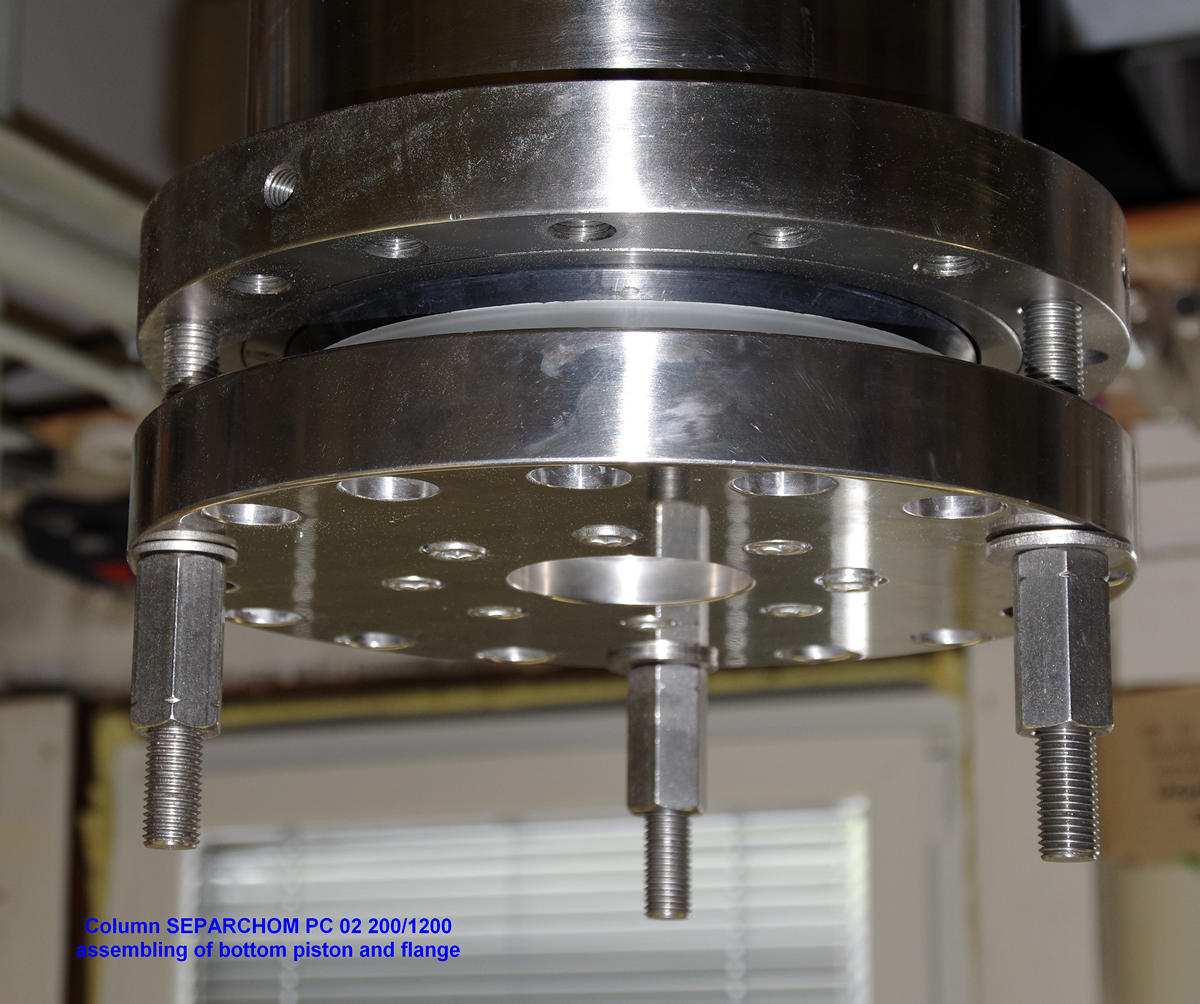

SEPARCHROM PC02 200/1200 ASSEMBLING OF BOTTOM PISTON AND FLANGE
img do poznamky 11

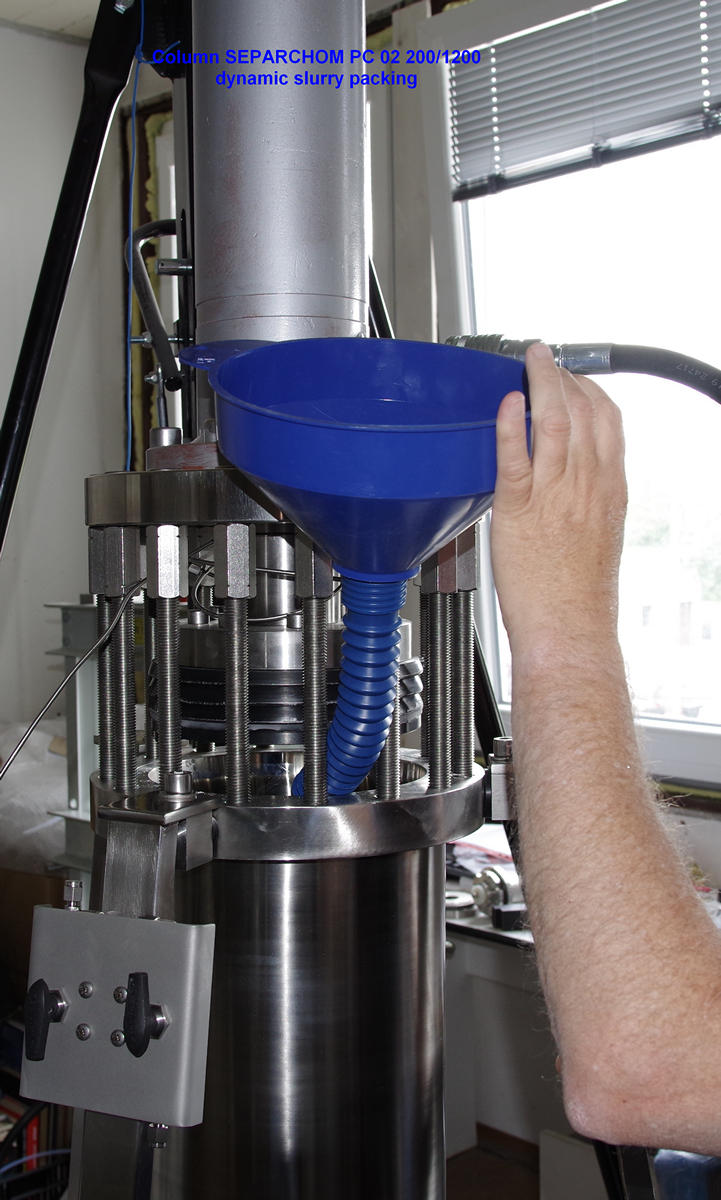

SEPARCHROM PC02 200/1200 DYNAMIC SLURRY PACKING
img do poznamky 12

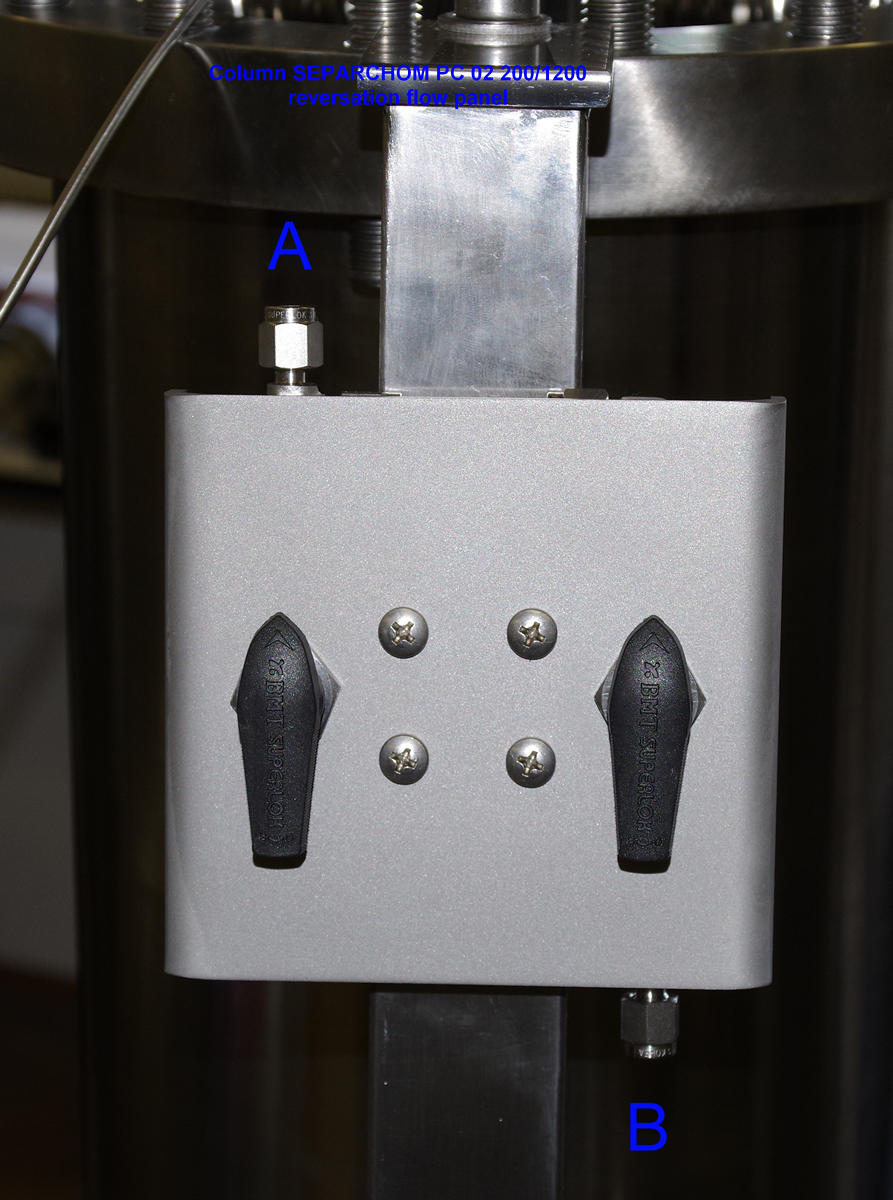

SEPARCHROM PC02 200/1200 RESERVATION FLOW PANEL
img do poznamky 13

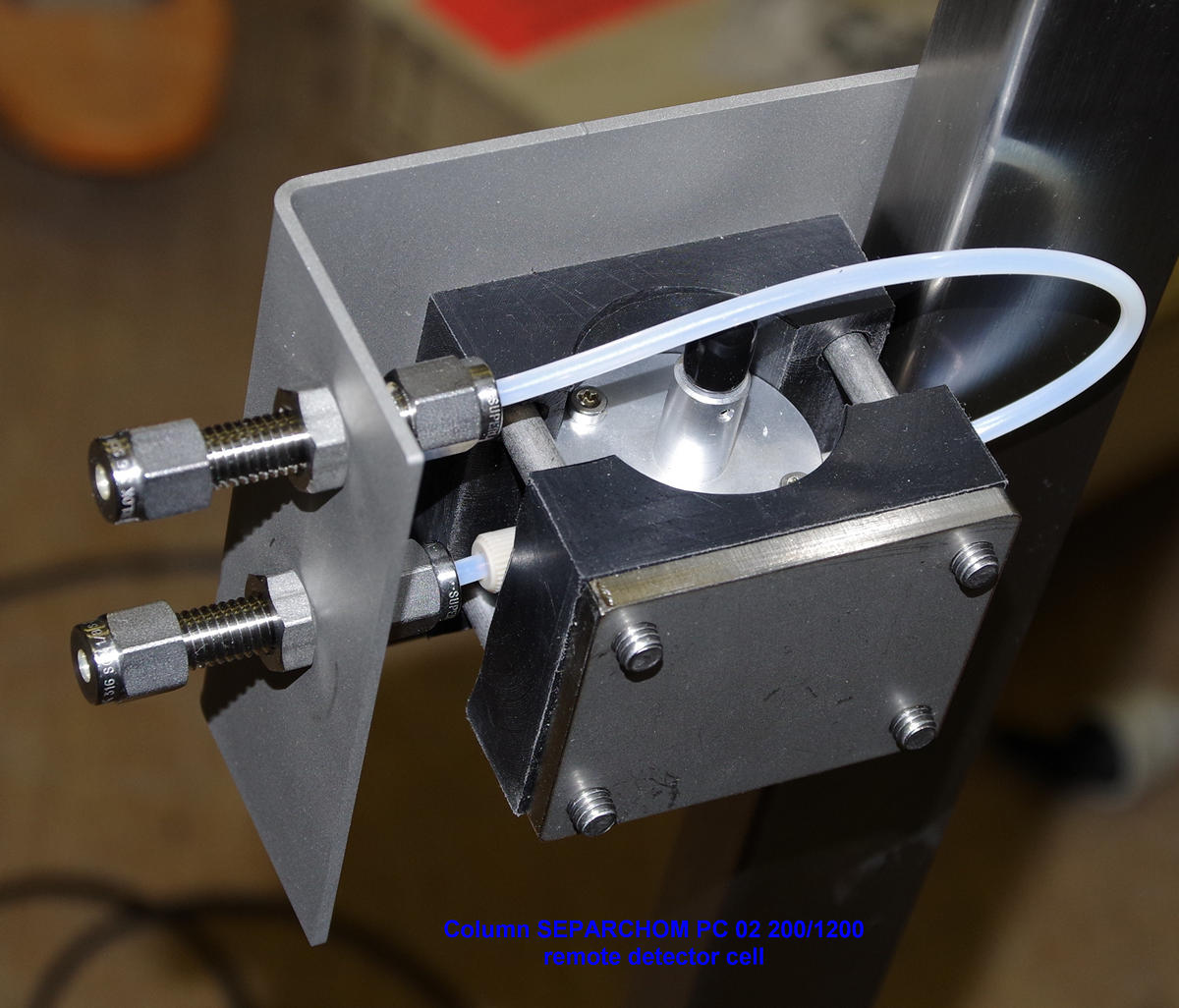

SEPARCHROM PC02 200/1200 REMOTE DETECTOR CELL

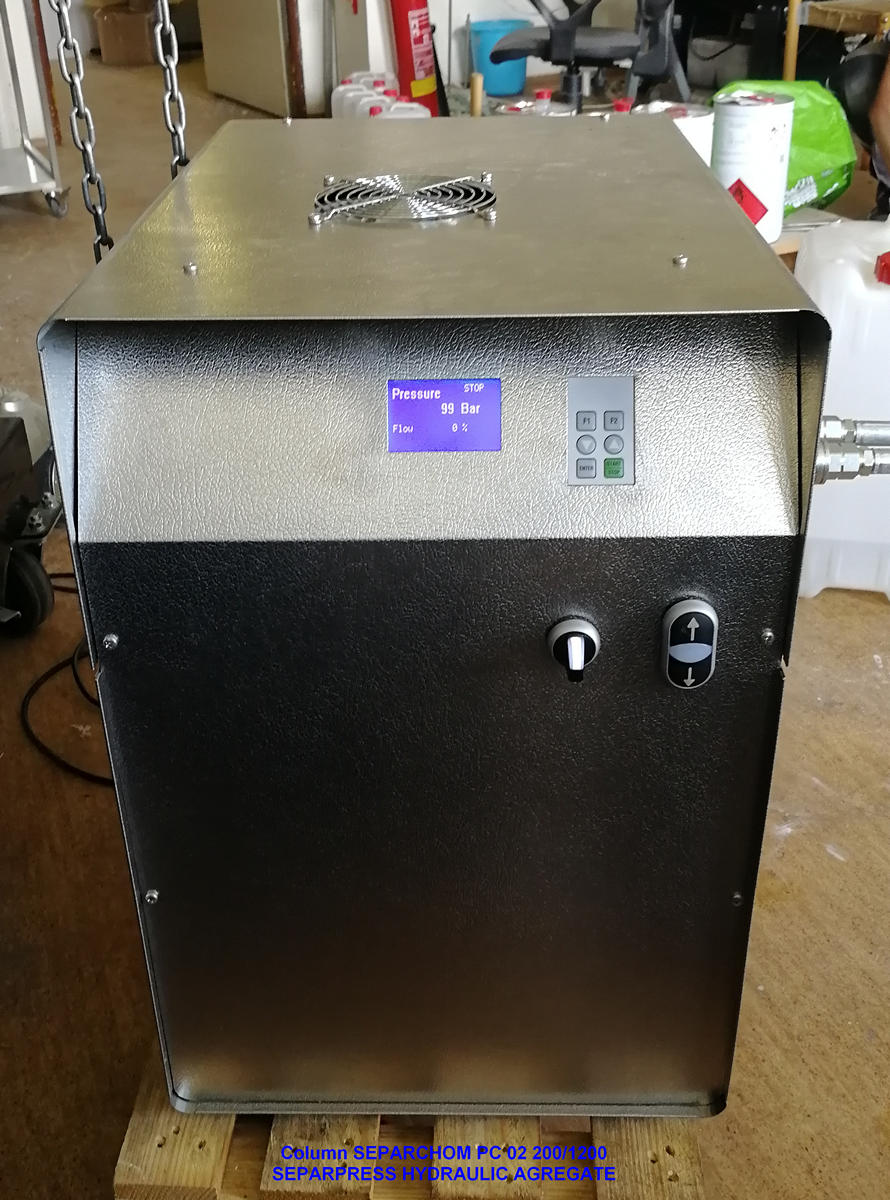

img do poznamky 14
SEPARCHROM PC02 200/1200 SEPARPRESS HYDRAULIC AGREGATE

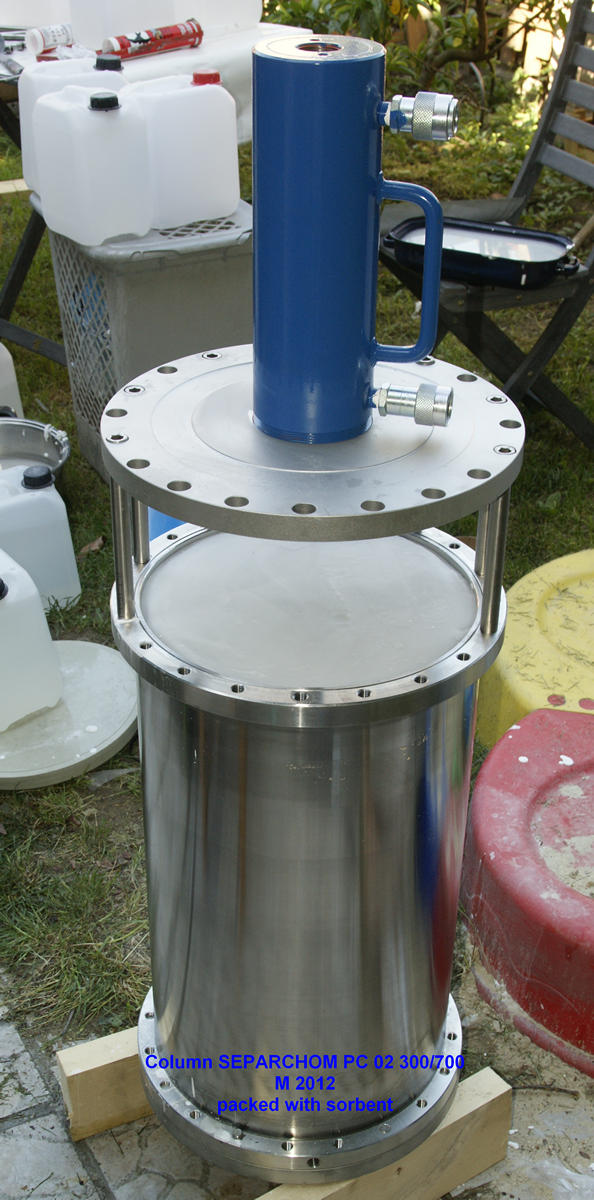

img do poznamky 15
SEPARCHROM PC02 300/700 PACKED WITH SORBENT
img do poznamky 16

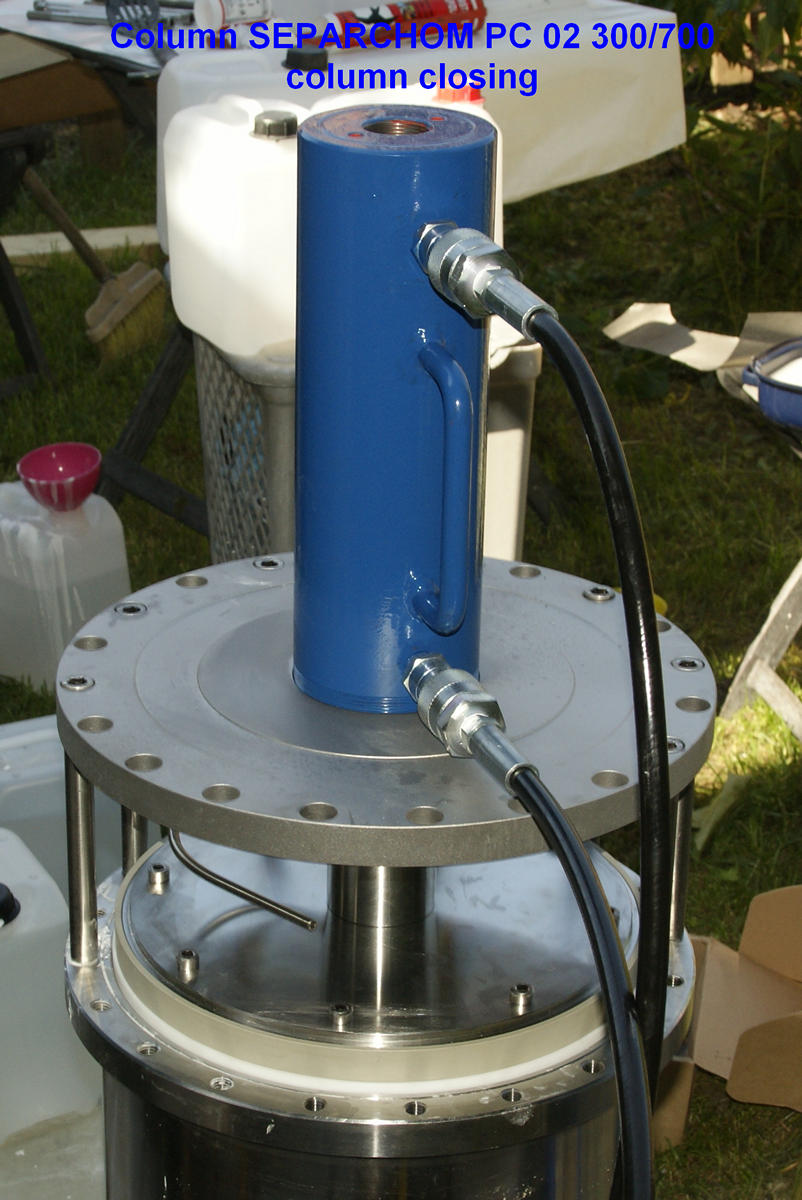

SEPARCHROM PC02 300/700 COLUMN CLOSING
img do poznamky 17

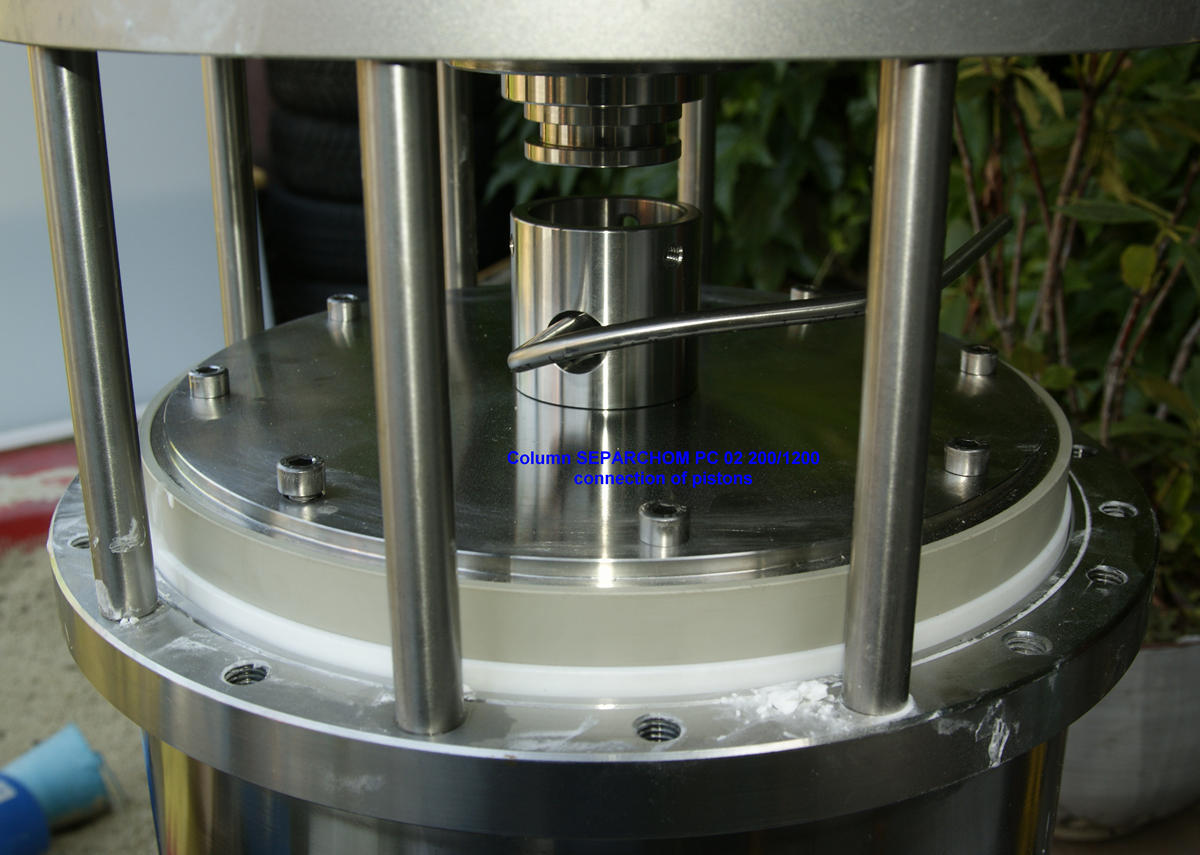

SEPARCHROM PC02 300/700 CONNECTION OF PISTONS
img do poznamky 18

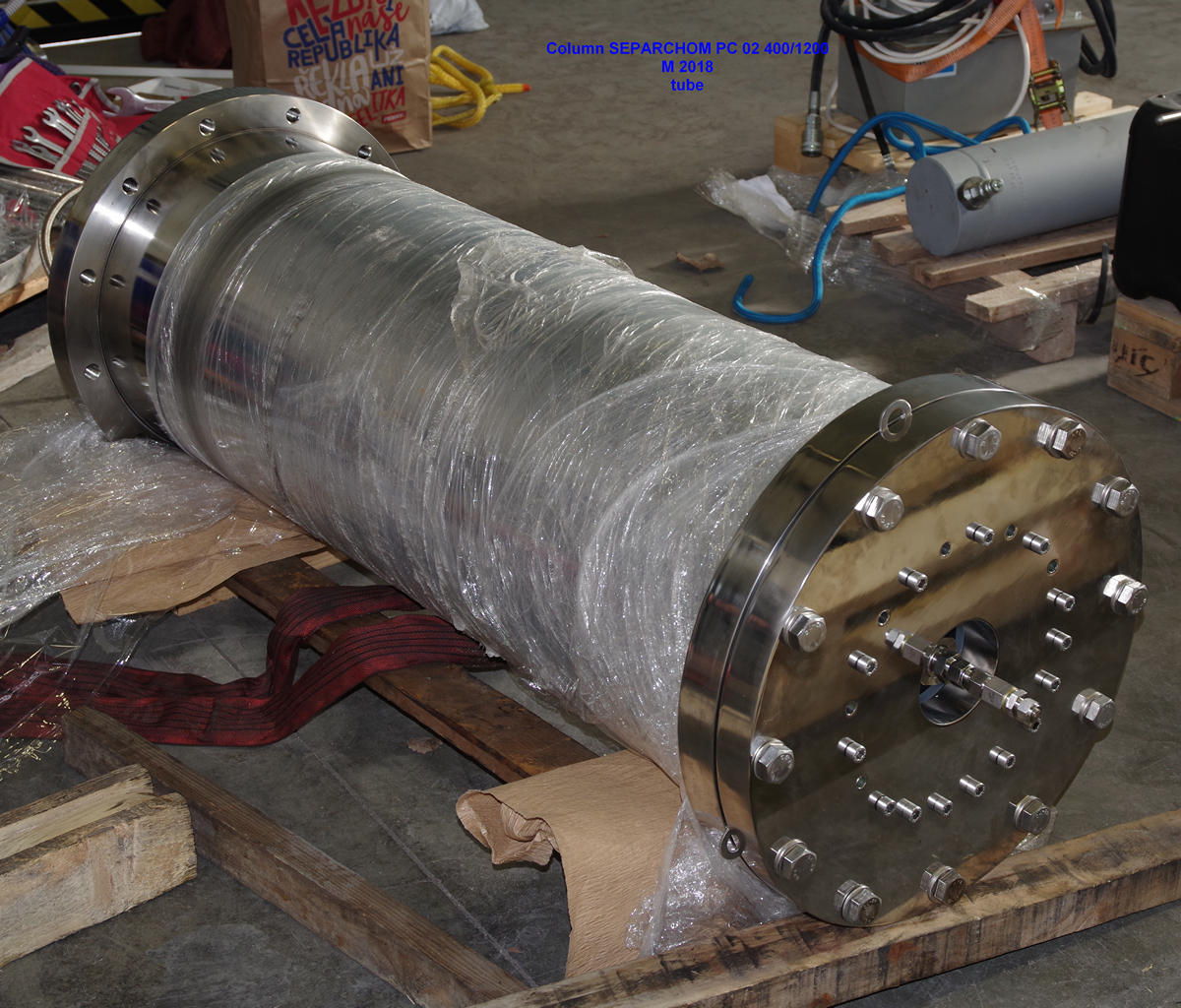

SEPARCHROM PC02 400/1200
img do poznamky 19

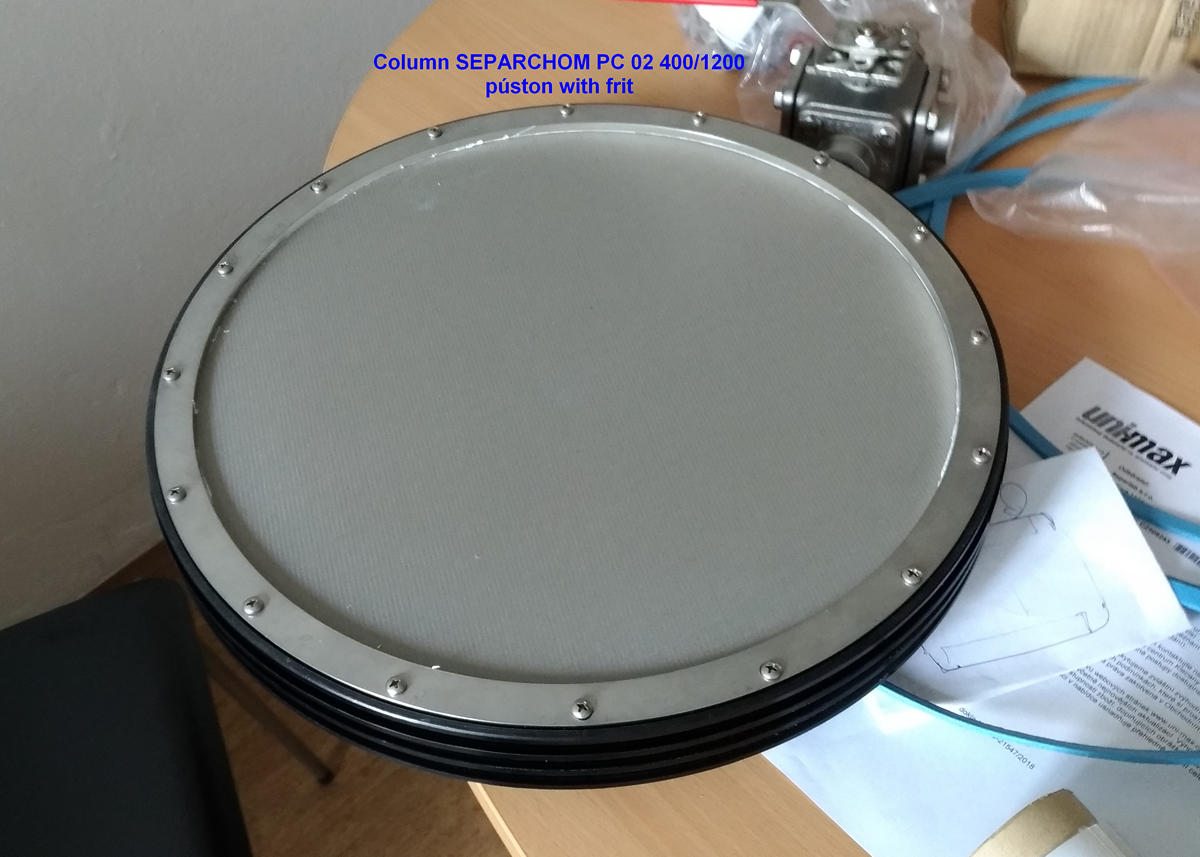

SEPARCHROM PC02 400/1200 PISTON WITH FRIT
img do poznamky 20

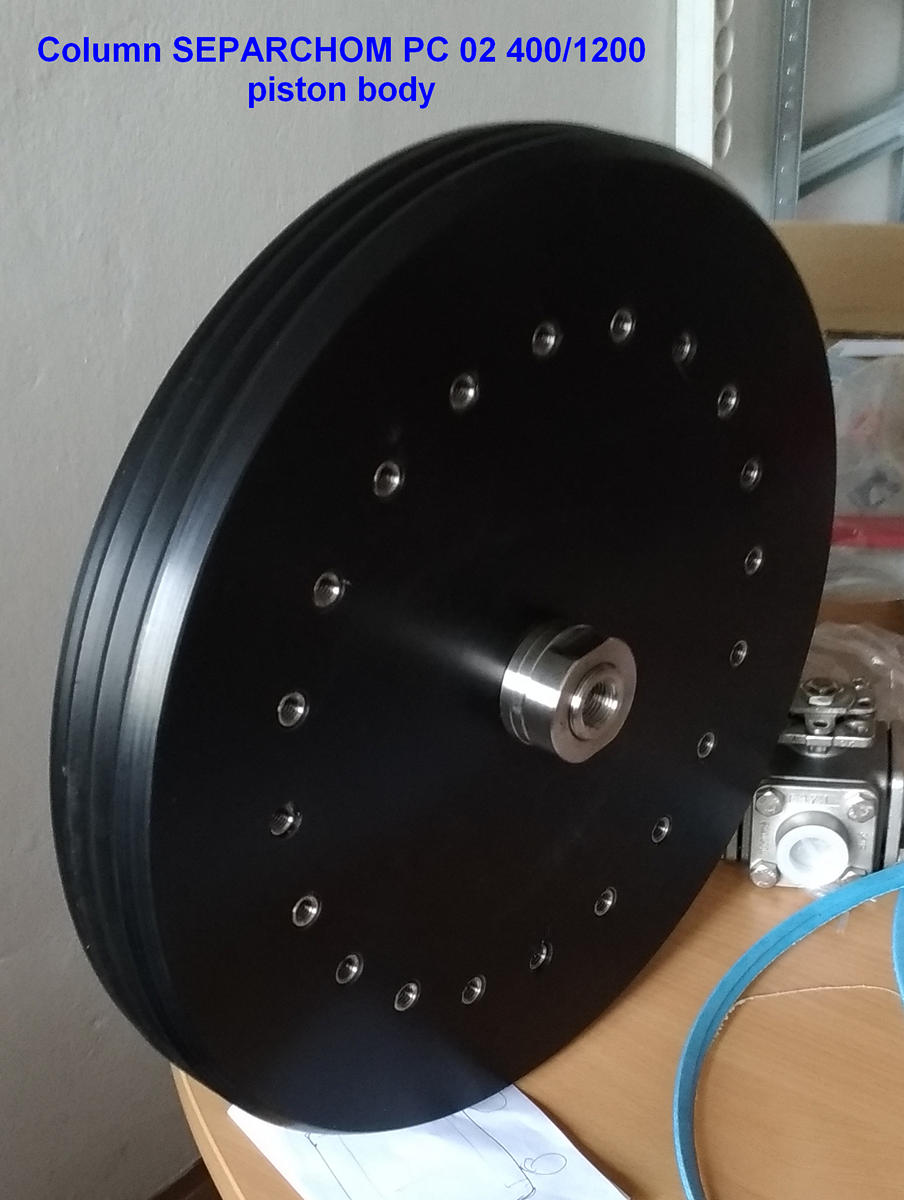

SEPARCHROM PC02 400/1200 PISTON BODY
img do poznamky 21

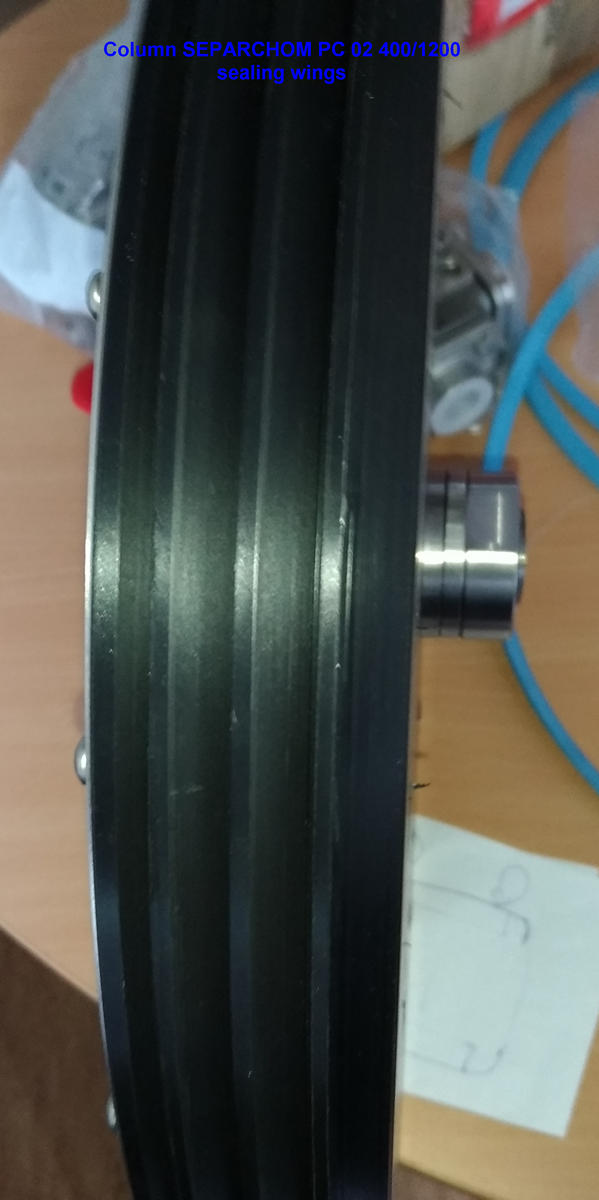

SEPARCHROM PC02 400/1200 SEALING WINGS
img do poznamky 22

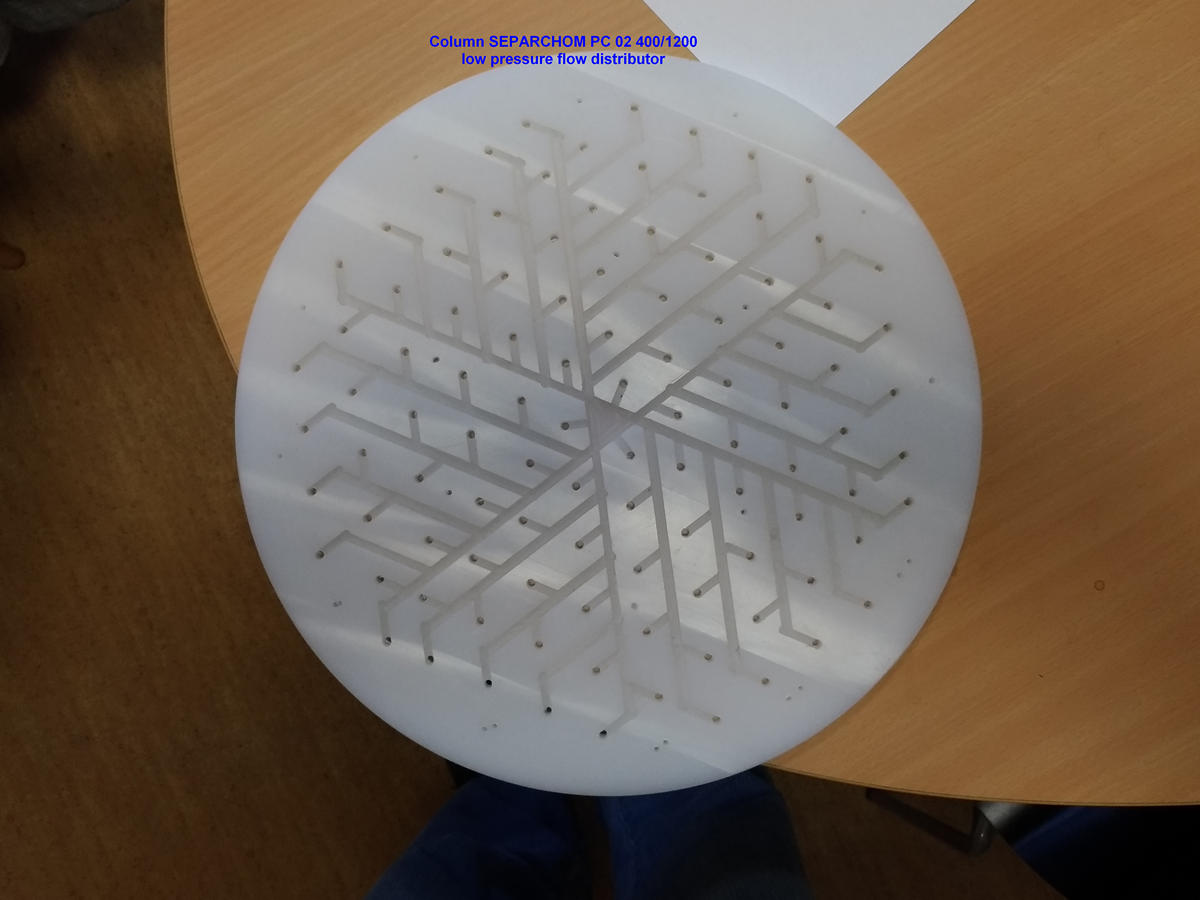

SEPARCHROM PC02 400/1200 LOW PRESSURE FLOW DISTRIBUTOR
img do poznamky 23

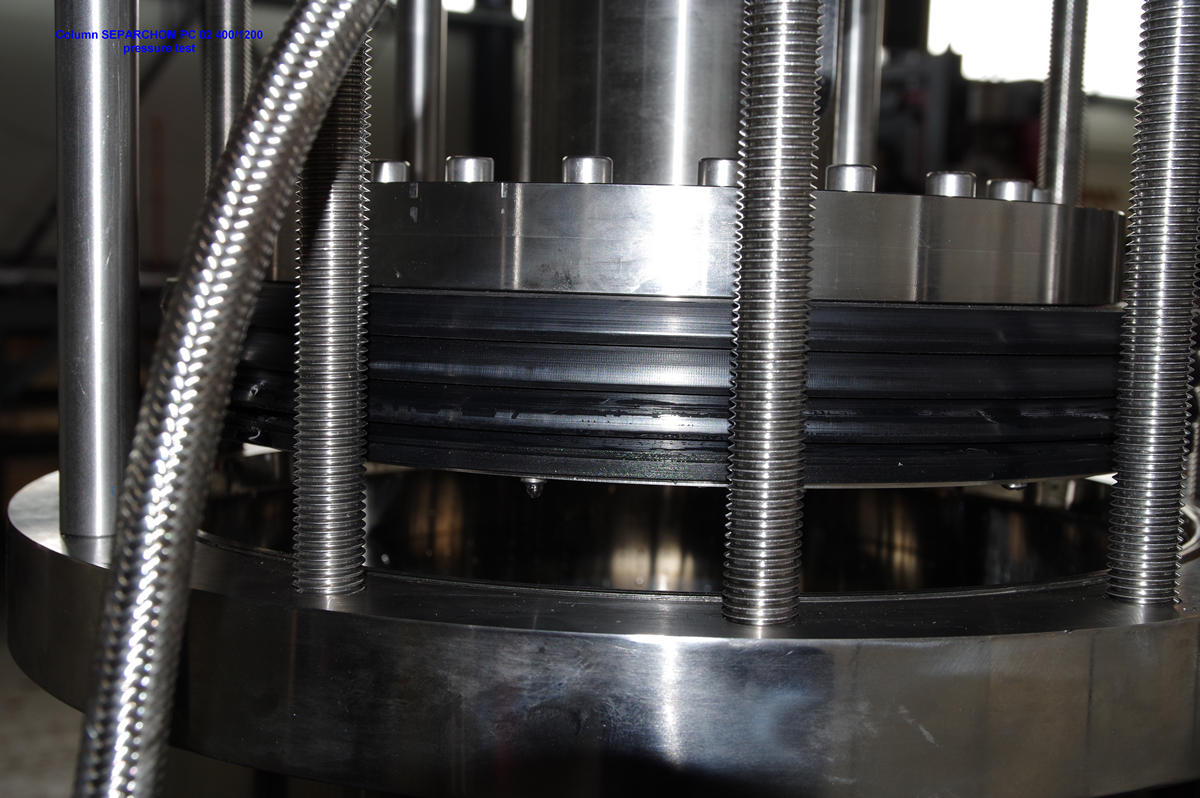

SEPARCHROM PC02 400/1200 PRESSURE TEST
img do poznamky 24
SEPARCHROM PC02 400/1200 PRESSURE TEST 2
img do poznamky 25

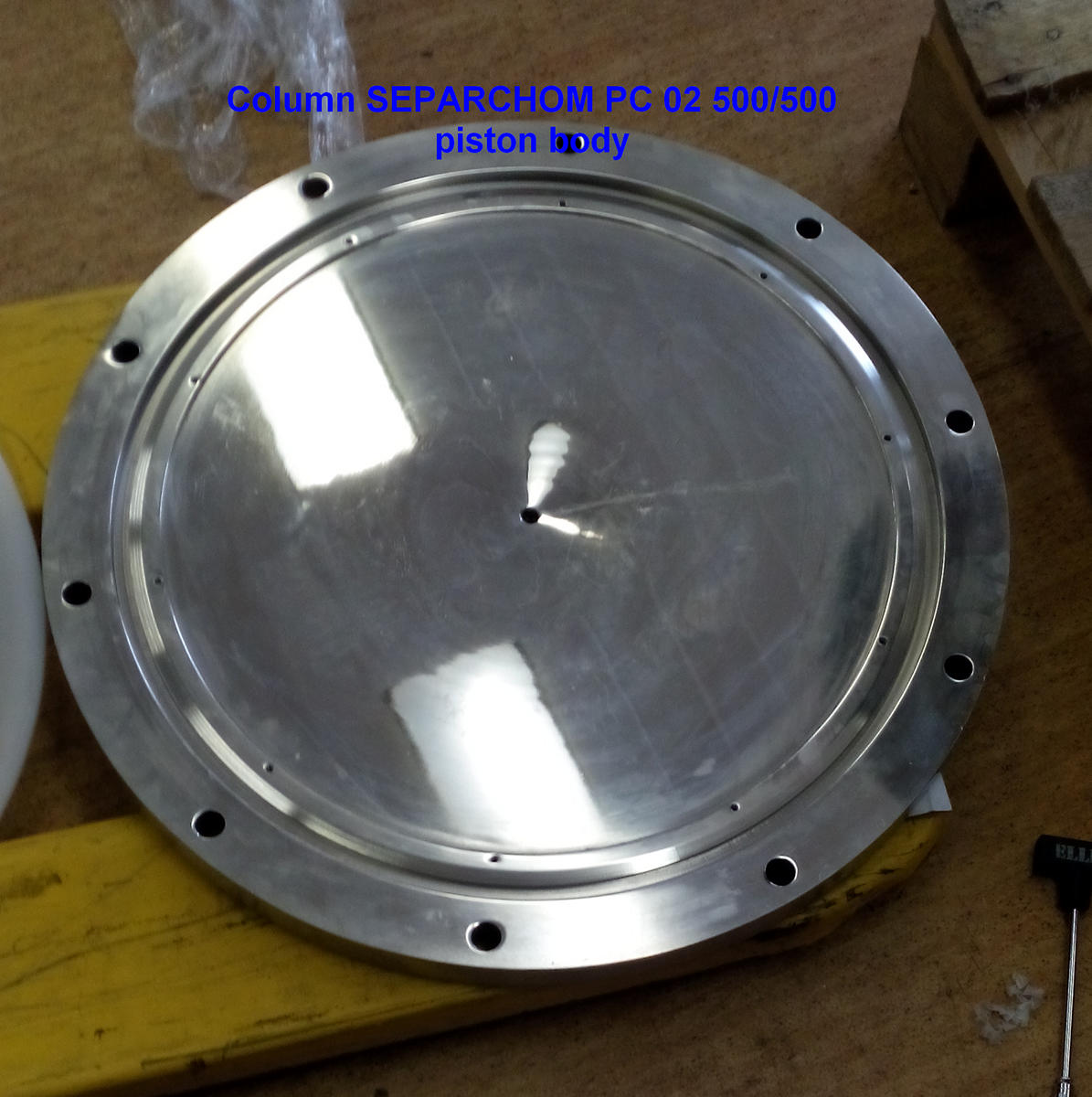

SEPARCHROM PC02 500/500 PISTON BODY

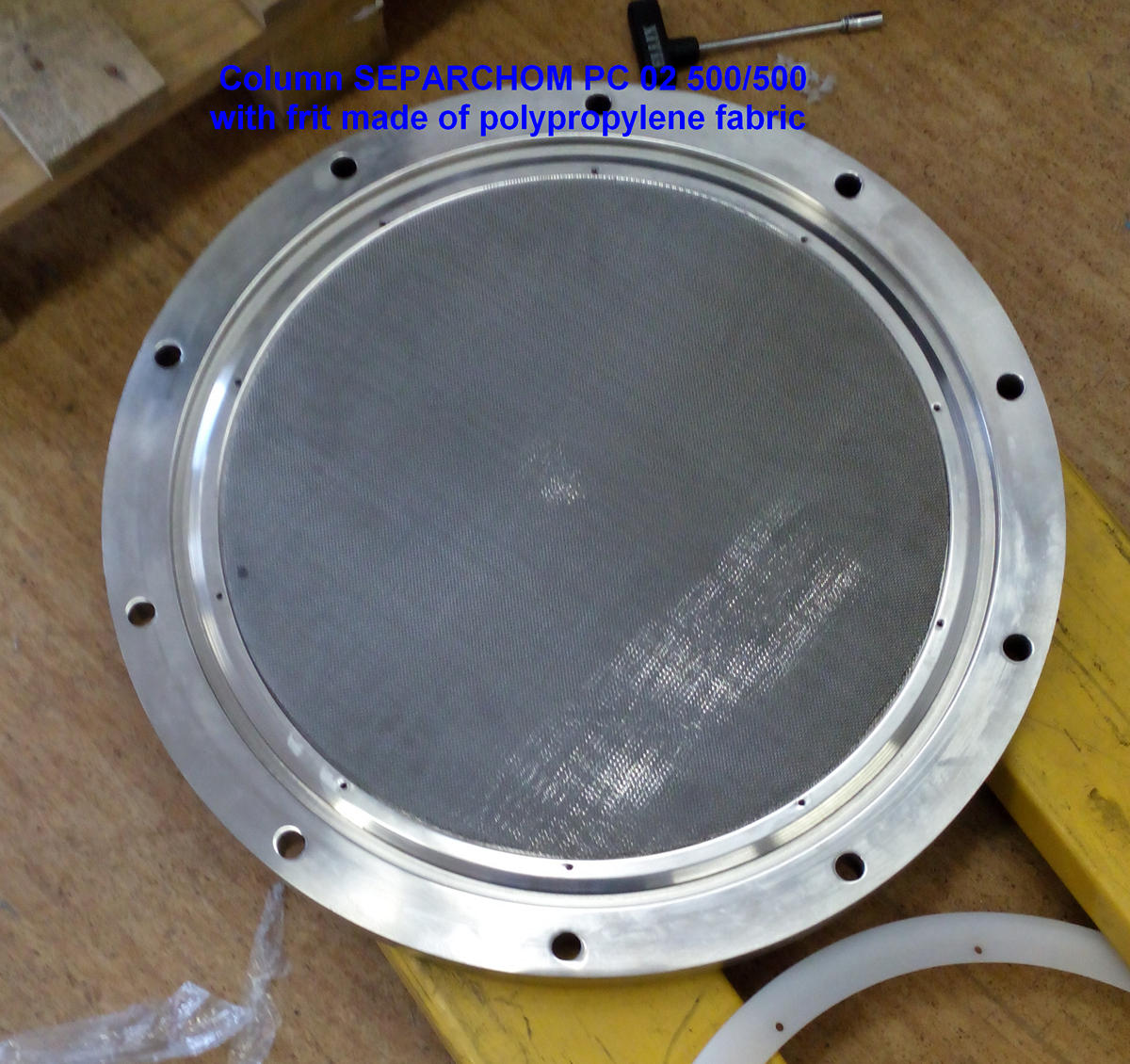

img do poznamky 26

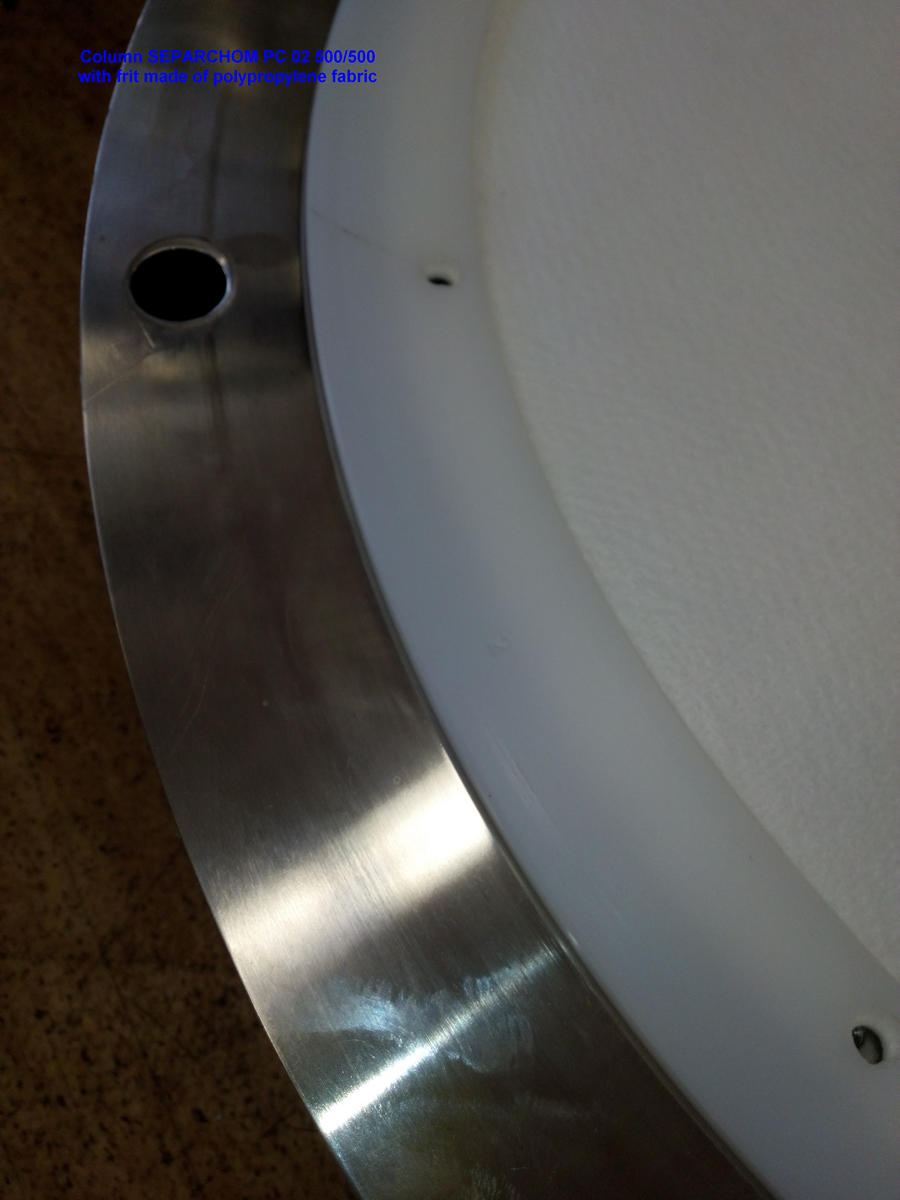

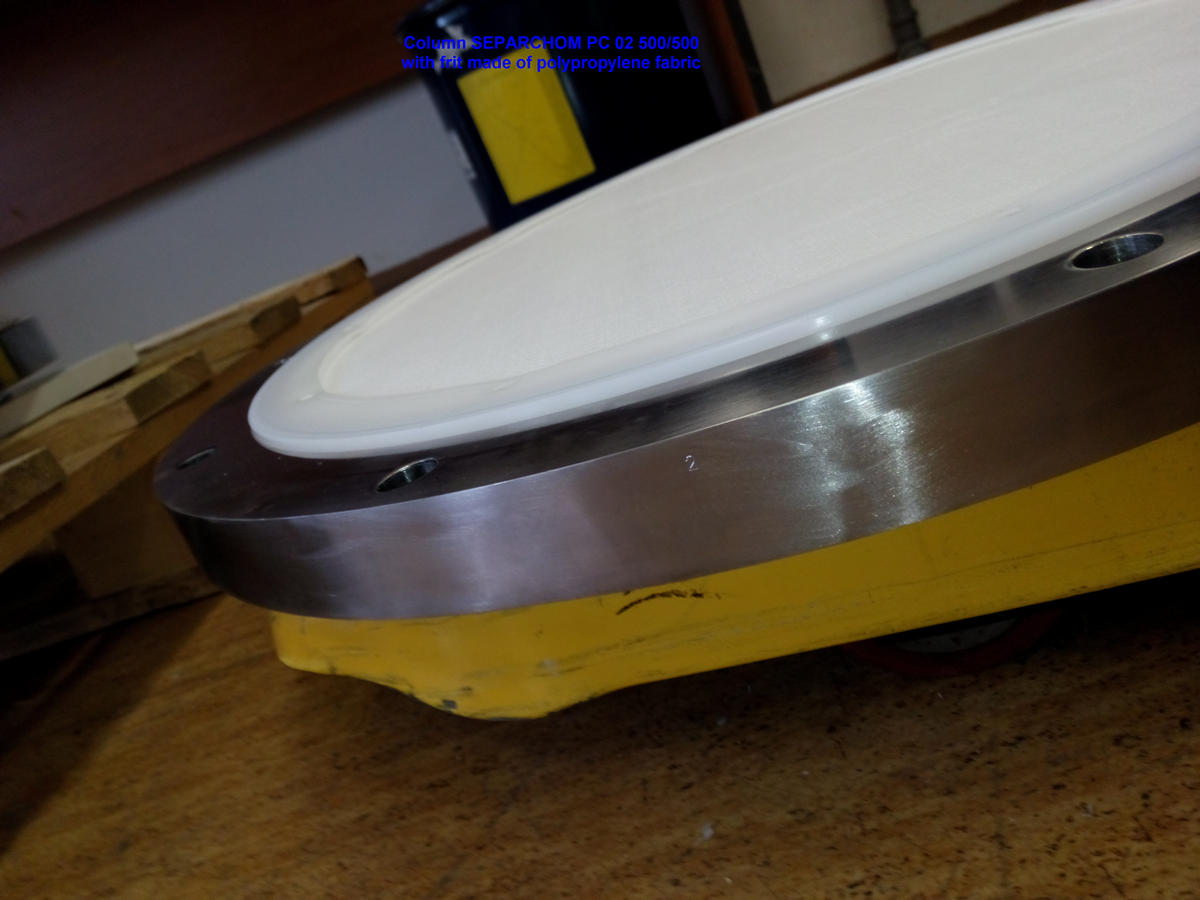

SEPARCHROM PC02 500/500 WITH FRIT MADE OF POLYPROPYLENE FABRIC
img do poznamky 27
SEPARCHROM PC02 500/500 WITH FRIT MADE OF POLYPROPYLENE FABRIC 2
img do poznamky 28
SEPARCHROM PC02 500/500 WITH FRIT MADE OF POLYPROPYLENE FABRIC 3
img do poznamky 29

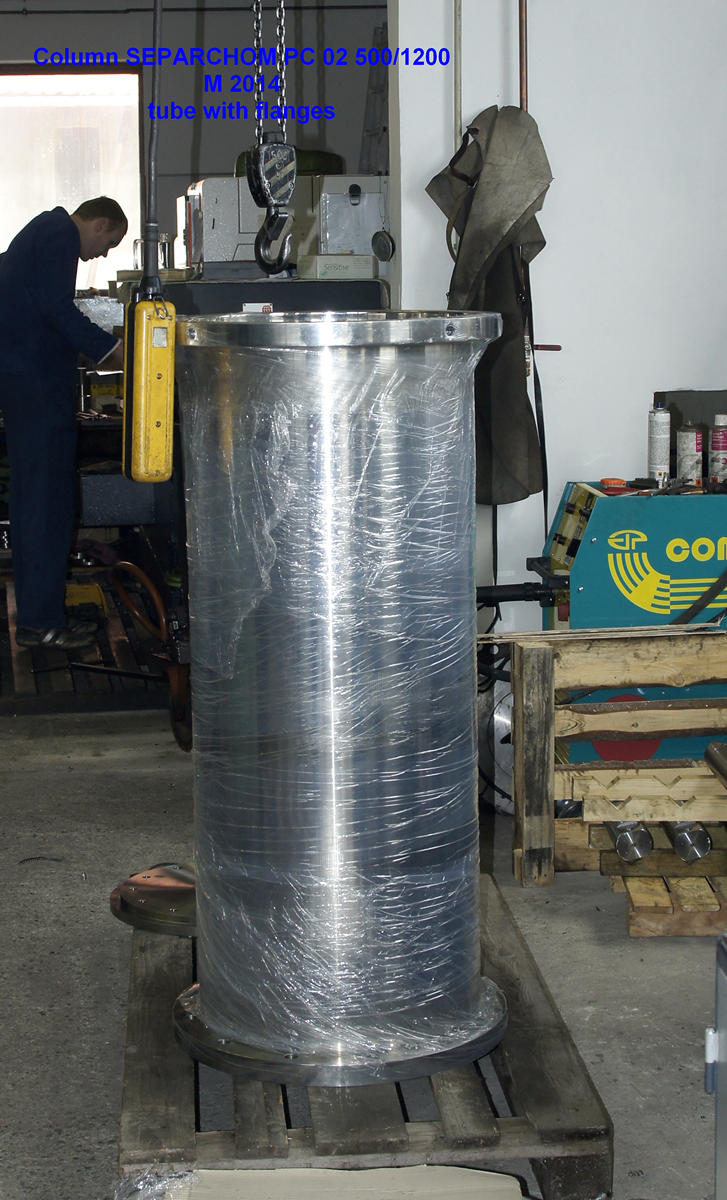

SEPARCHROM PC02 500/1200 TUBE WITH FLANGES
img do poznamky 30

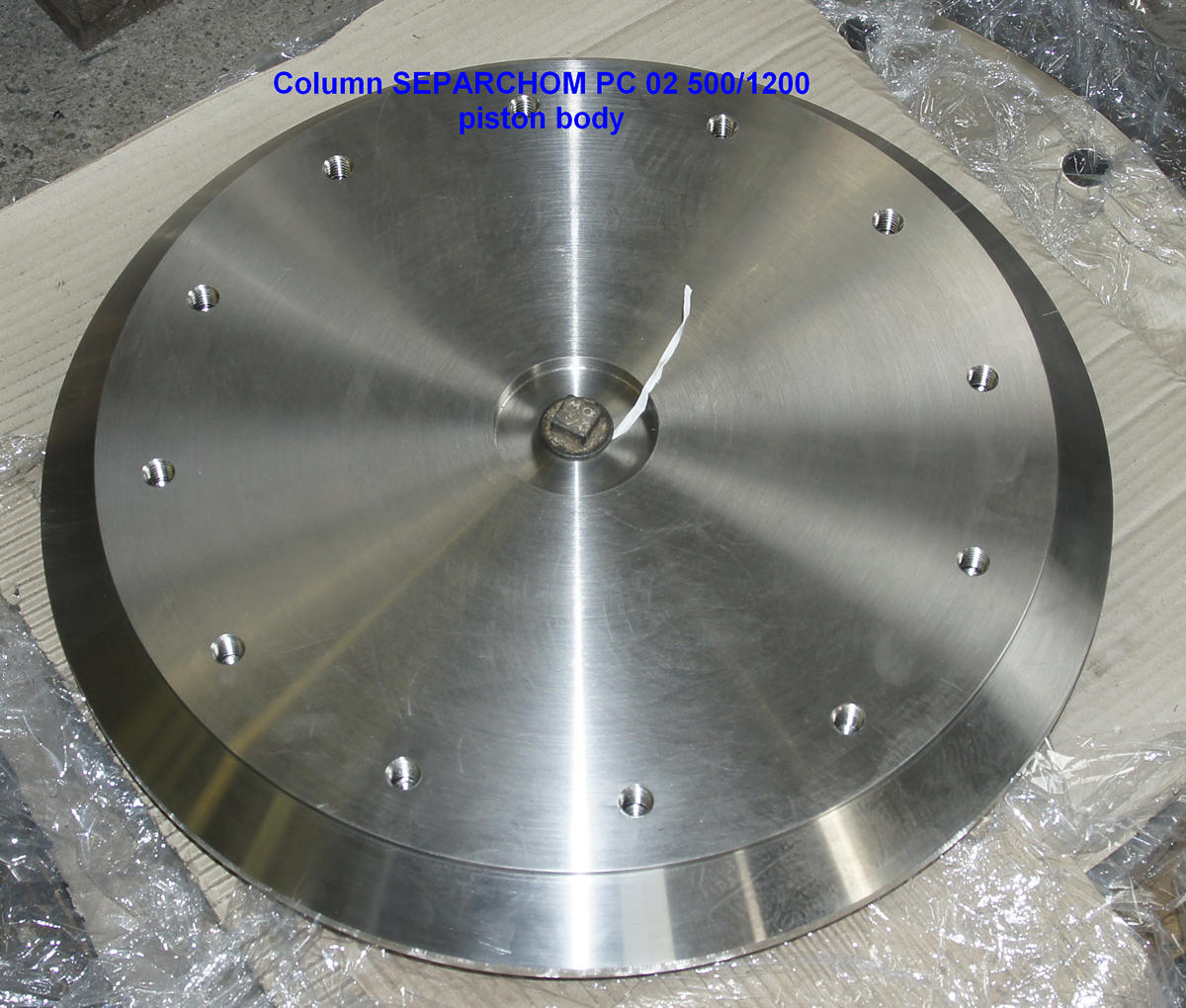

SEPARCHROM PC02 500/1200 PISTON BODY
img do poznamky 31

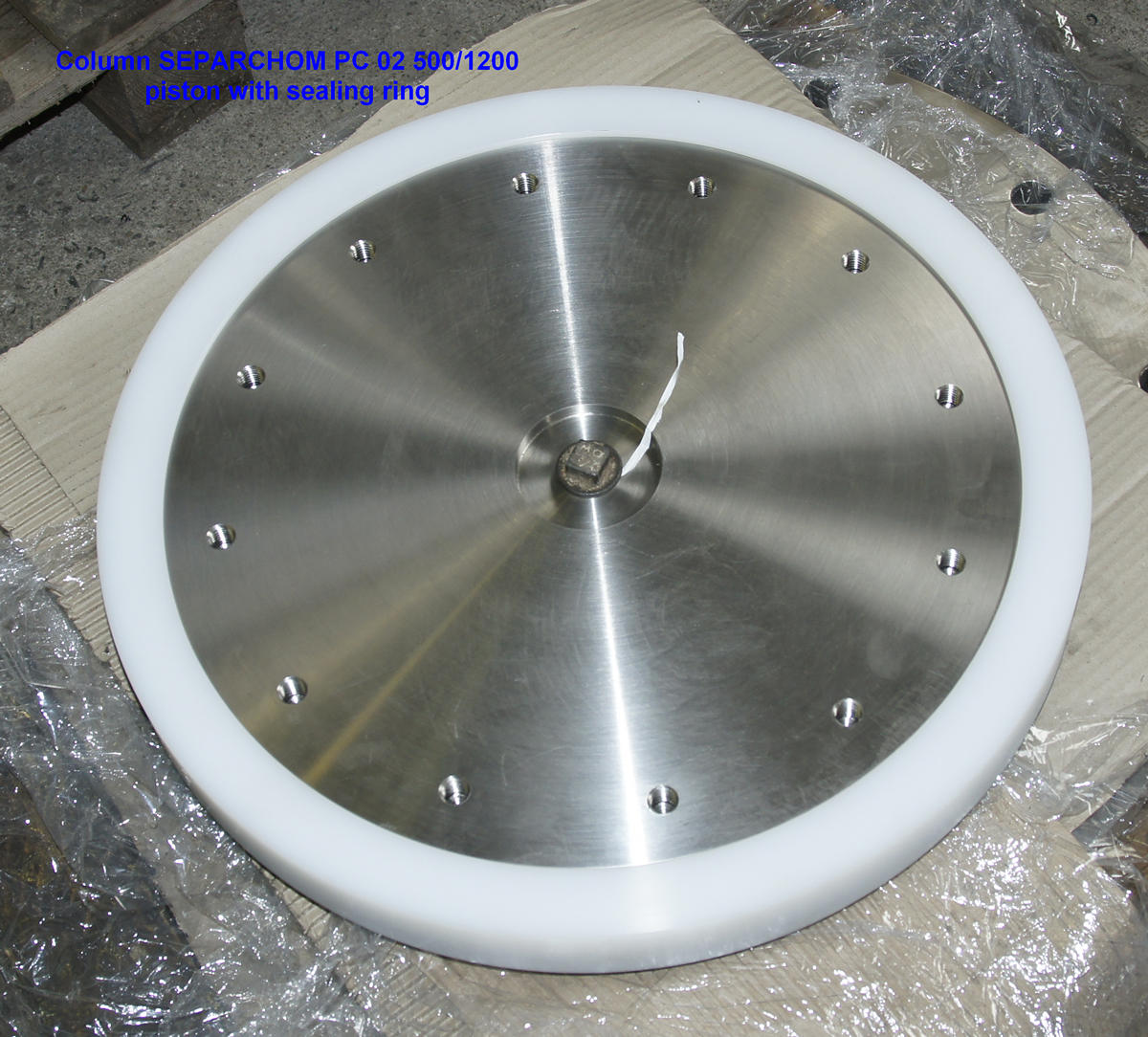

SEPARCHROM PC02 500/1200 PISTON WITH SEALING RING
img do poznamky 32

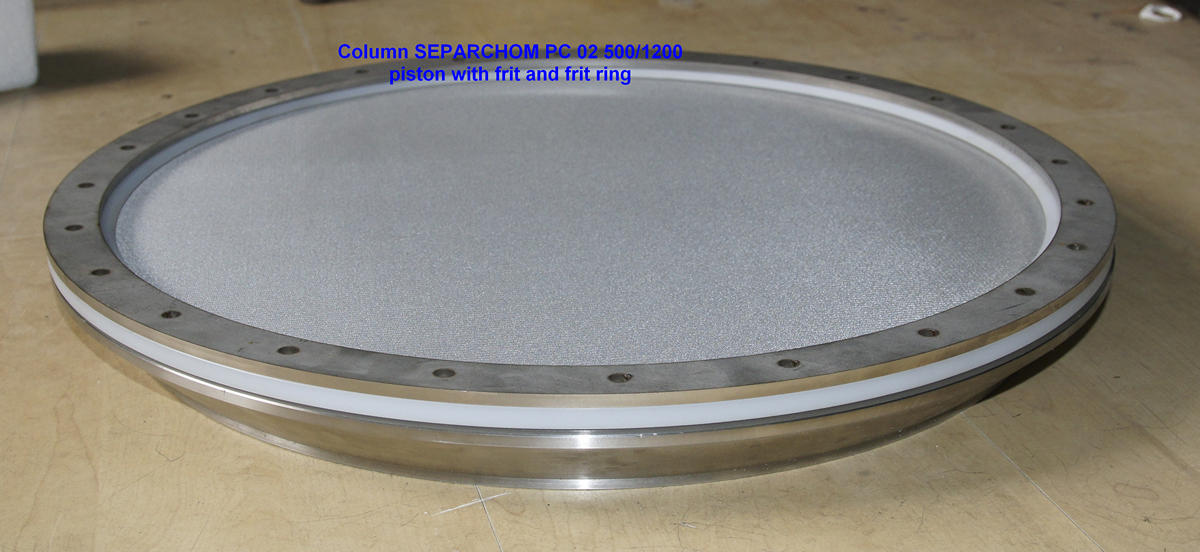

SEPARCHROM PC02 500/1200 PISTON WITH FRIT AND FRIT RING
img do poznamky 33

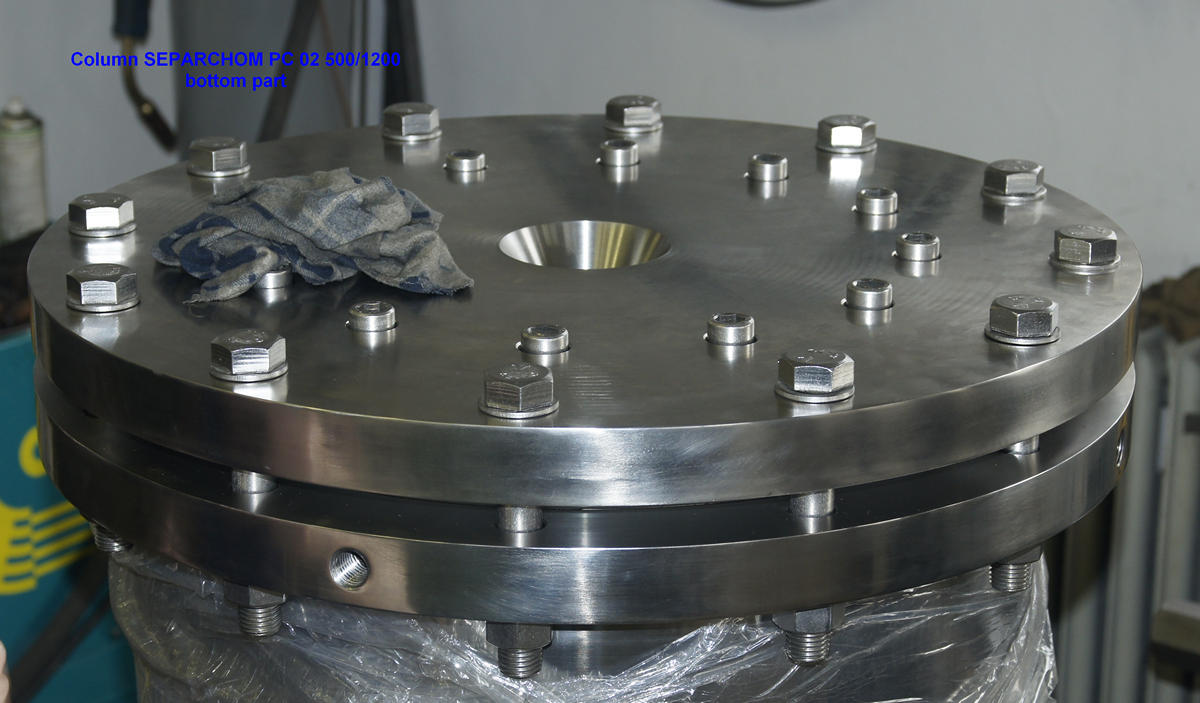

SEPARCHROM PC02 500/1200 BOTTOM PART

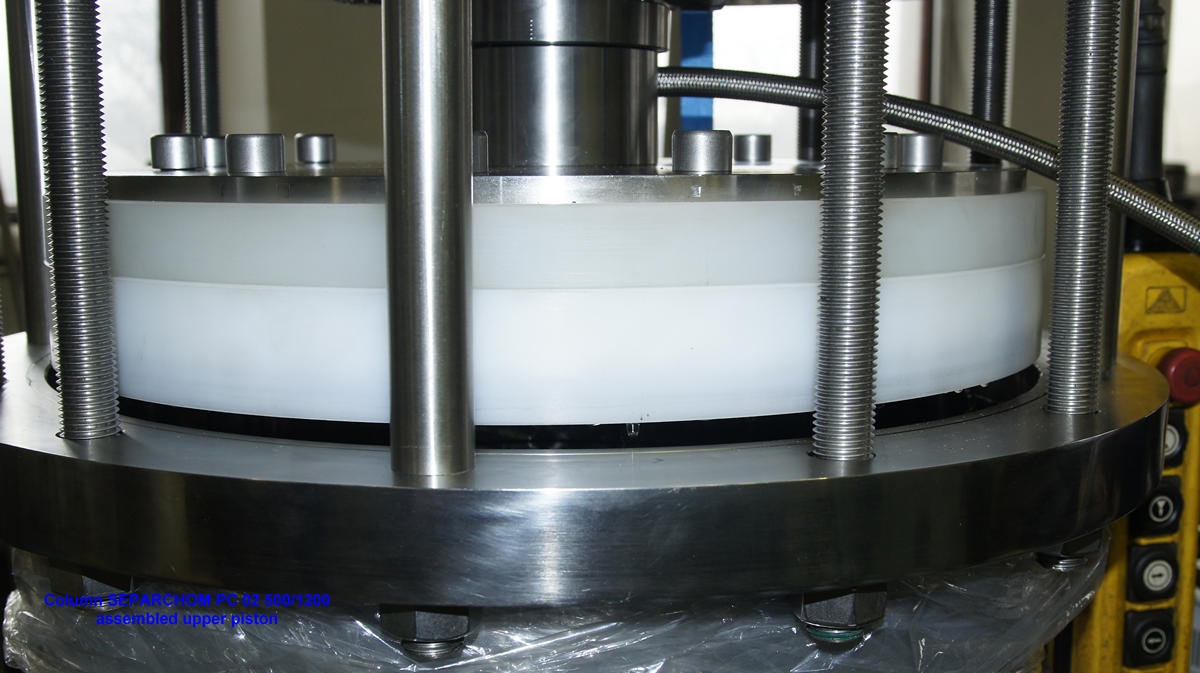

img do poznamky 34
SEPARCHROM PC02 500/1200 ASSEMBLED UPPER PISTON
img do poznamky 35

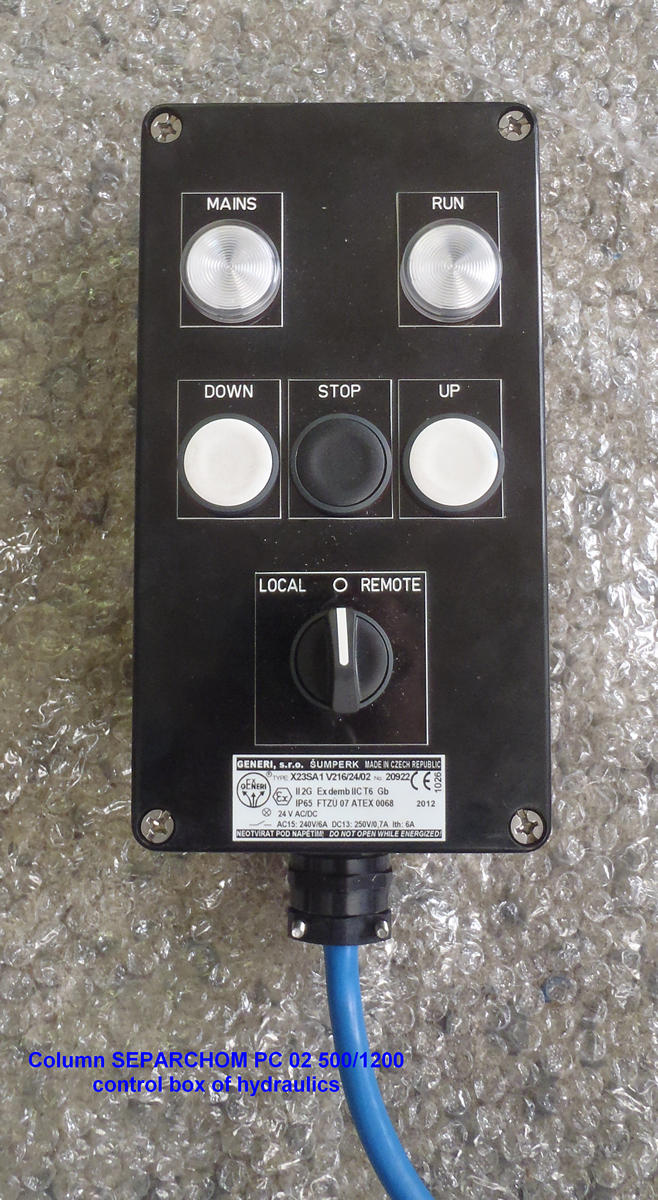

SEPARCHROM PC02 500/1200 CONTROL BOX OF HYDRAULICS

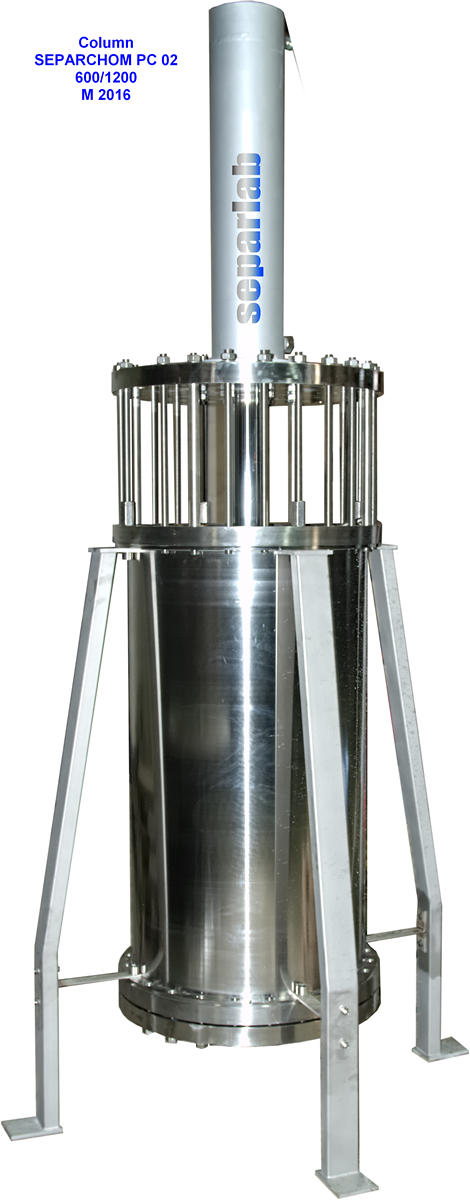

img do poznamky 36
SEPARCHROM PC02 600/1200
img do poznamky 37

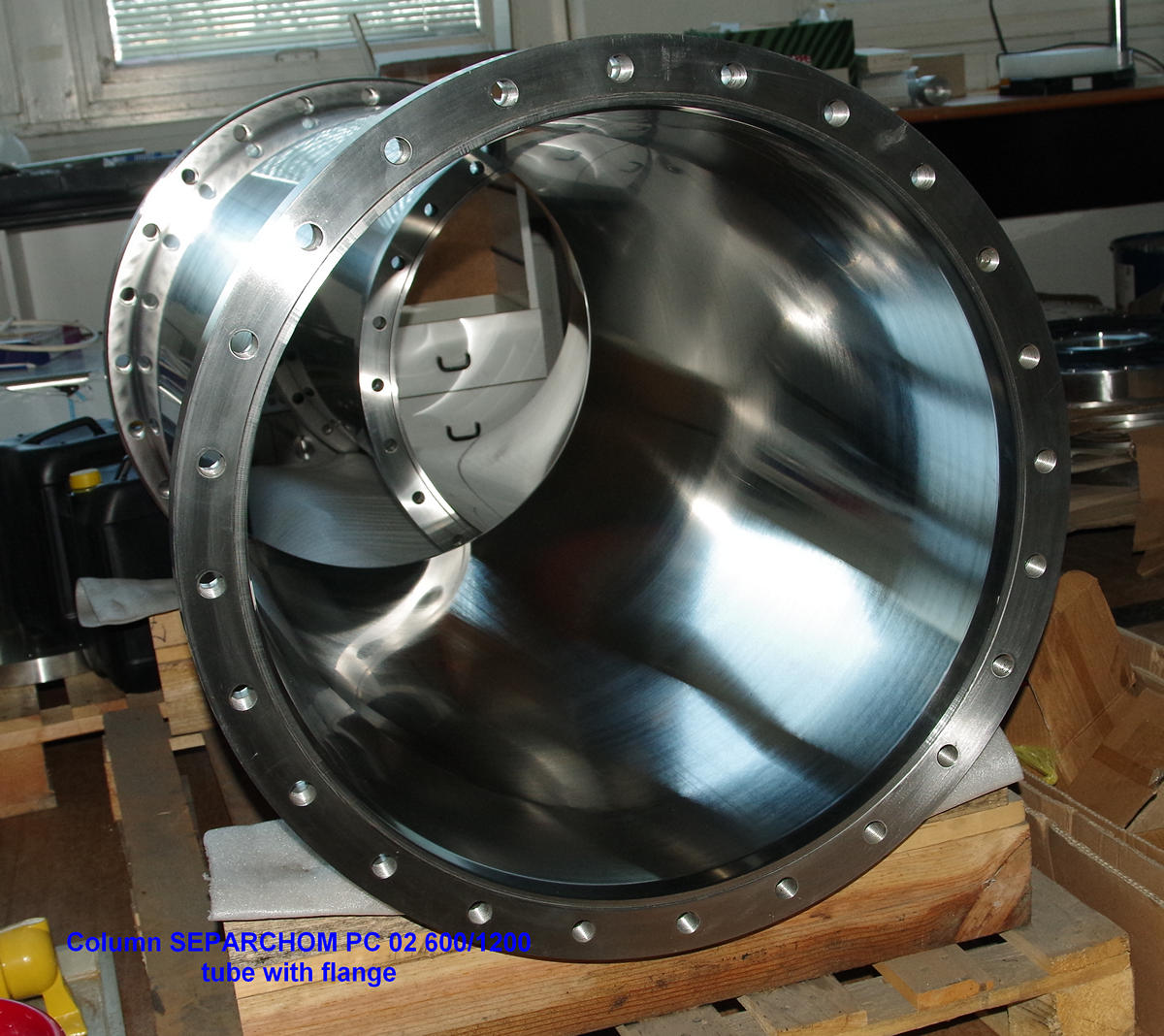

SEPARCHROM PC02 600/1200 TUBE WITH FLANGE
img do poznamky 38

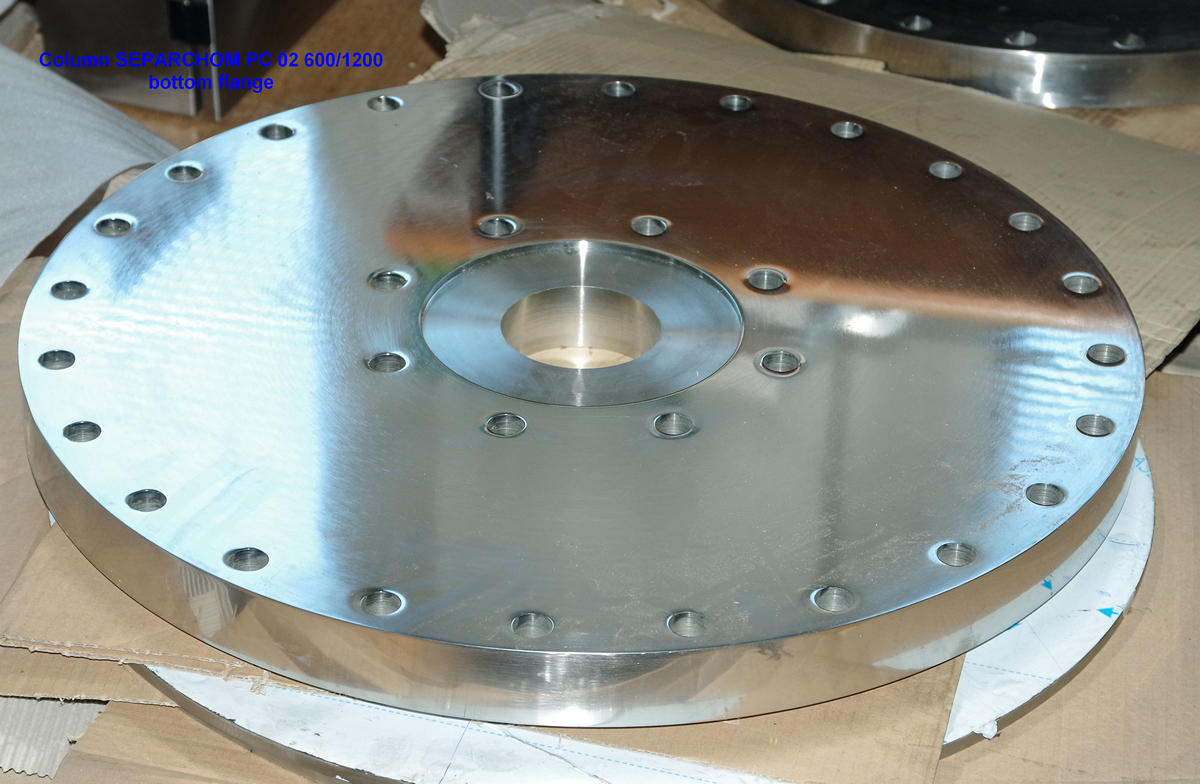

SEPARCHROM PC02 600/1200 BOTTOM FLANGE

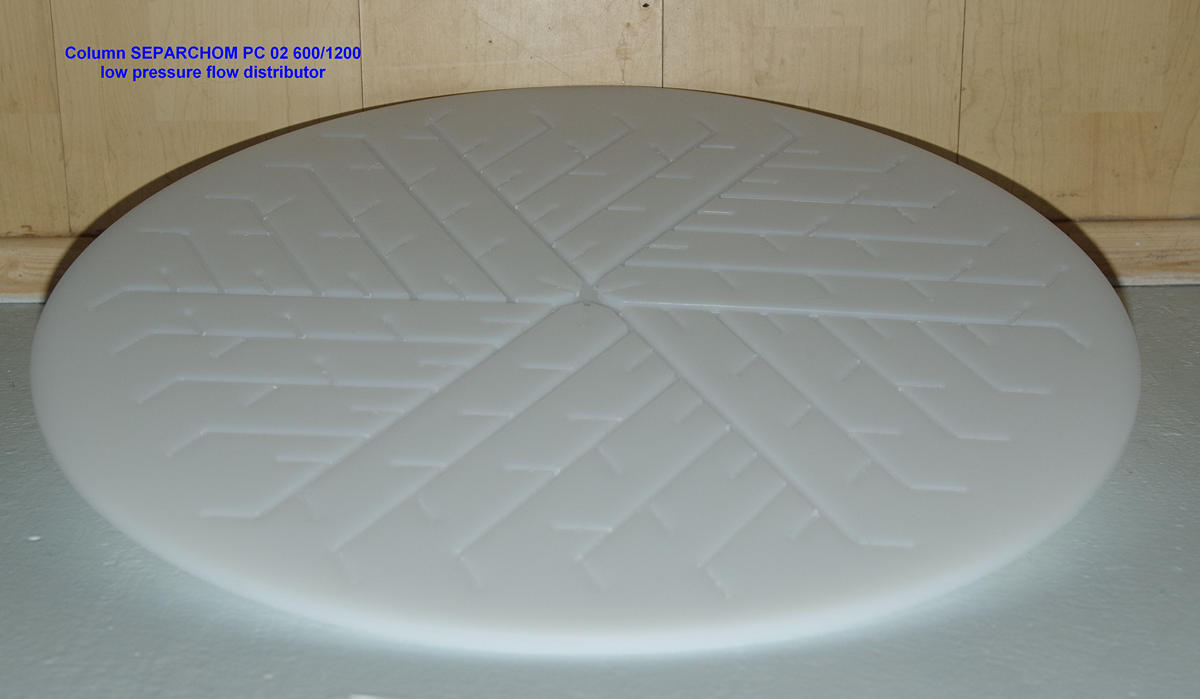

img do poznamky 39
SEPARCHROM PC02 600/1200 LOW PRESSURE FLOW DISTRIBUTOR
img do poznamky 40

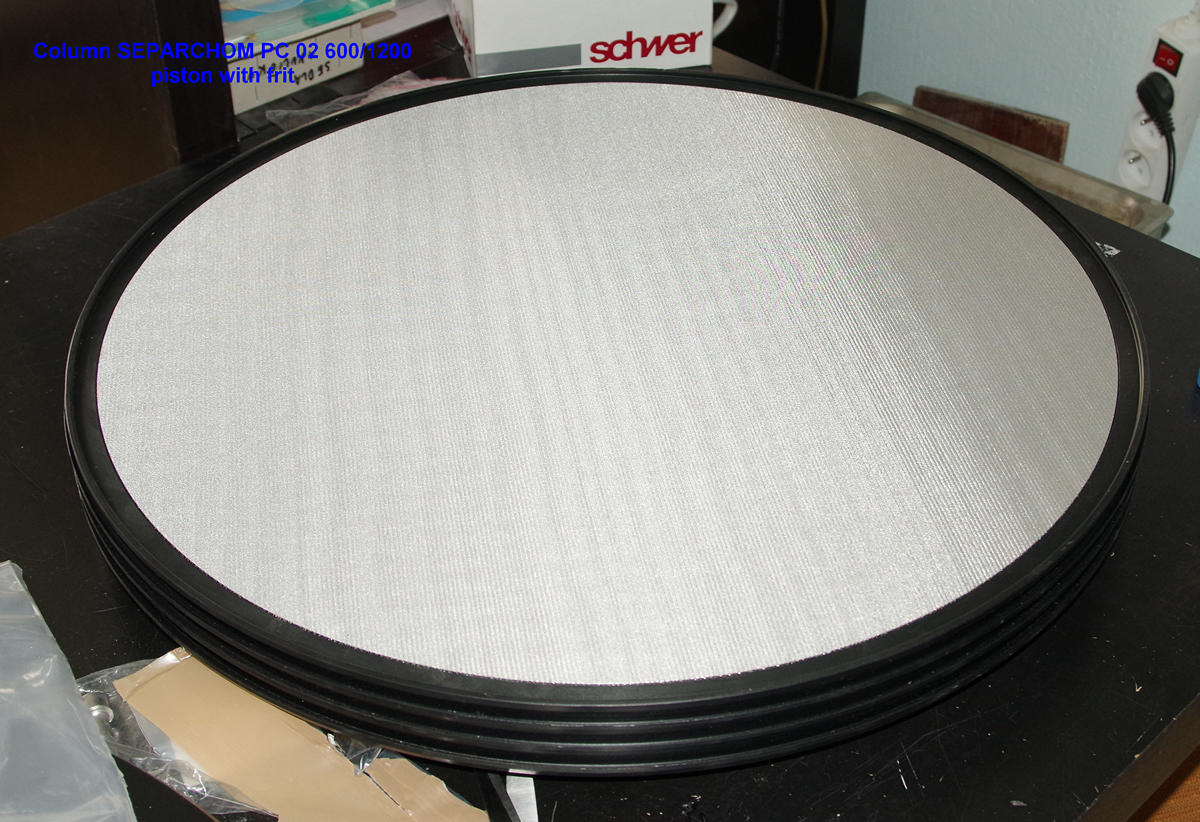

SEPARCHROM PC02 600/1200 PISTON WITH FRIT
img do poznamky 41

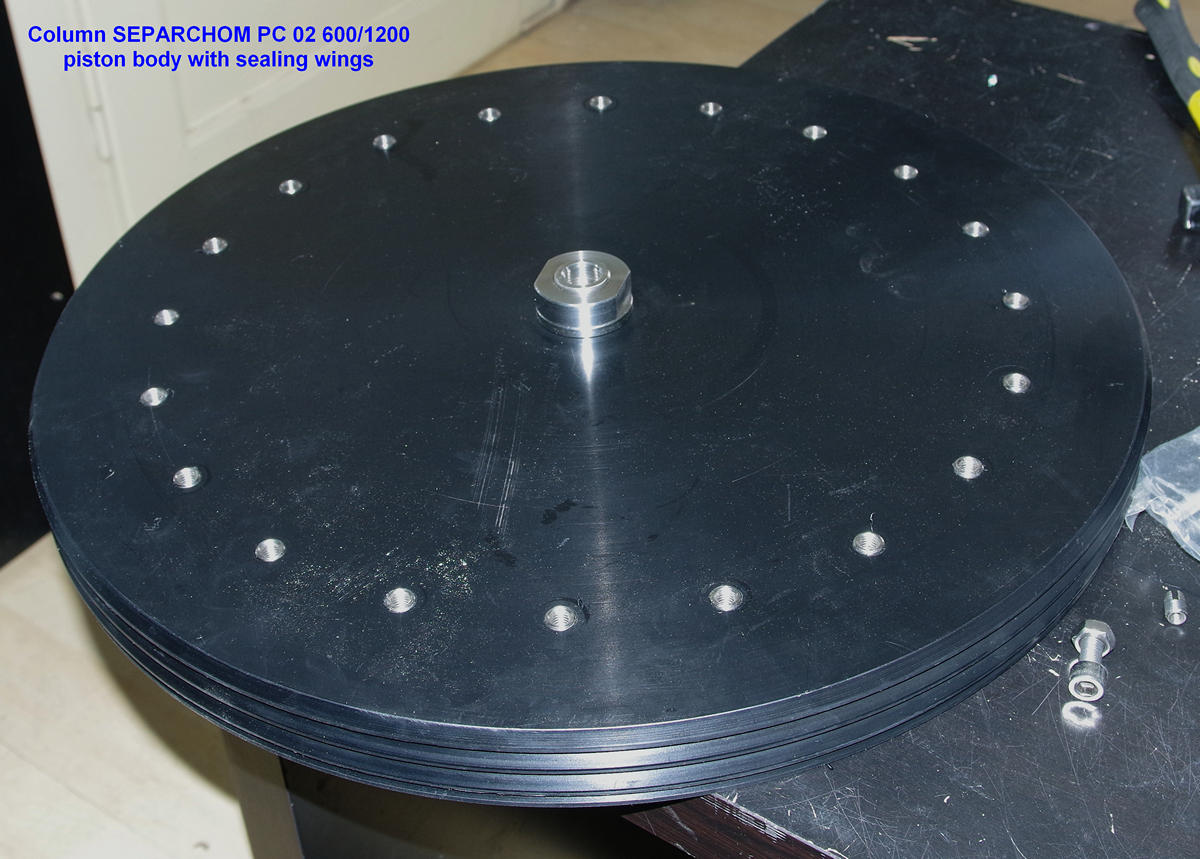

SEPARCHROM PC02 600/1200 PISTON BODY WITH SEALING RINGS
img do poznamky 42

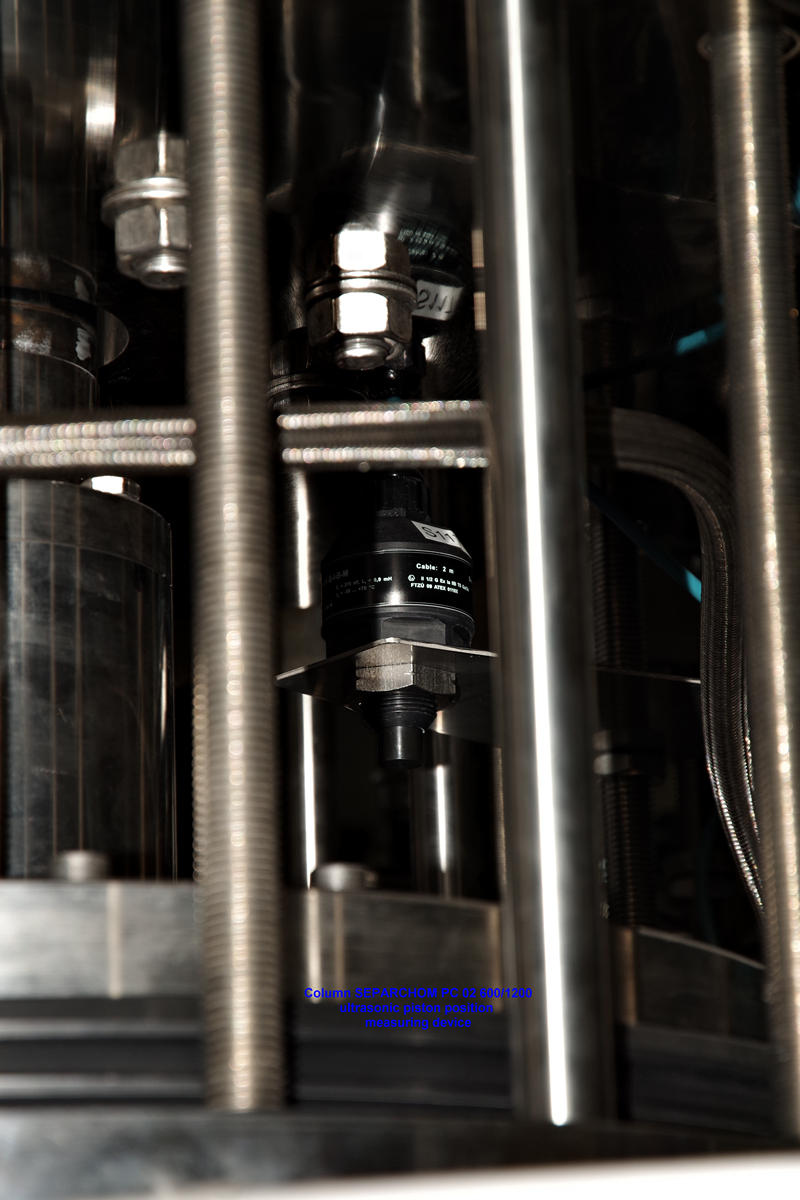

SEPARCHROM PC02 600/1200 ULTRASONIC PISTON POSITION MEASURING DEVICE
img do poznamky 43

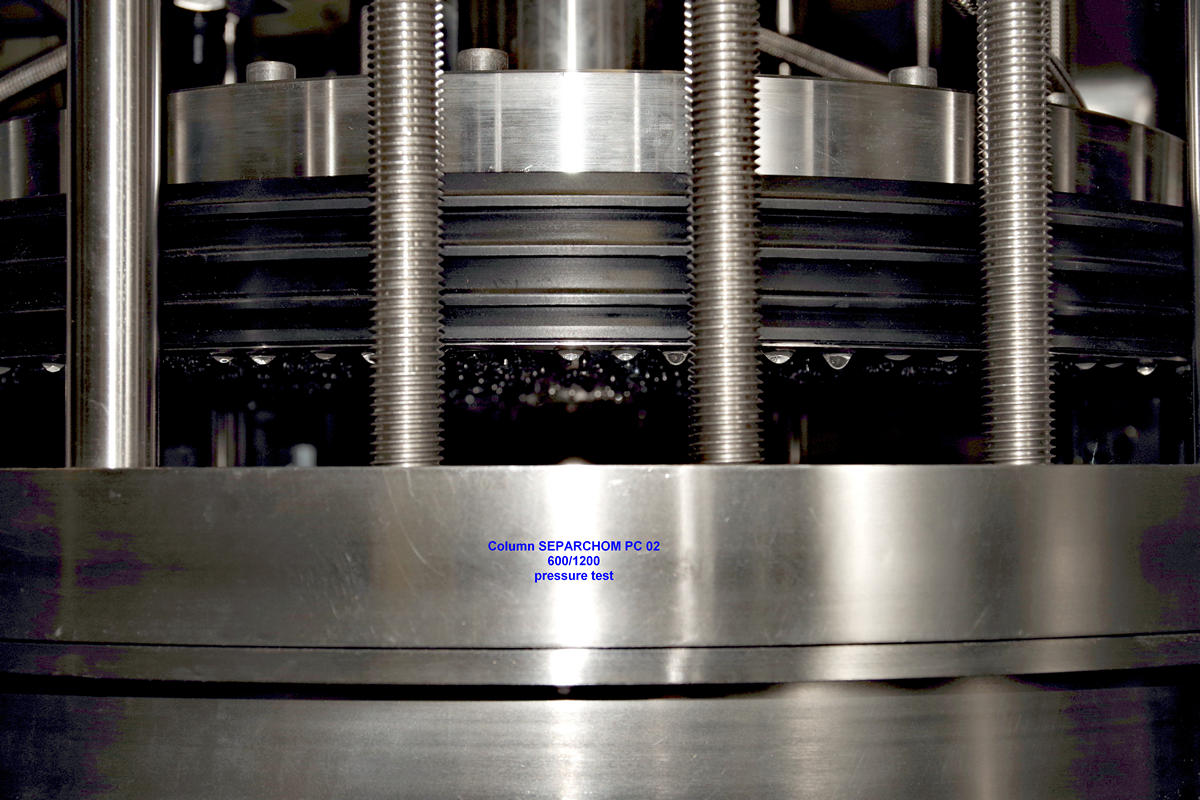

SEPARCHROM PC02 600/1200 PRESSURE TEST
img do poznamky 44

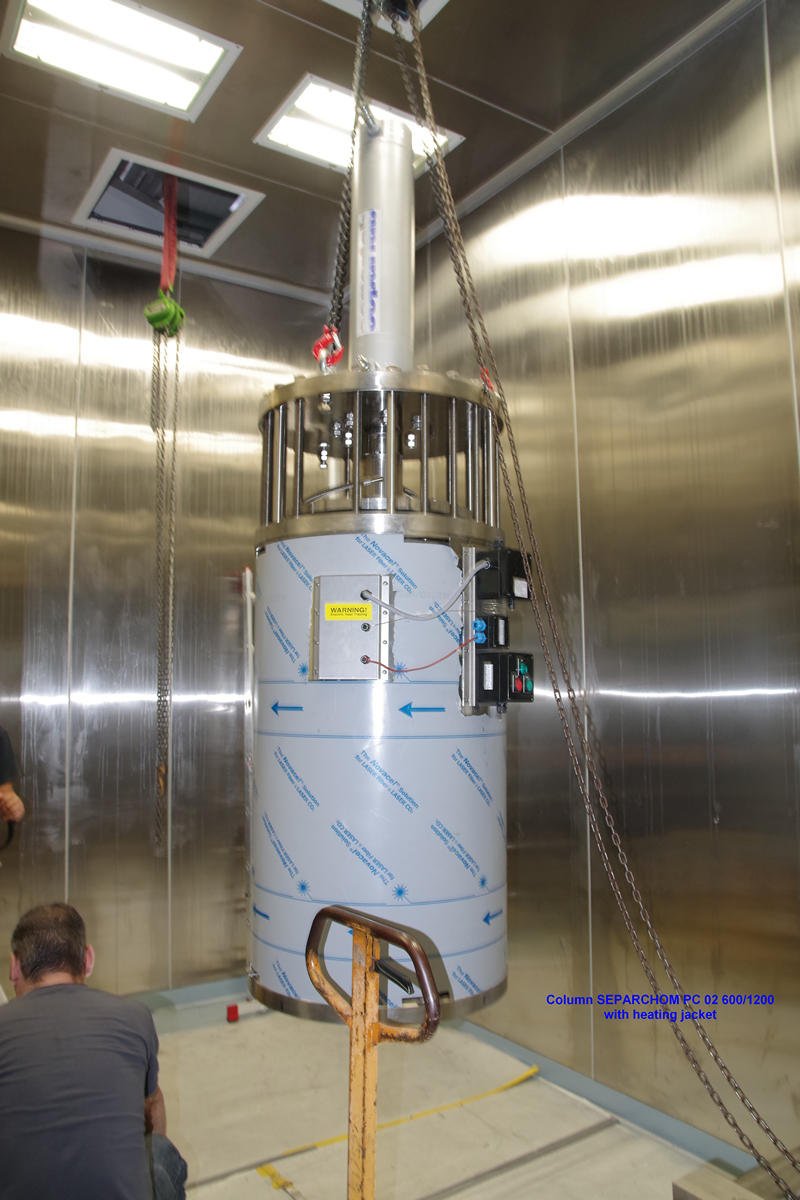

SEPARCHROM PC02 600/1200 WITH HEATING JACKET
img do poznamky 45

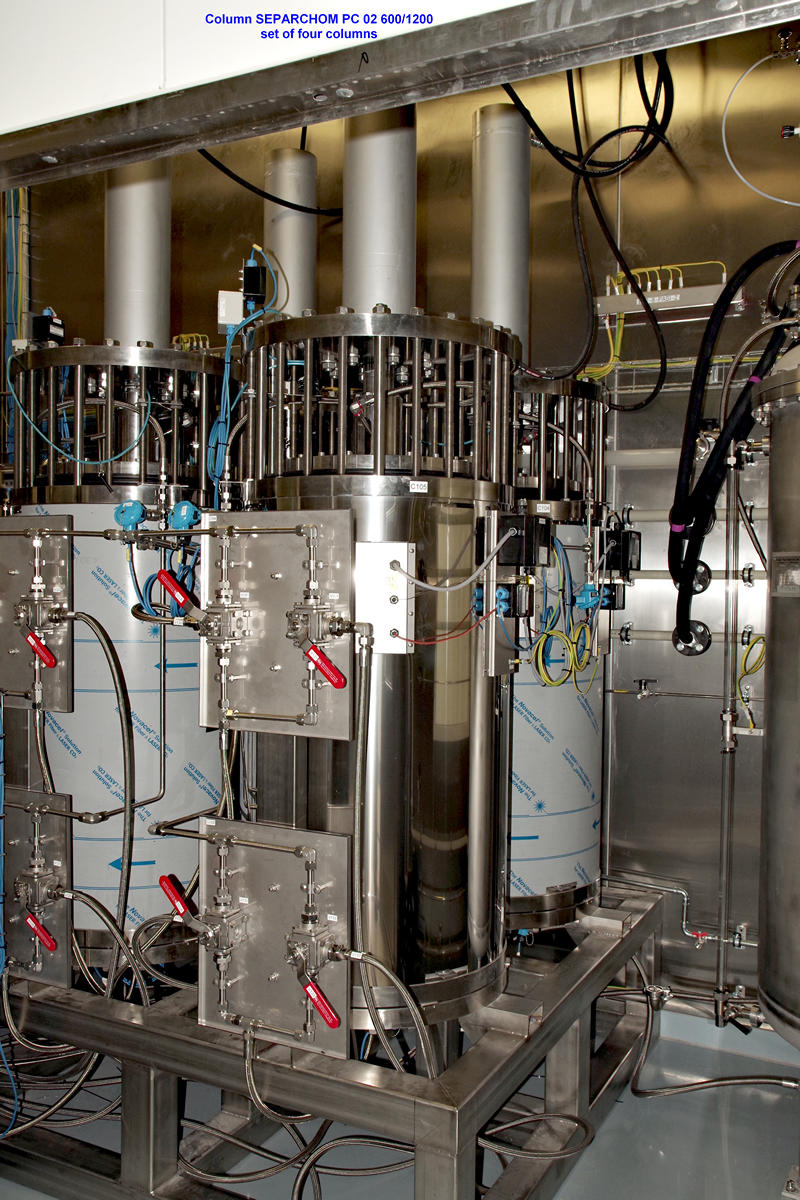

SEPARCHROM PC02 600/1200 SET OF FOUR COLUMNS
img do poznamky 46

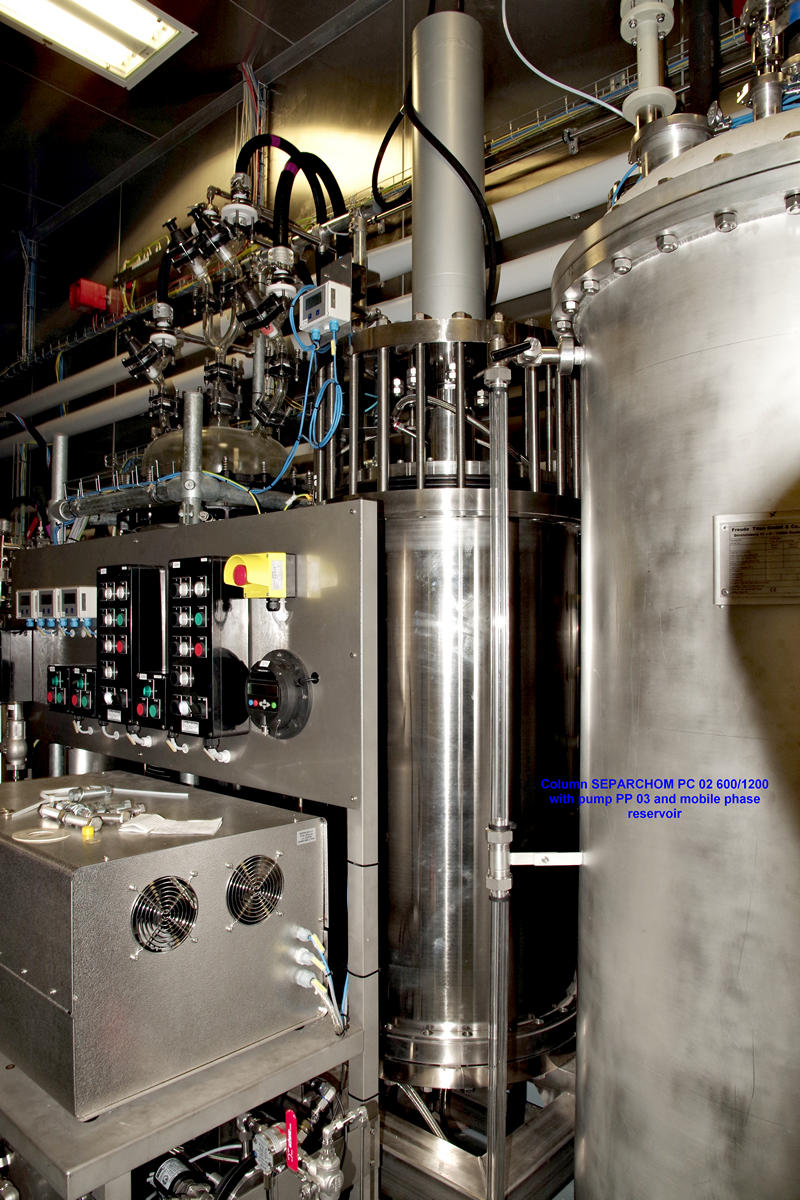

SEPARCHROM PC02 600/1200 WITH PUMP PP 03 AND MOBILE PHASE RESERVOIR
