HPLC COLUMNS FOR PREP CHROMATOGRAPHY

High performance Columns with biaxial compression

Columns Separchrom PC01 correspond to the highest requirements of preparative liquid chromatography. PC01 columns are designed to be used in a mode of axial (or biaxial) compression. Columns can be packed by dynamic slurry technique or by sedimentation method. They are equipped with identical pistons on input and output. Pistons are provided by Poremet® 2 stainless steel (AISI 316 L) frits with porosity 3 µm and minimum hydraulic resistance. New developed patented liquid distributing system is installed under each frit. The design guarantees perfect piston flow, high efficiency even for high injection volume and simple accessibility of frit for cleaning.


Separchrom PC01 columns are made of high quality stainless steel (AISI 316 or AISI 316L on the request) and their inner surface is polished to reach Ra < 0,3 µm. Column flanges are not welded, but screwed on the column tube. It means that there is no temperature increasing during manufacture and thus no change of steel properties. Columns have input piston with large stroke (possibly through whole column length) and it is moved by a force generated by a hydraulic cylinder or by flange bolts tightening. Single hydraulic cylinders fitted on upper flange with manual oil pumps are offered as well as fully automated electric motor driven devices for columns’ packing/unpacking procedure. Separchrom PC01 column output pistons movement is provided mechanically by tightening the flange bolts. In this case is functional stroke of the piston approximately 15 % of the column I.D. Pistons are sectional, frit squeezed to the frit ring can be released from piston body and cleaned as well the flow distributor. Distributor design effectively protects the frit from particles which can caused i´their blockage.

Separchrom PC01 columns are delivered with legs made of stainless steel closed profiles and fitted to the upper tube flange. It means that output flange is fully accessible for disassembling and sorbent releasing.

Separchrom PC01 columns are completed by a broad scale of accessories as filling adapters, slurry mixing vessels, slurry transporting pumps etc. for automatic filling using dynamic slurry technique as well as automatic emptying procedure.

 Columns for laboratory applications

Type of column I.D.
mm
Length
mm
Pressure
bar
Note
SEPARCHROM PC01 25/50 25 50 200 Delivered without legs
SEPARCHROM PC01 25/100 25 100 200 Delivered without legs
 .
SEPARCHROM PC01 25/250 25 250 200 Delivered without legs

SEPARCHROM PC01 50/50 50 50 200 Delivered without legs
SEPARCHROM PC01 50/100 50 100 200
 .
SEPARCHROM PC01 50/250 50 250 200
 .

SEPARCHROM PC01 50/500 50 500 200
SEPARCHROM PC01 100/100 100 100 150
SEPARCHROM PC01 100/250 100 250 150
SEPARCHROM PC01 100/500 100 500 150
 .


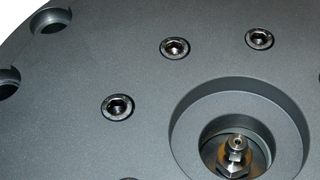

Columns for industrial applications

Type of column I.D.
mm
Length
mm
Pressure
bar
Note
SEPARCHROM PC01-100/100 100 100 150
 .
SEPARCHROM PC01-100/250 100 250 150
SEPARCHROM PC01-100/500 100 500 150

SEPARCHROM PC01-100/600 100 600 150
 .
SEPARCHROM PC01-100/700 100 700 150
 .
SEPARCHROM PC01-100/800 100 800 150

SEPARCHROM PC01-100/1000 100 1000 150
 .
SEPARCHROM PC01-150/150 150 150 150
SEPARCHROM PC01-150/300 150 300 150
SEPARCHROM PC01-150/500 150 500 150
 .
SEPARCHROM PC01-150/600 150 600 150
SEPARCHROM PC01-150/900 150 900 150
 .

SEPARCHROM PC01-150/1000 150 1000 150
 .
SEPARCHROM PC01-200/200 200 200 120
SEPARCHROM PC01-200/400 200 400 120
SEPARCHROM PC01-200/500 200 500 120

SEPARCHROM PC01-200/600 200 600 120
 .
SEPARCHROM PC01-200/800 200 800 120
SEPARCHROM PC01-200/1000 200 1000 120
 .
SEPARCHROM PC01-300/300 300 300 100
SEPARCHROM PC01-300/600 300 600 100
SEPARCHROM PC01-300/900 300 900 100
SEPARCHROM PC01-300/1200 300 1200 100
 .
SEPARCHROM PC01-400/400 400 400 80
SEPARCHROM PC01-400/800 400 800 80
 .

SEPARCHROM PC01-400/1200 400 1200 80
 .
soubor 2
1
img do poznamky 1

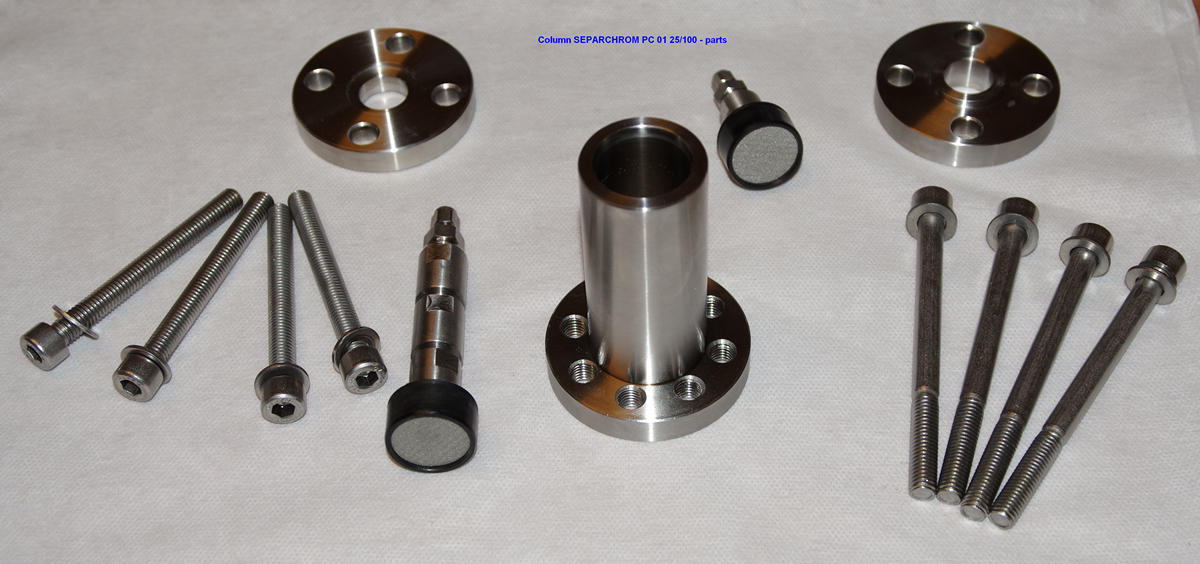

SEPARCHROM PC01 25/100 PARTS
img do poznamky 2

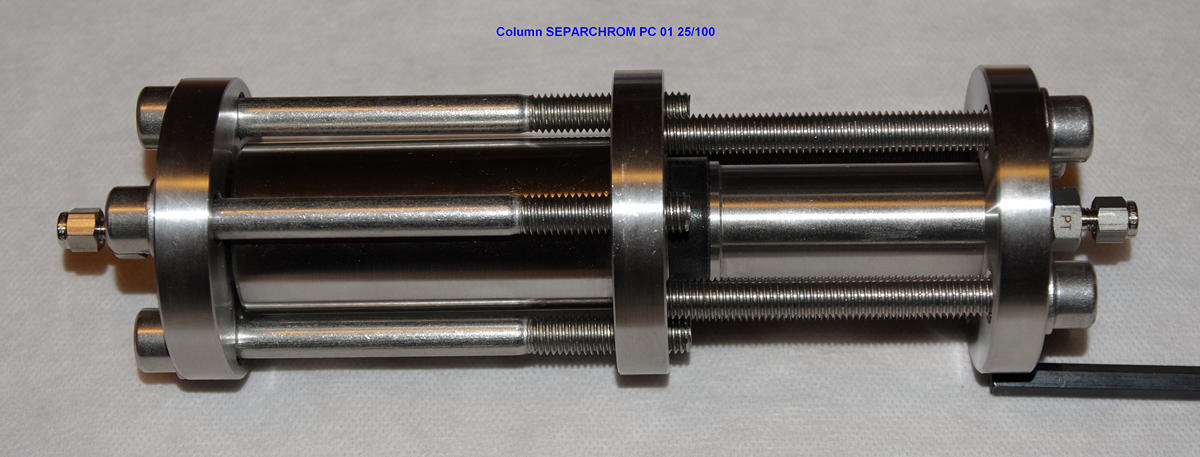

SEPARCHROM PC01 25/100
img do poznamky 3

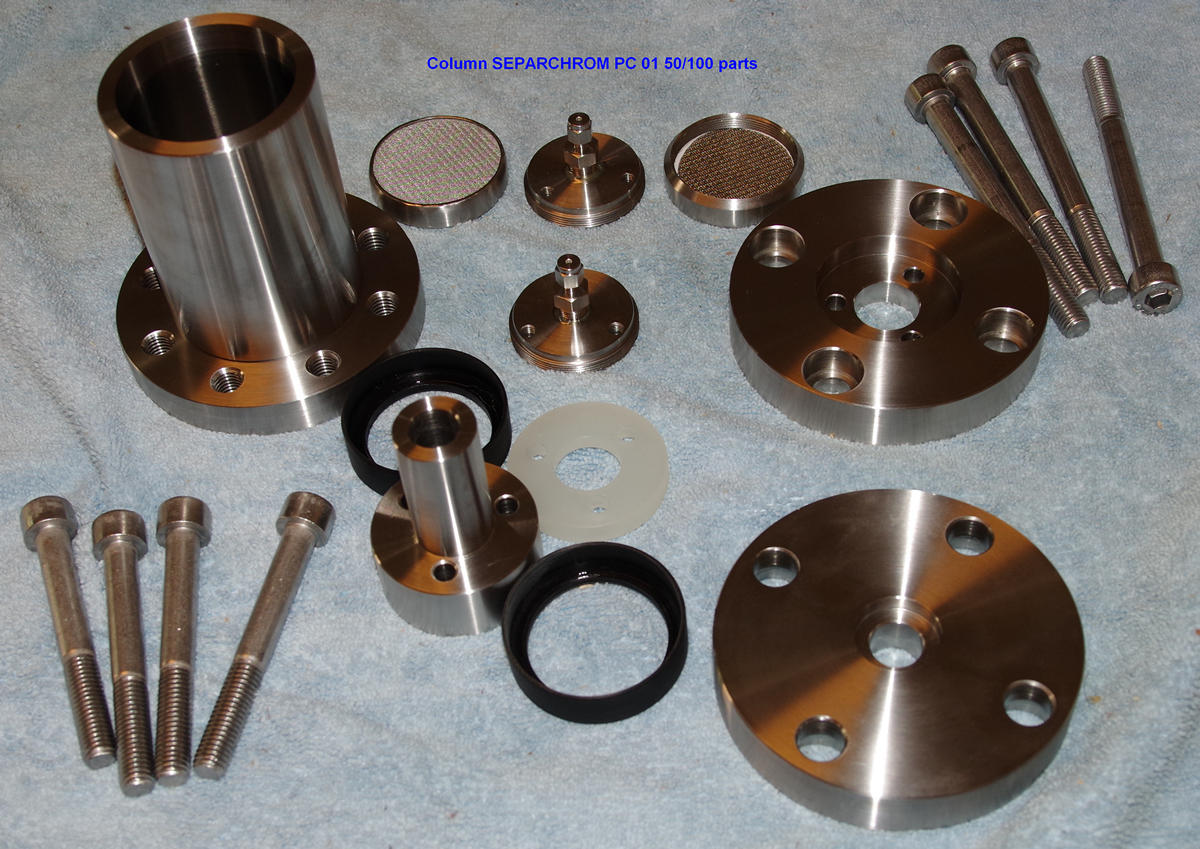

SEPARCHROM PC01 50/100 PARTS
img do poznamky 4

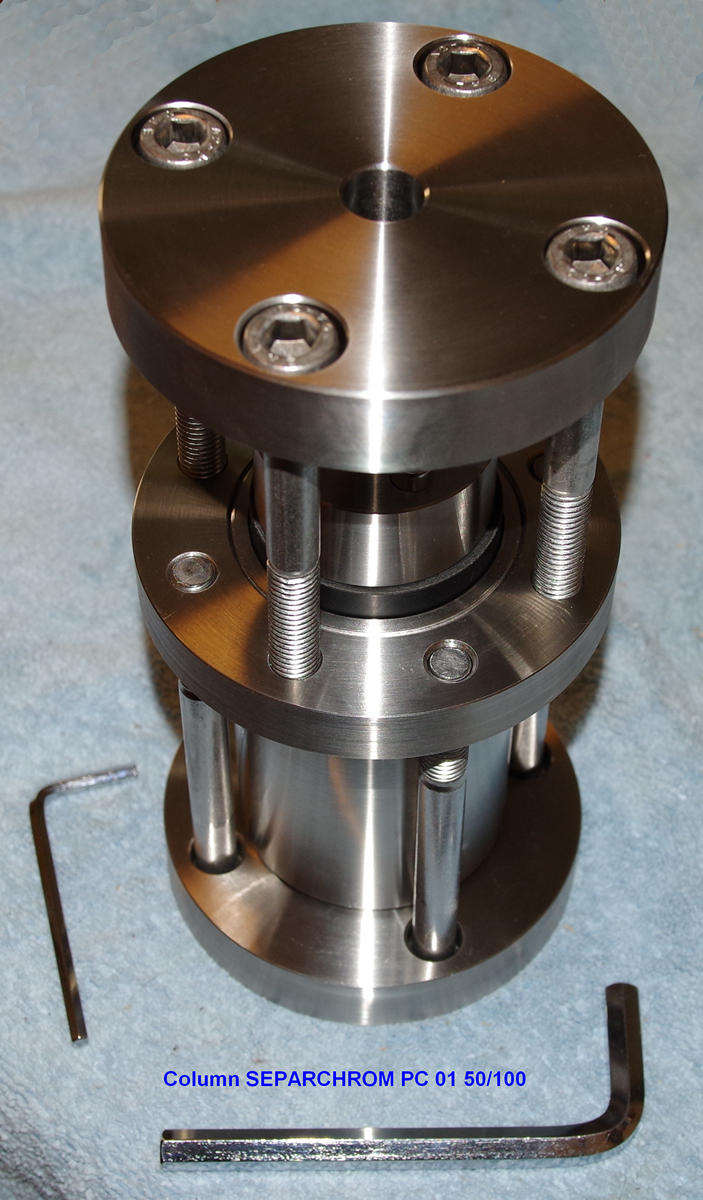

SEPARCHROM PC01 50/100
img do poznamky 5

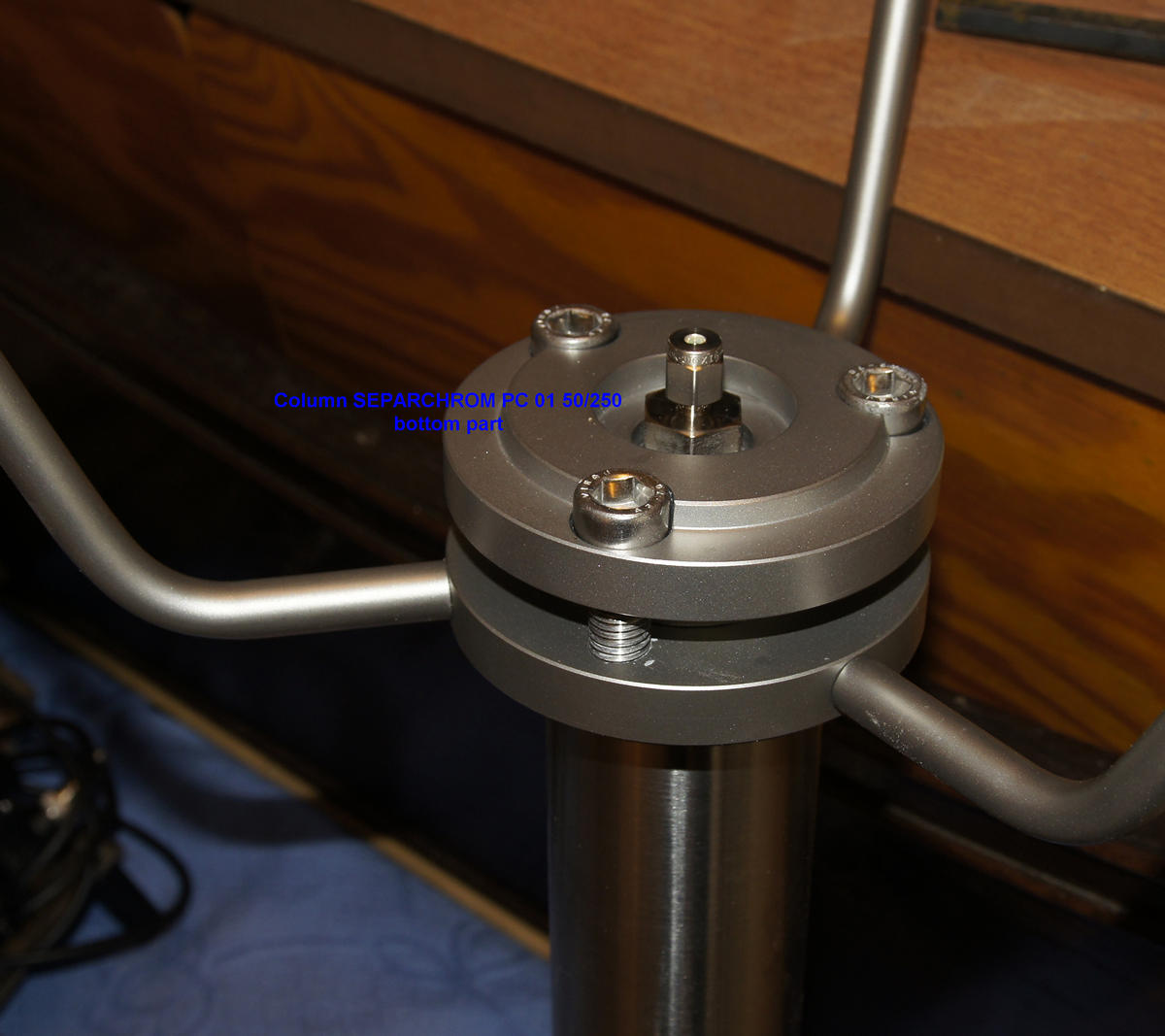

SEPARCHROM PC01 50/250 BOTTOM
img do poznamky 6

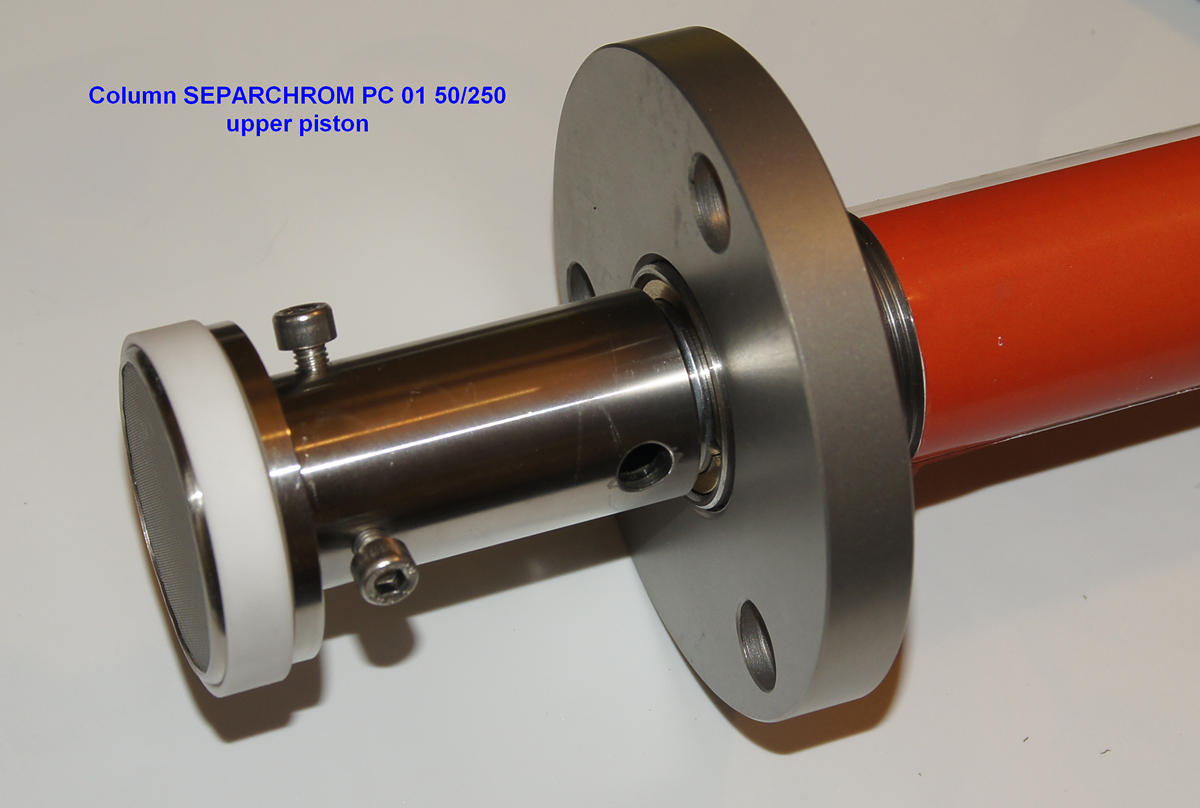

SEPARCHROM PC01 50/250 UPPER PISTON
img do poznamky 7

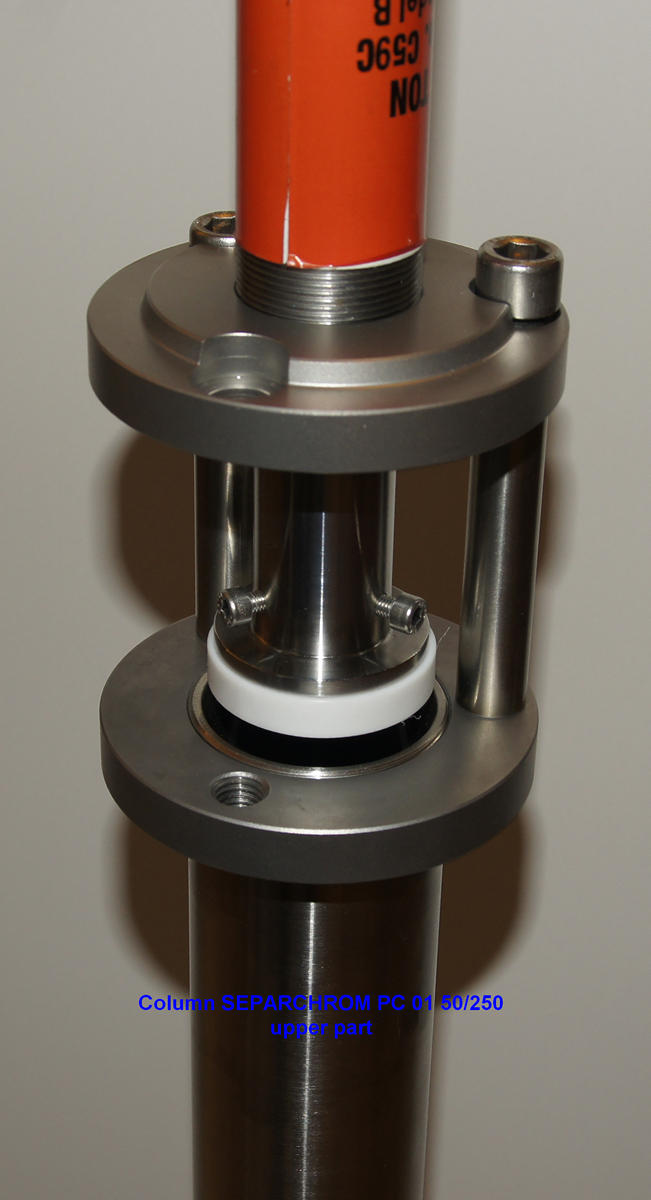

SEPARCHROM PC01 50/250 UPPER PART
img do poznamky 8

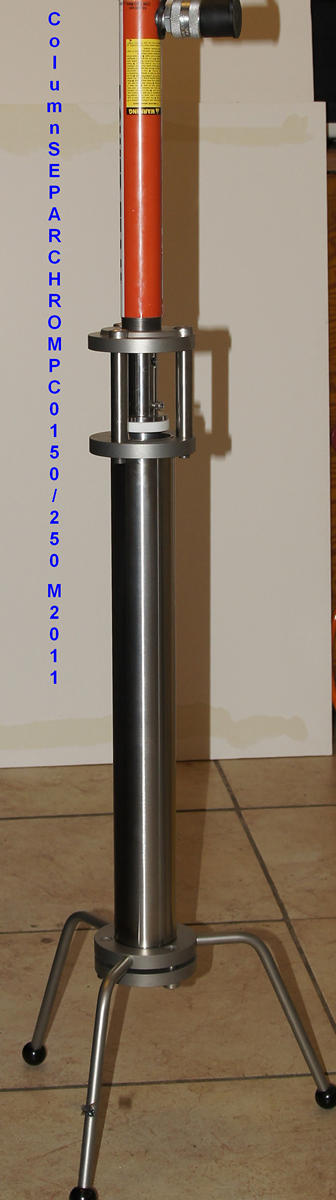

SEPARCHROM PC01 50/250
img do poznamky 9

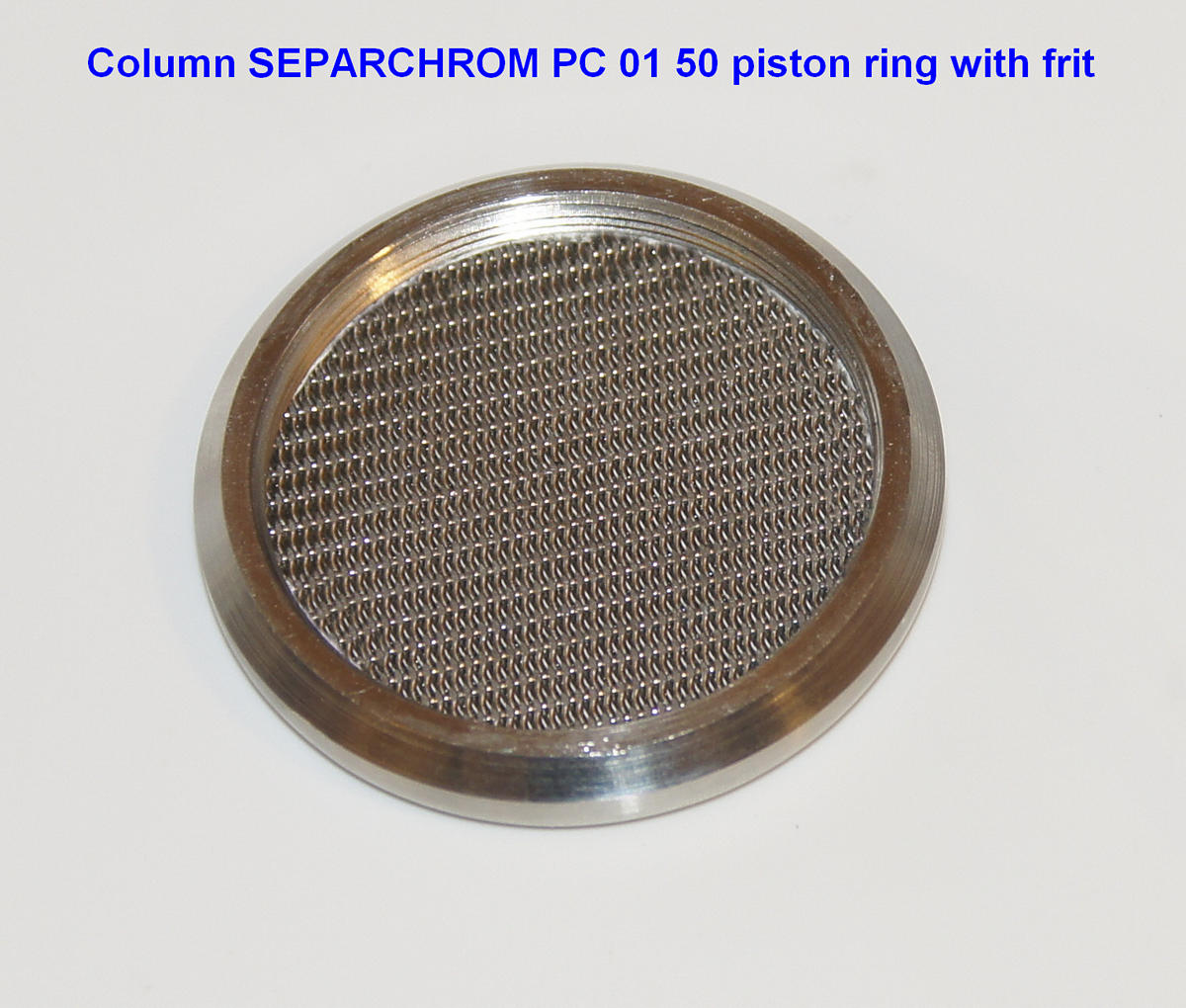

SEPARCHROM PC01 50/250 PISTON RING WITH FRIT
img do poznamky 10

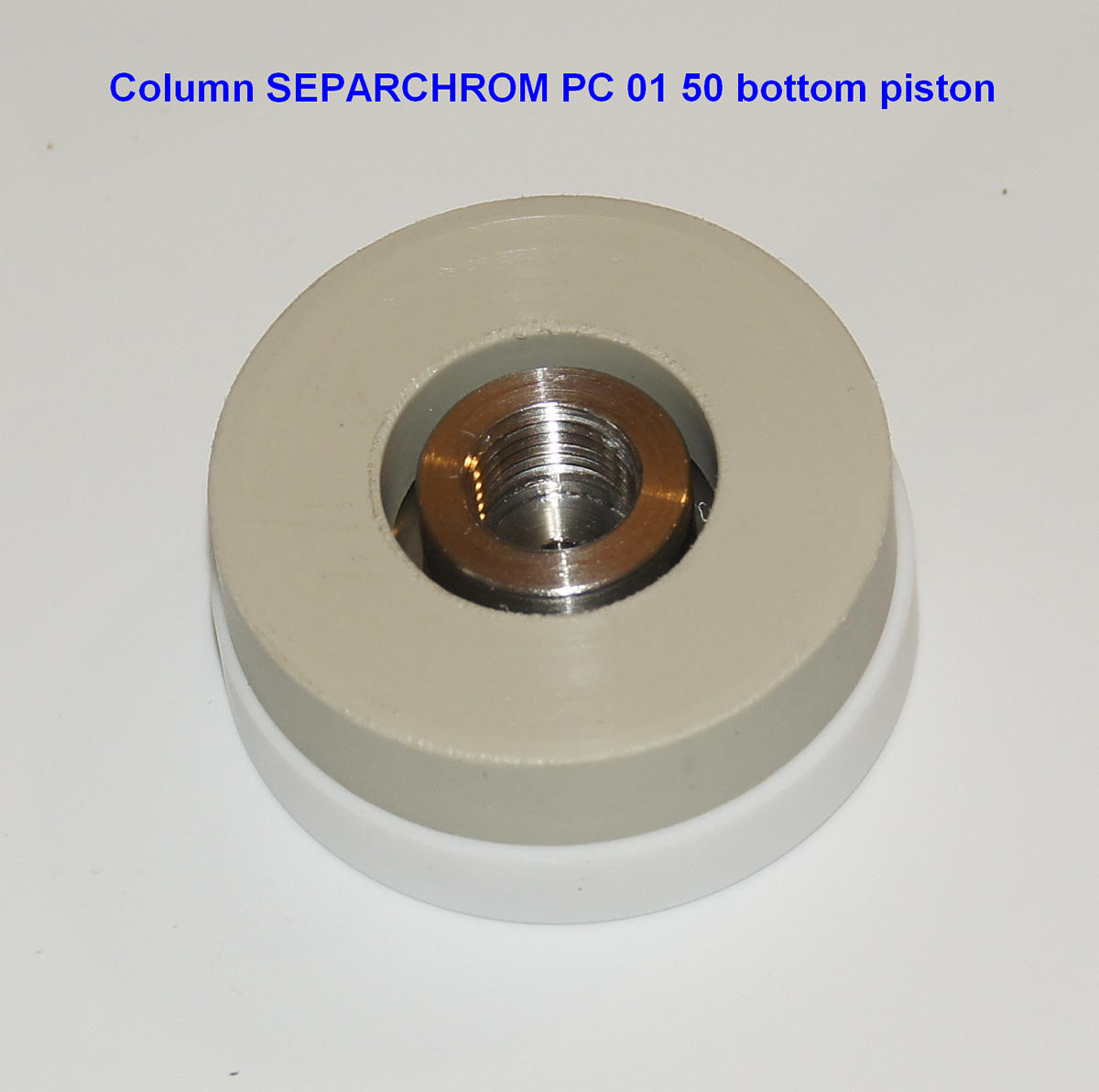

SEPARCHROM PC01 50/250 BOTTOM PISTON
img do poznamky 11

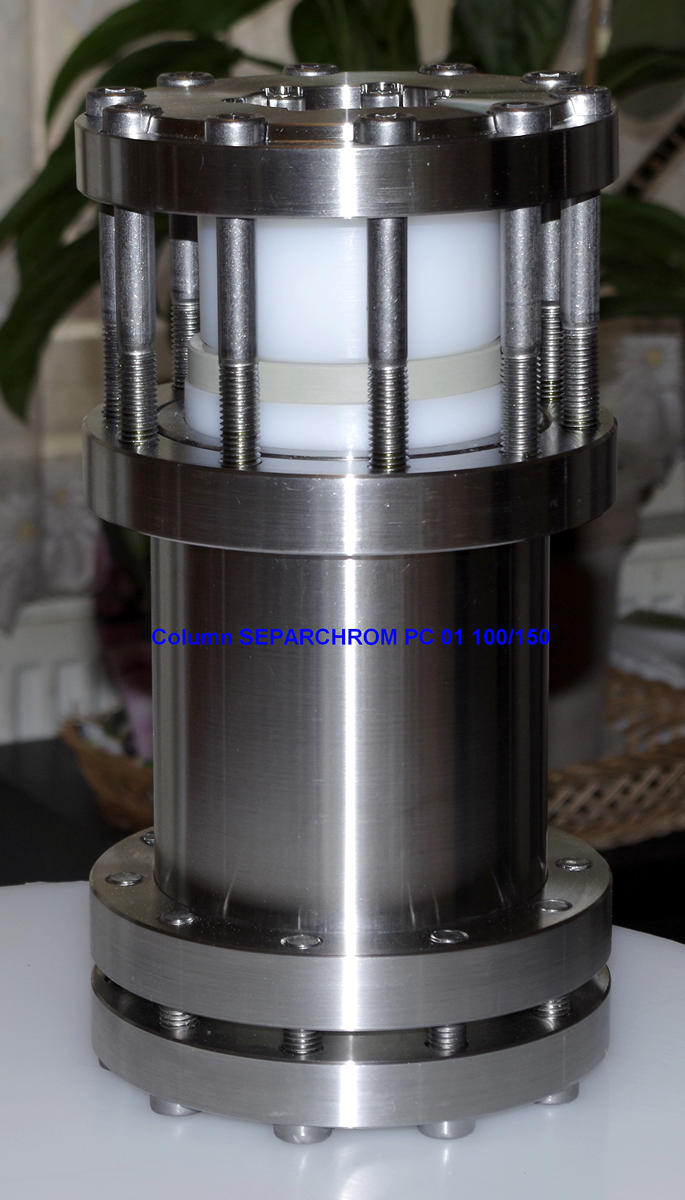

SEPARCHROM PC01 100/150 IMG-1
img do poznamky 12

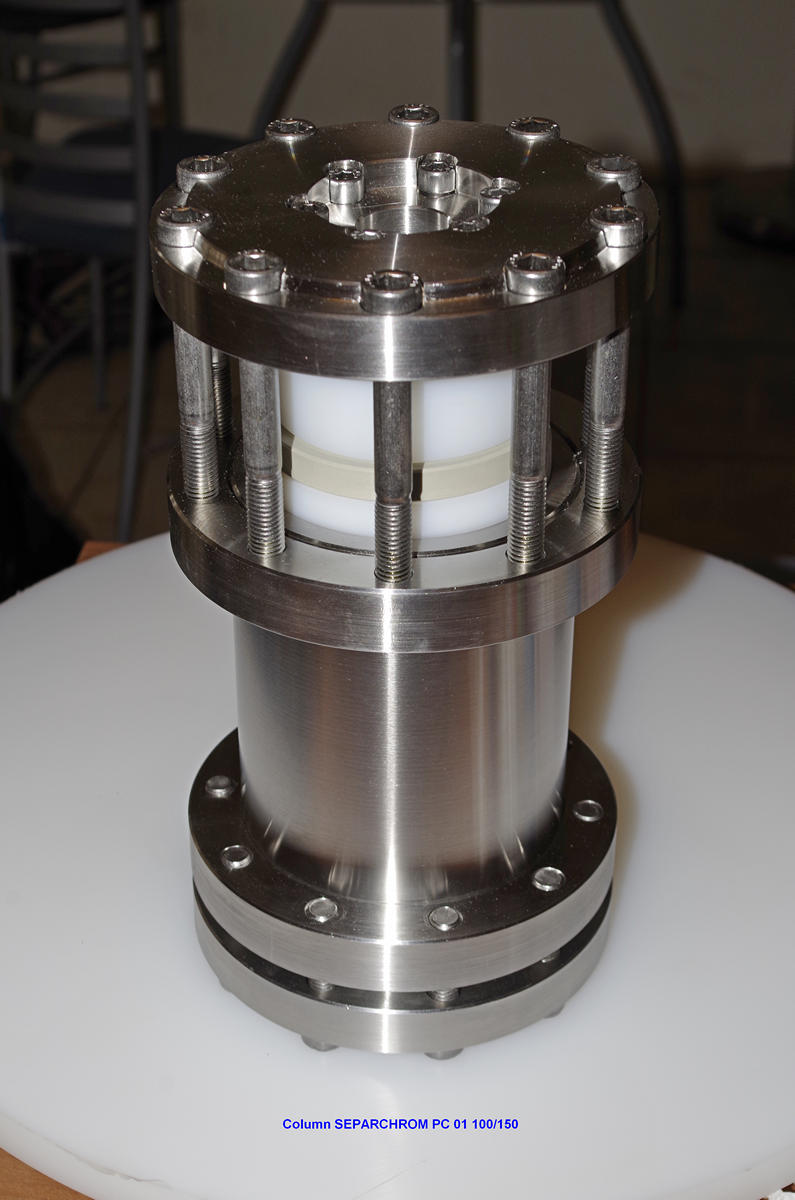

SEPARCHROM PC01 100/150 IMG-2
img do poznamky 13

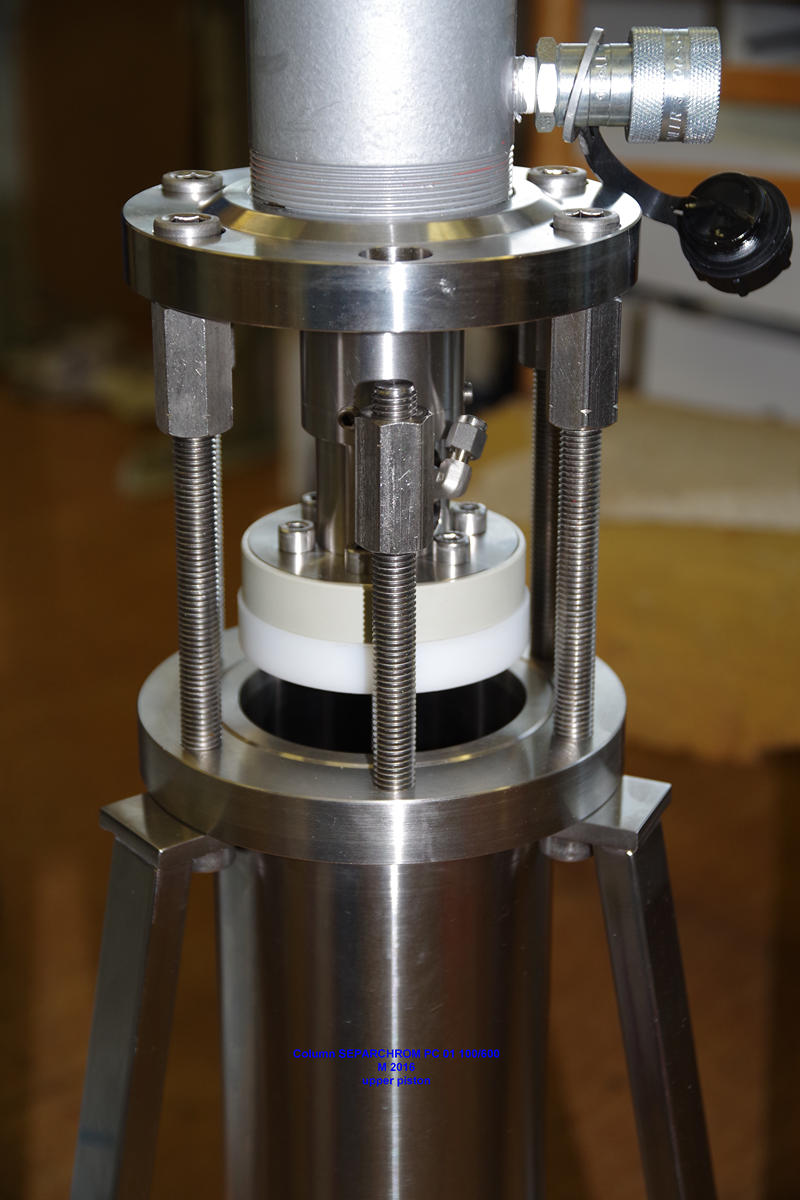

SEPARCHROM PC01 100/600 UPPER-PISTON
img do poznamky 14

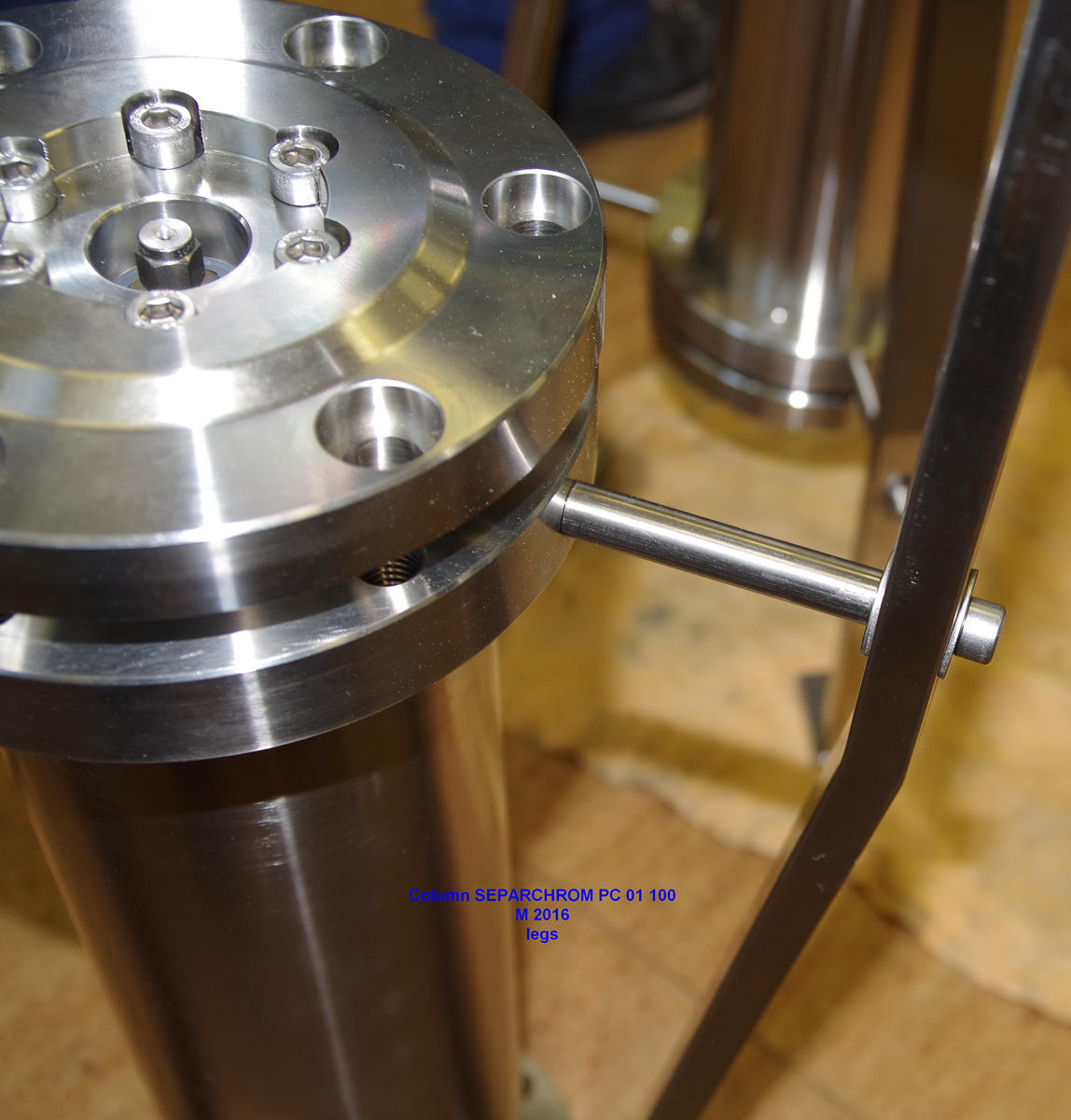

SEPARCHROM PC01 100/500 LEGS
img do poznamky 15

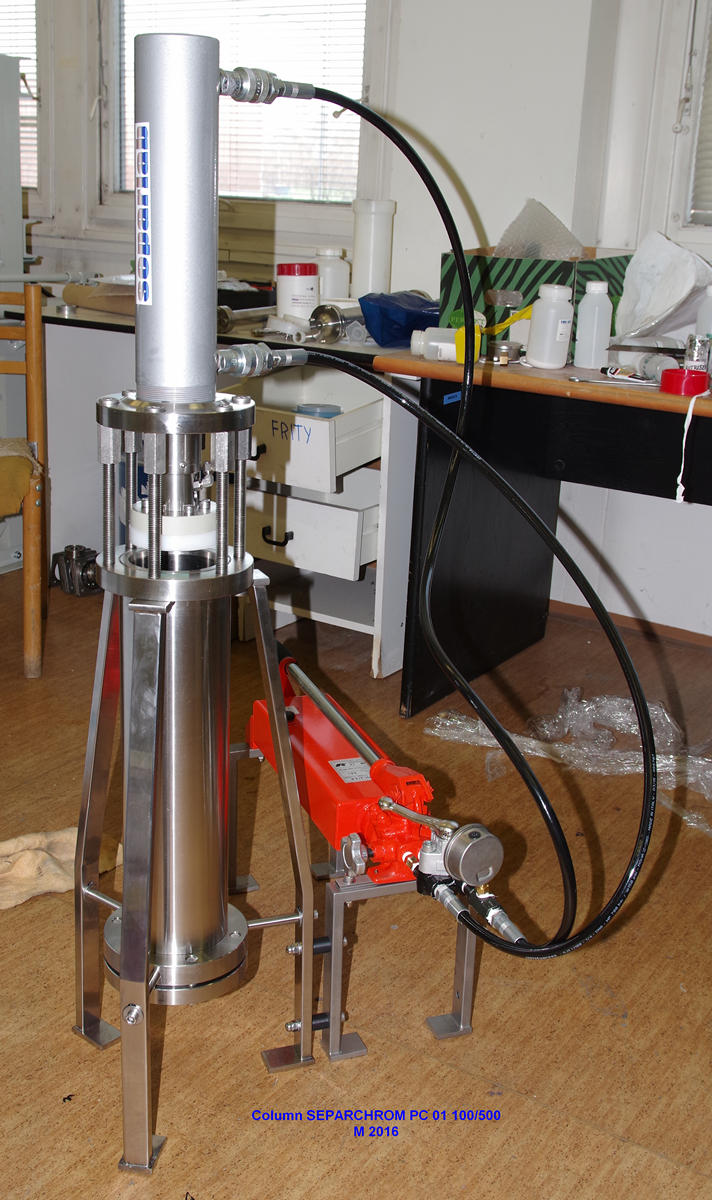

SEPARCHROM PC01 100/500
img do poznamky 16

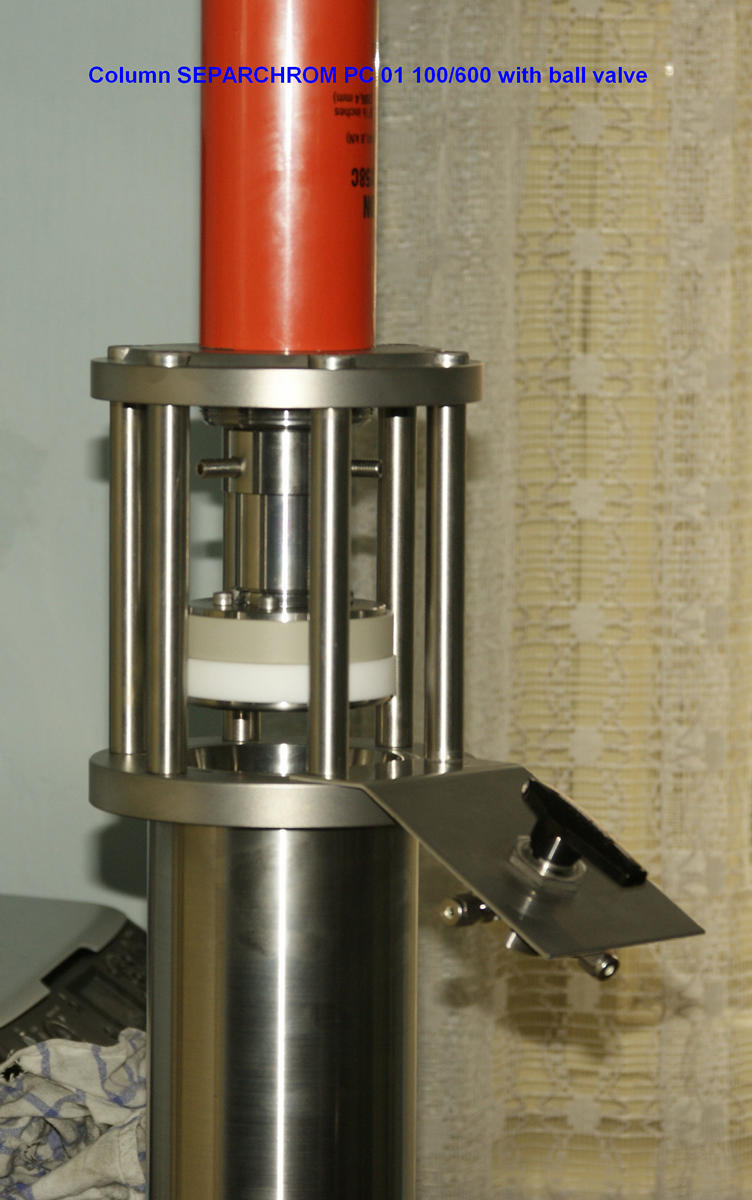

SEPARCHROM PC01 100/600 WITH BALL VALVE
img do poznamky 17

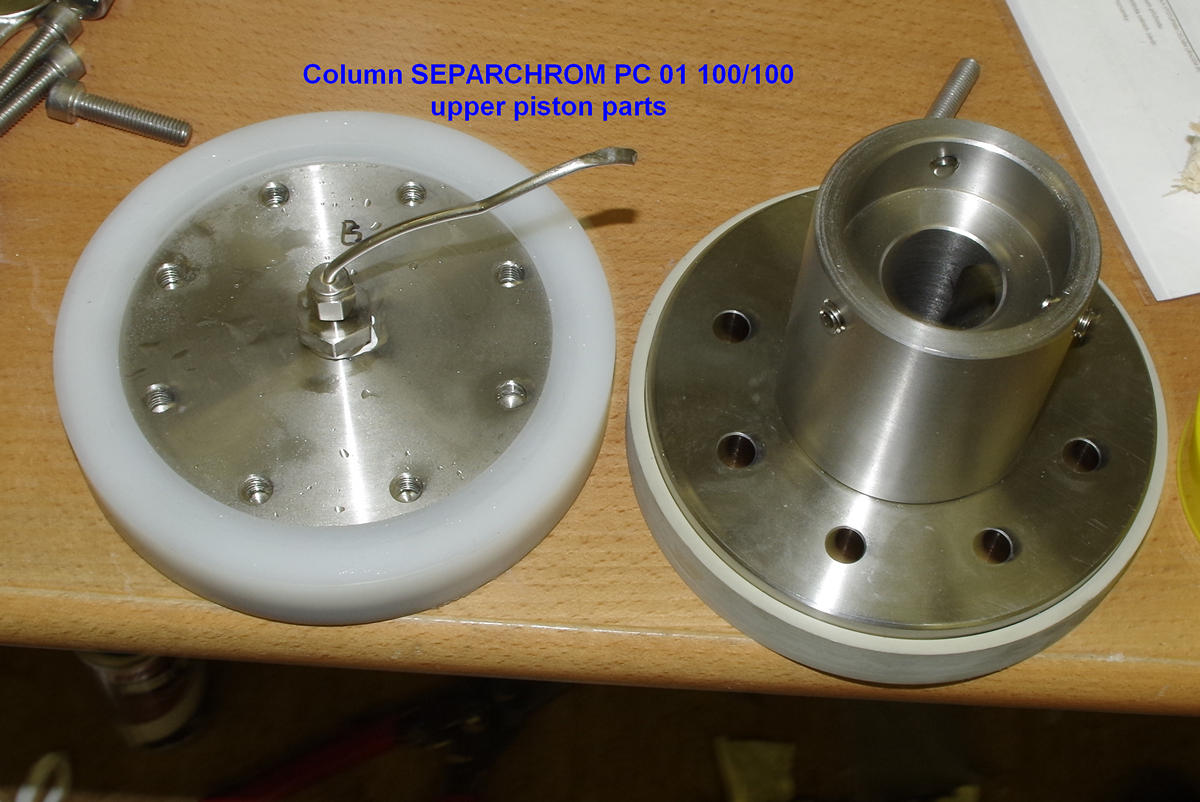

SEPARCHROM PC01 100/100 UPPER PISTON PARTS
img do poznamky 18

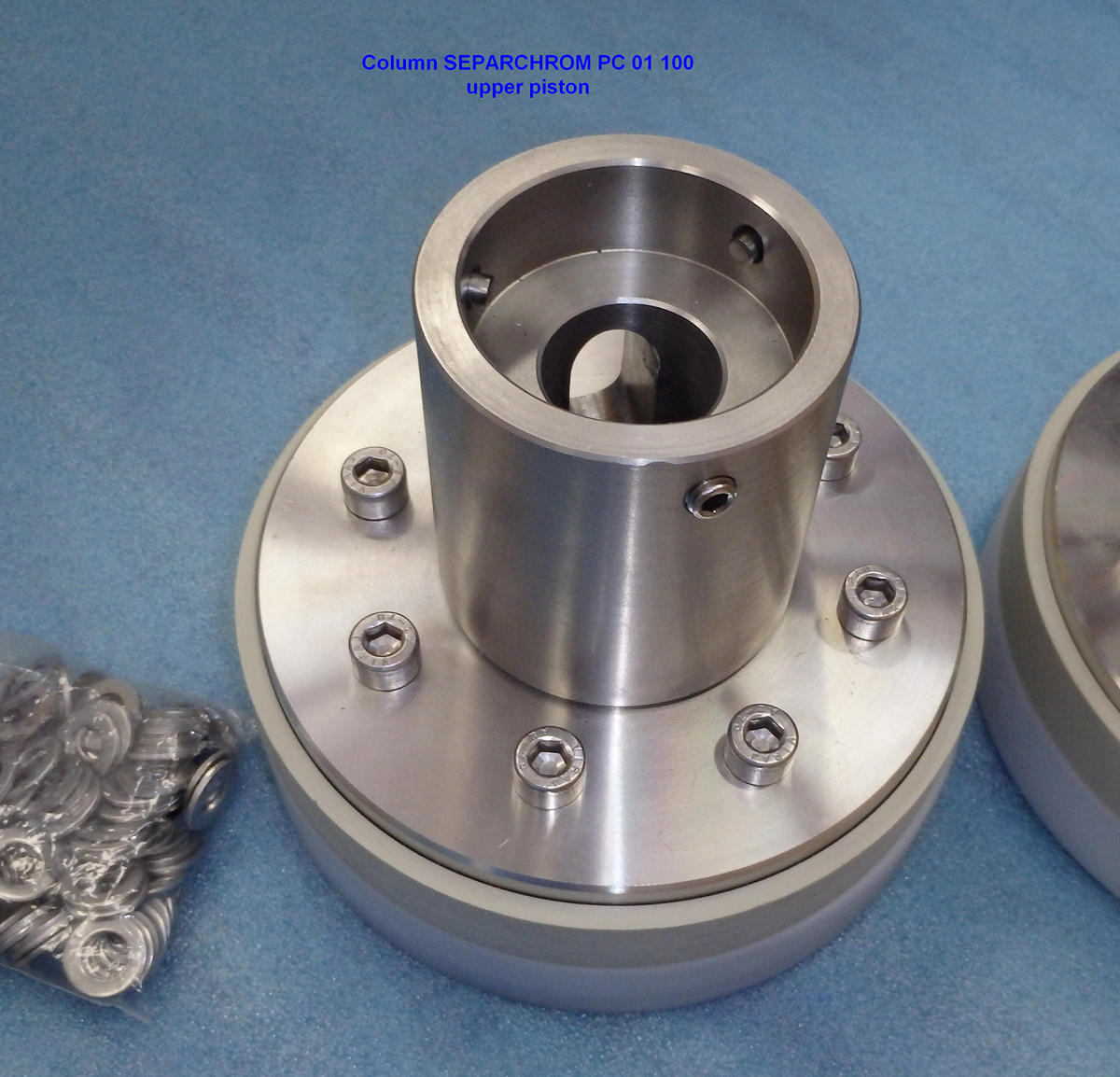

SEPARCHROM PC01 100 UPPER PISTON
img do poznamky 19

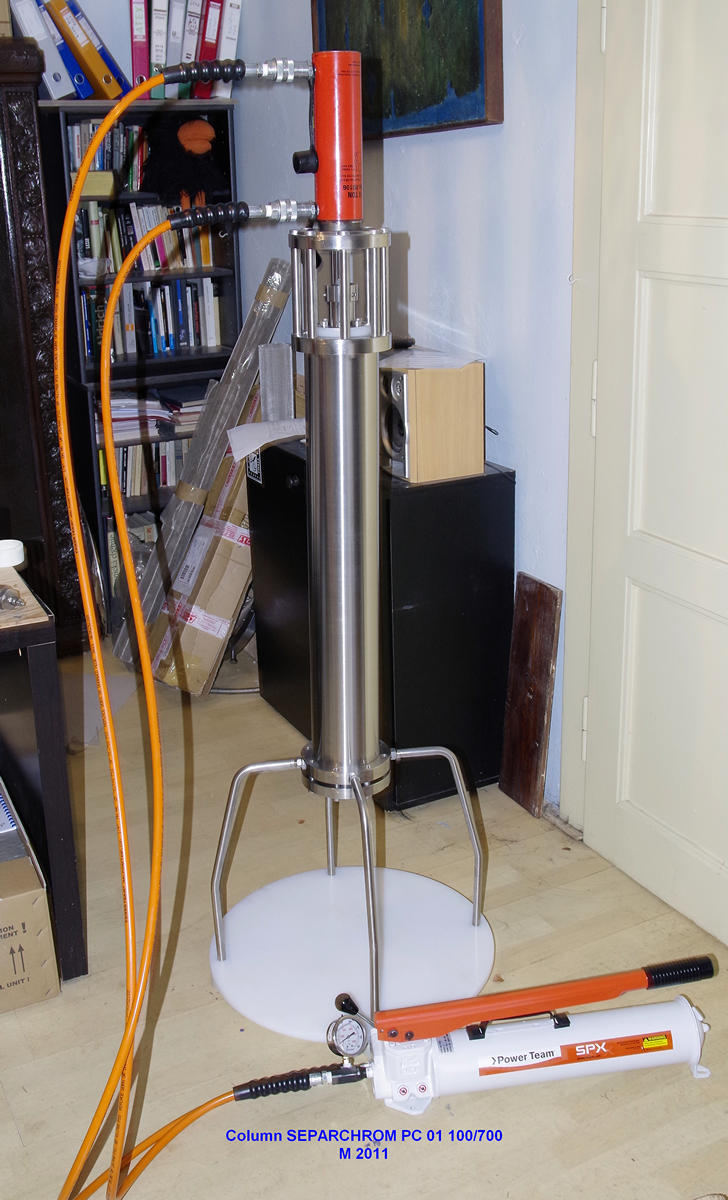

SEPARCHROM PC01 100/700
img do poznamky 20

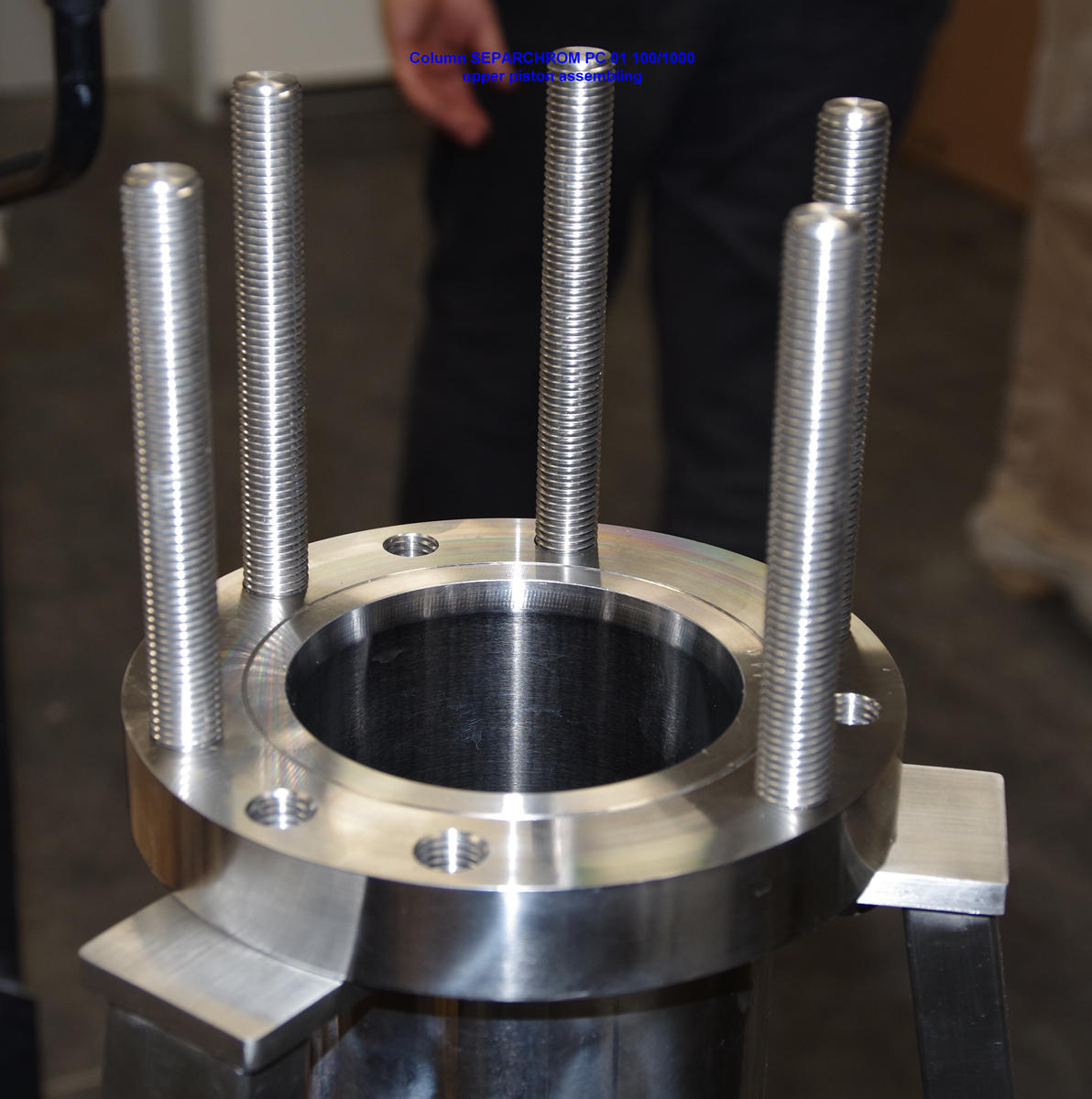

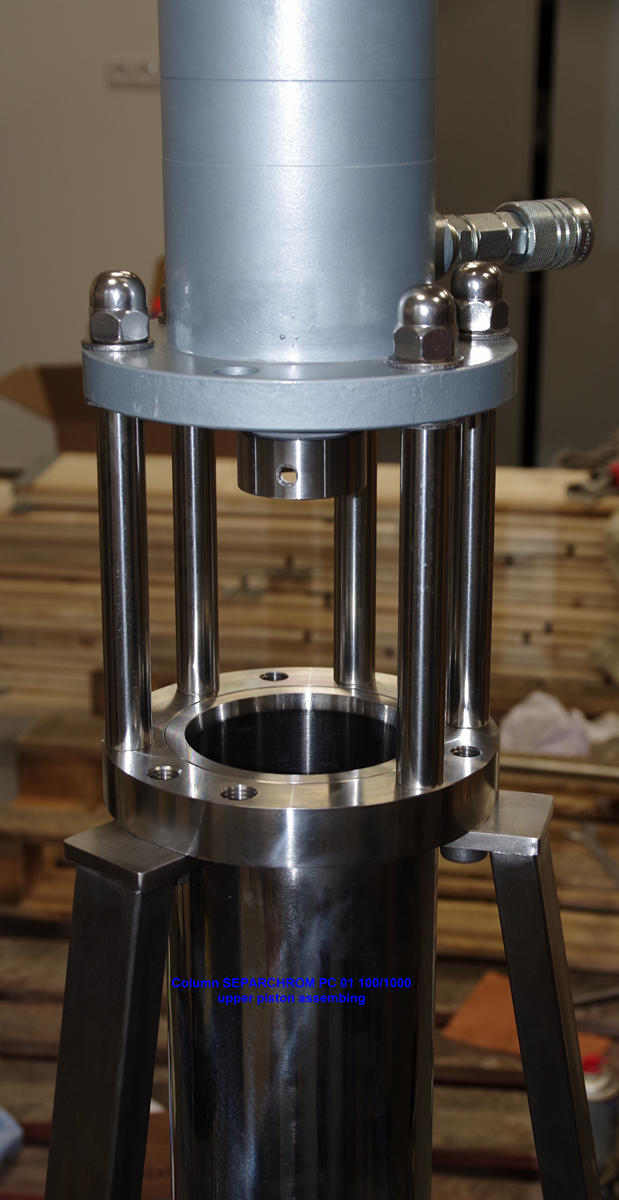

SEPARCHROM PC01 100/1000 UPPER PISTON ASSEMBLING
img do poznamky 21
SEPARCHROM PC01 100/1000 UPPER PISTON ASSEMBLING 2
img do poznamky 22

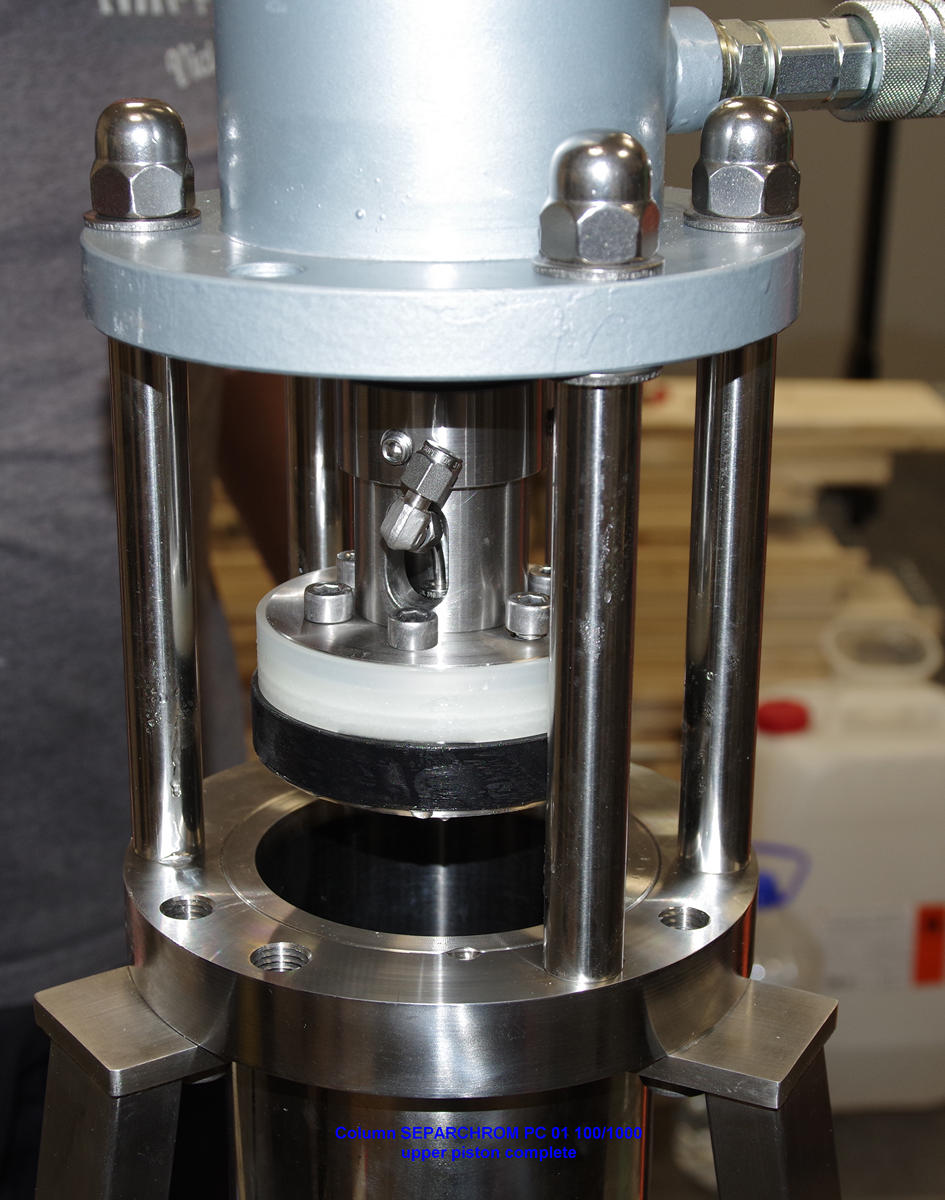

SEPARCHROM PC01 100/1000 UPPER PISTON COMPLETE
img do poznamky 23

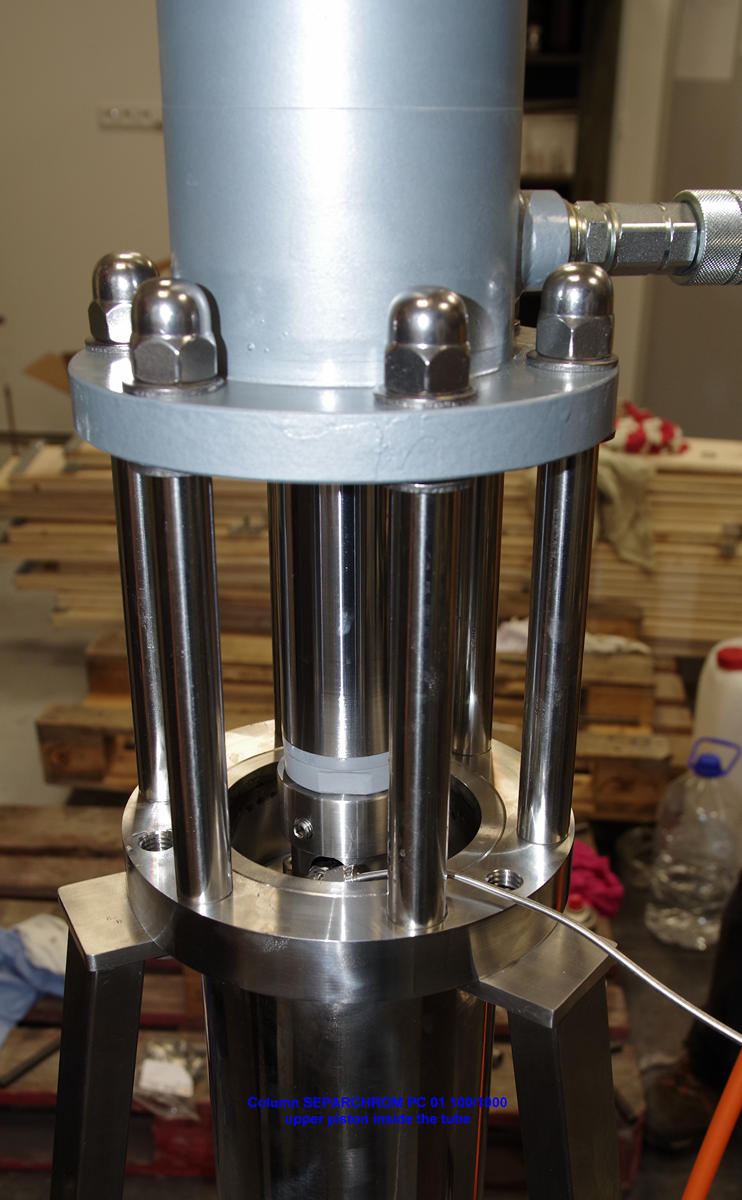

SEPARCHROM PC01 100/1000 UPPER PISTON INSIDE THE TUBE
img do poznamky 24

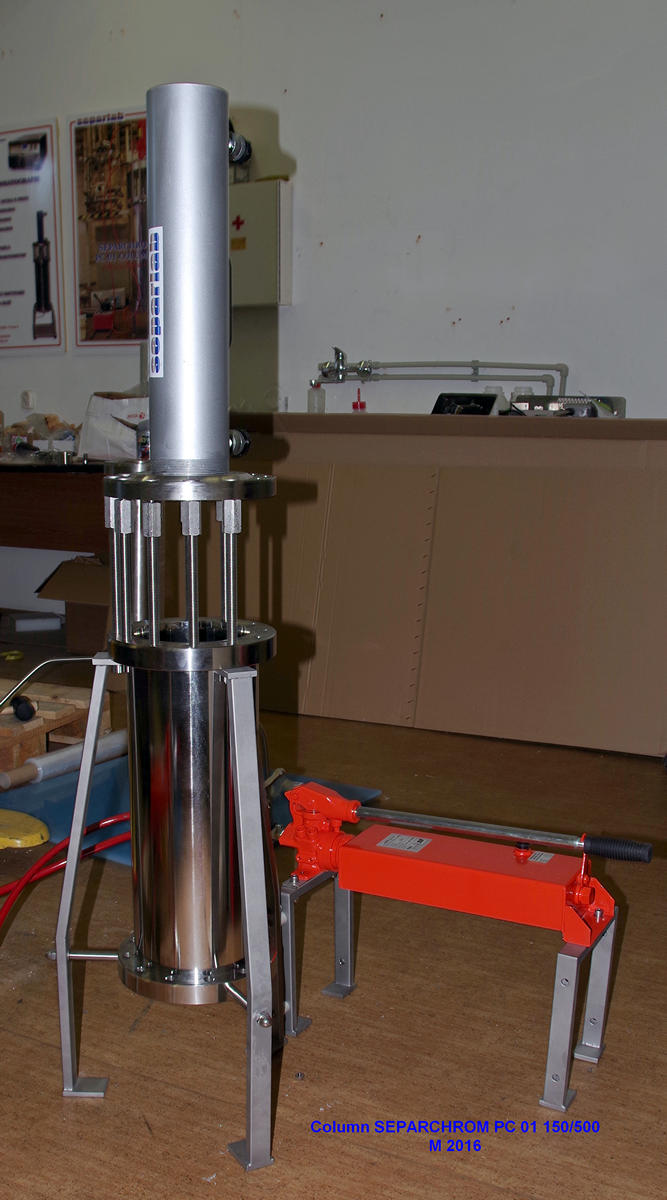

SEPARCHROM PC01 150/500
img do poznamky 25

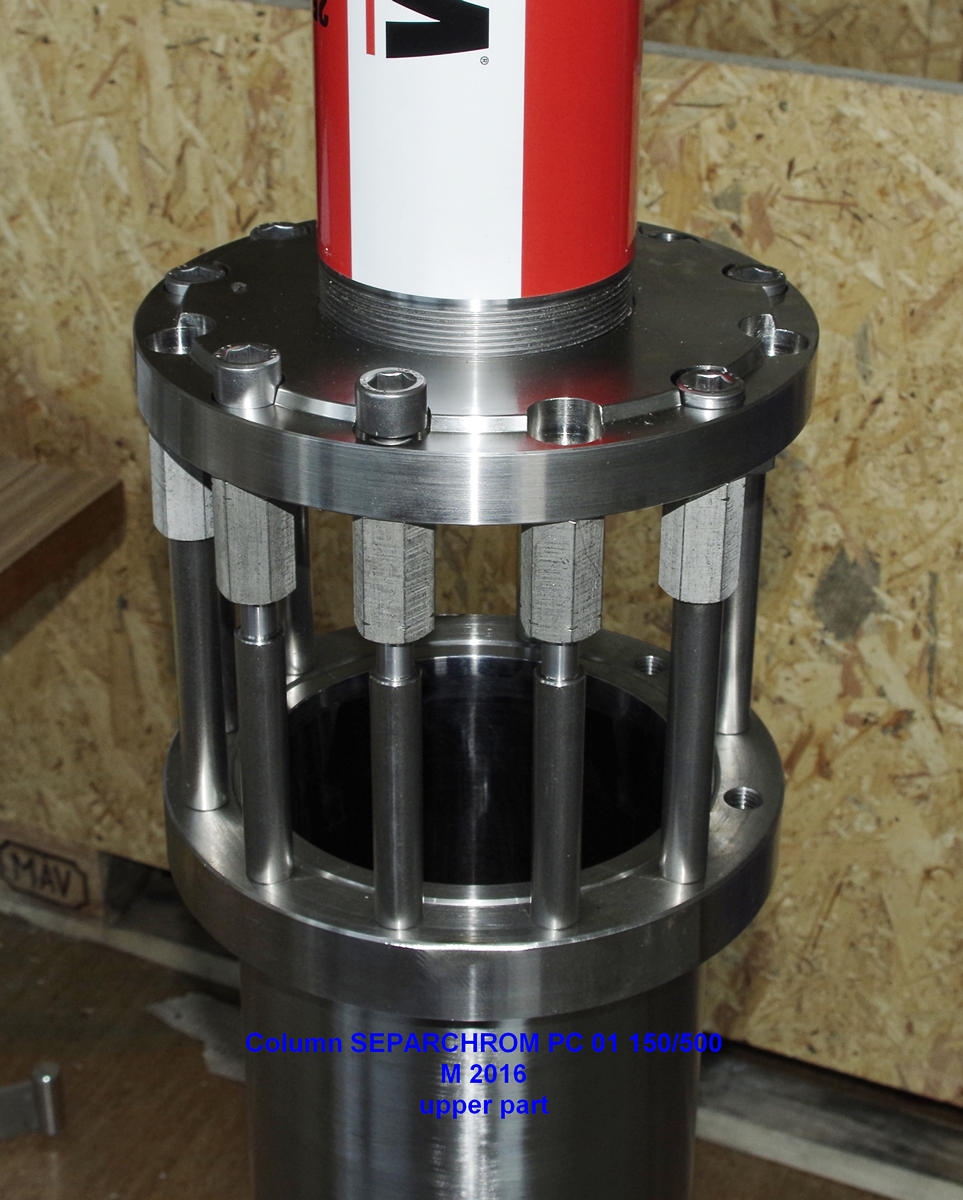

SEPARCHROM PC01 150/500  UPPER PART
img do poznamky 26

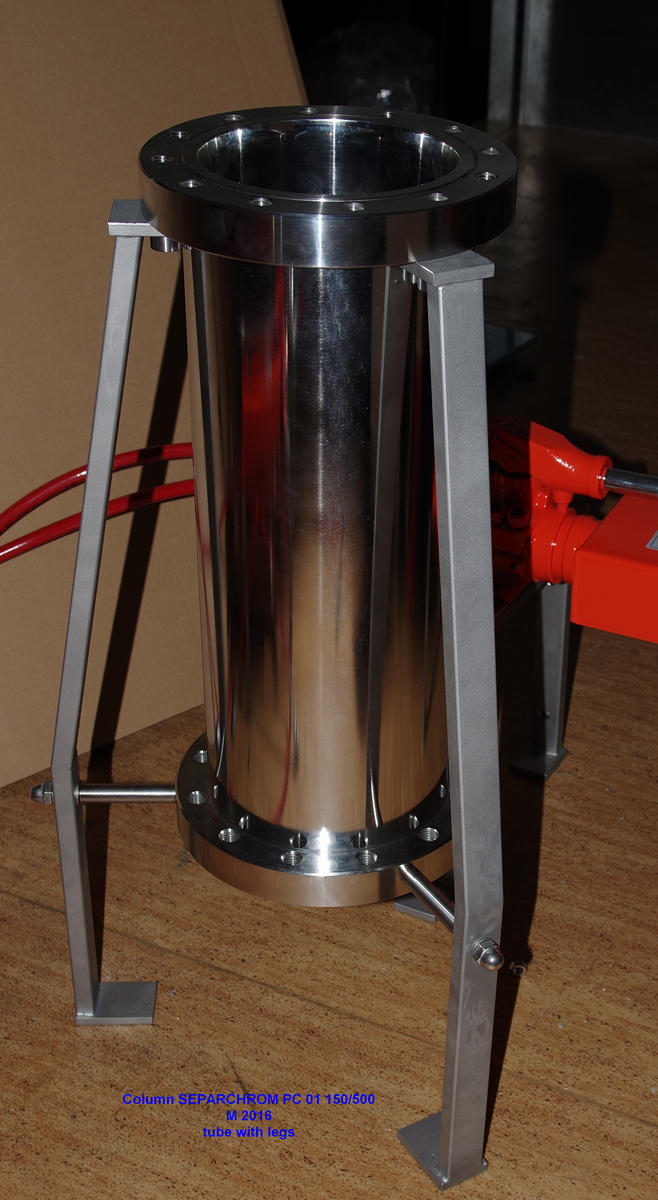

SEPARCHROM PC01 150/500  TUBE WITH LEGS
img do poznamky 27

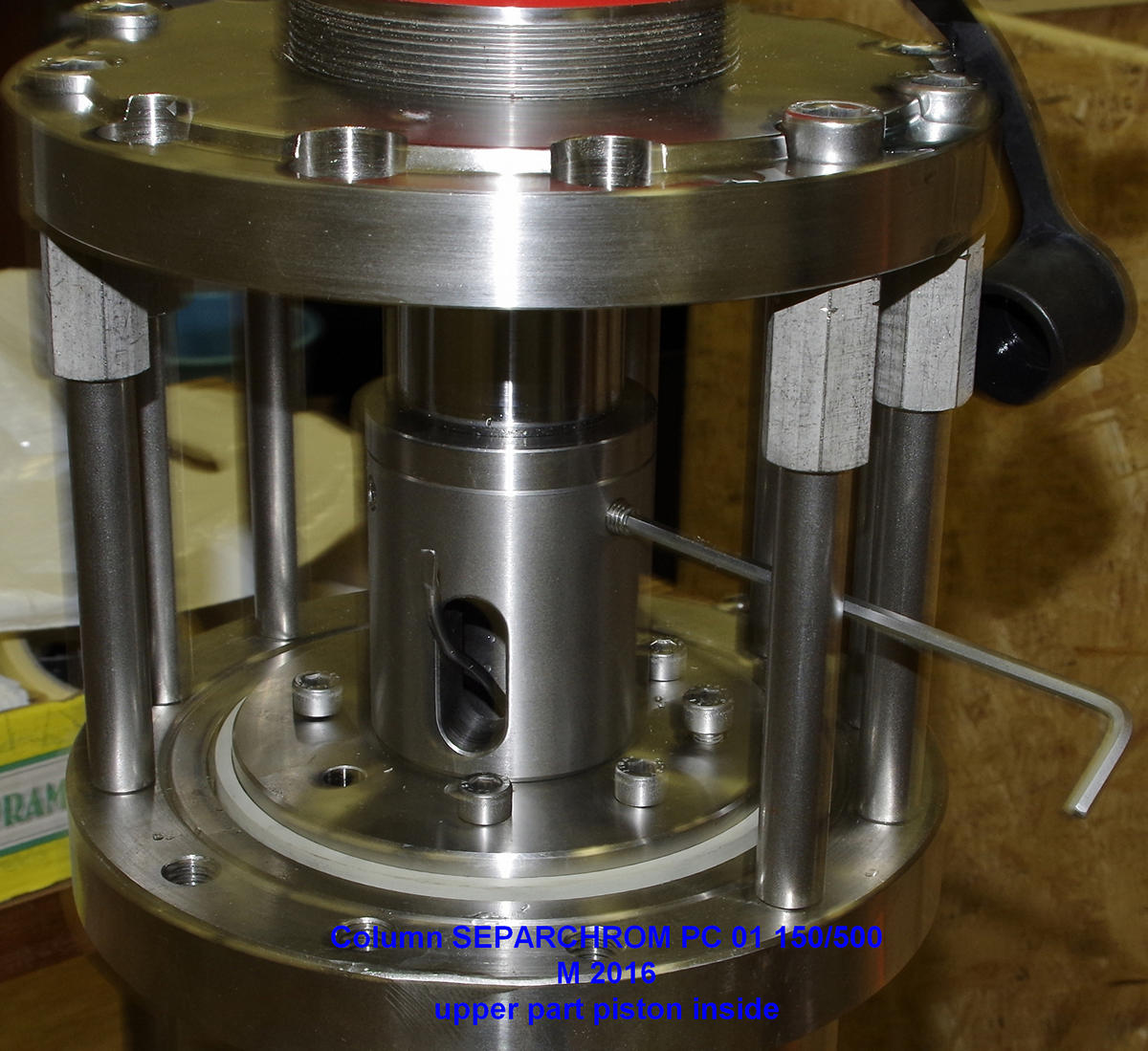

SEPARCHROM PC01 150/500 UPPER PART PISTON INSIDE
img do poznamky 28
SEPARCHROM PC01 150 FRIT WITH RING
img do poznamky 29

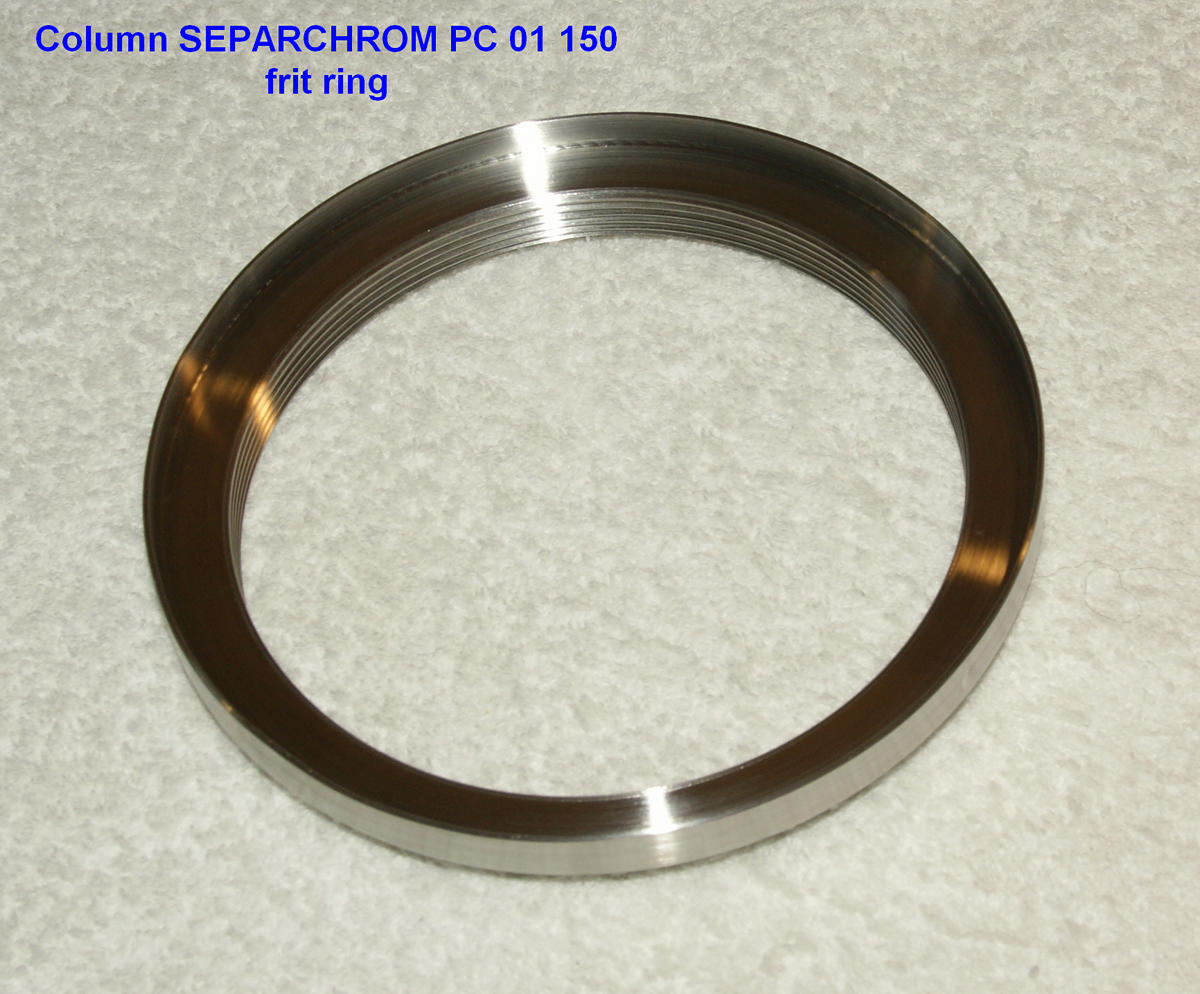

SEPARCHROM PC01 150  RING
img do poznamky 30

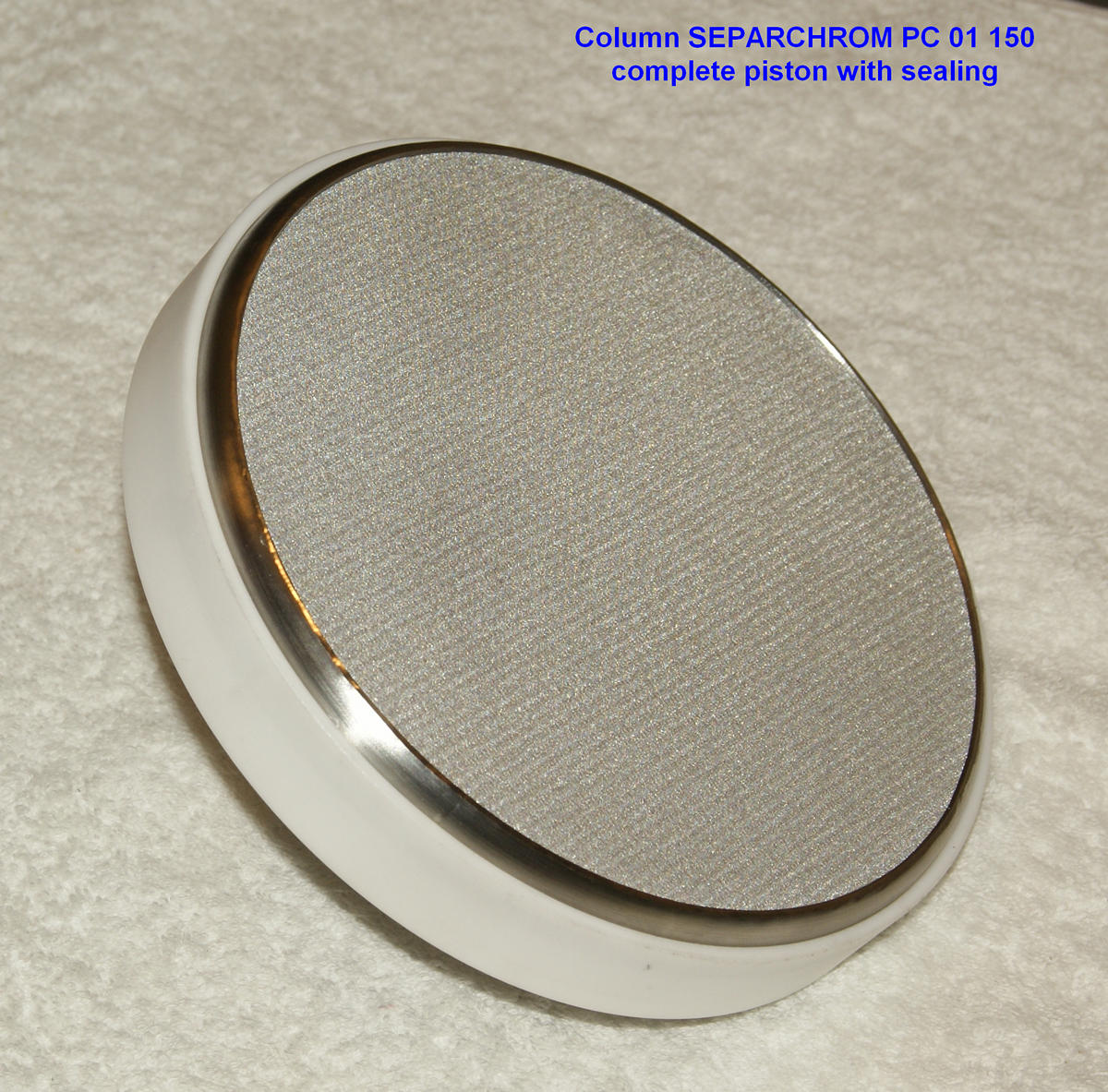

SEPARCHROM PC01 150 COMPLETE PISTON WITH SEALING
img do poznamky 31

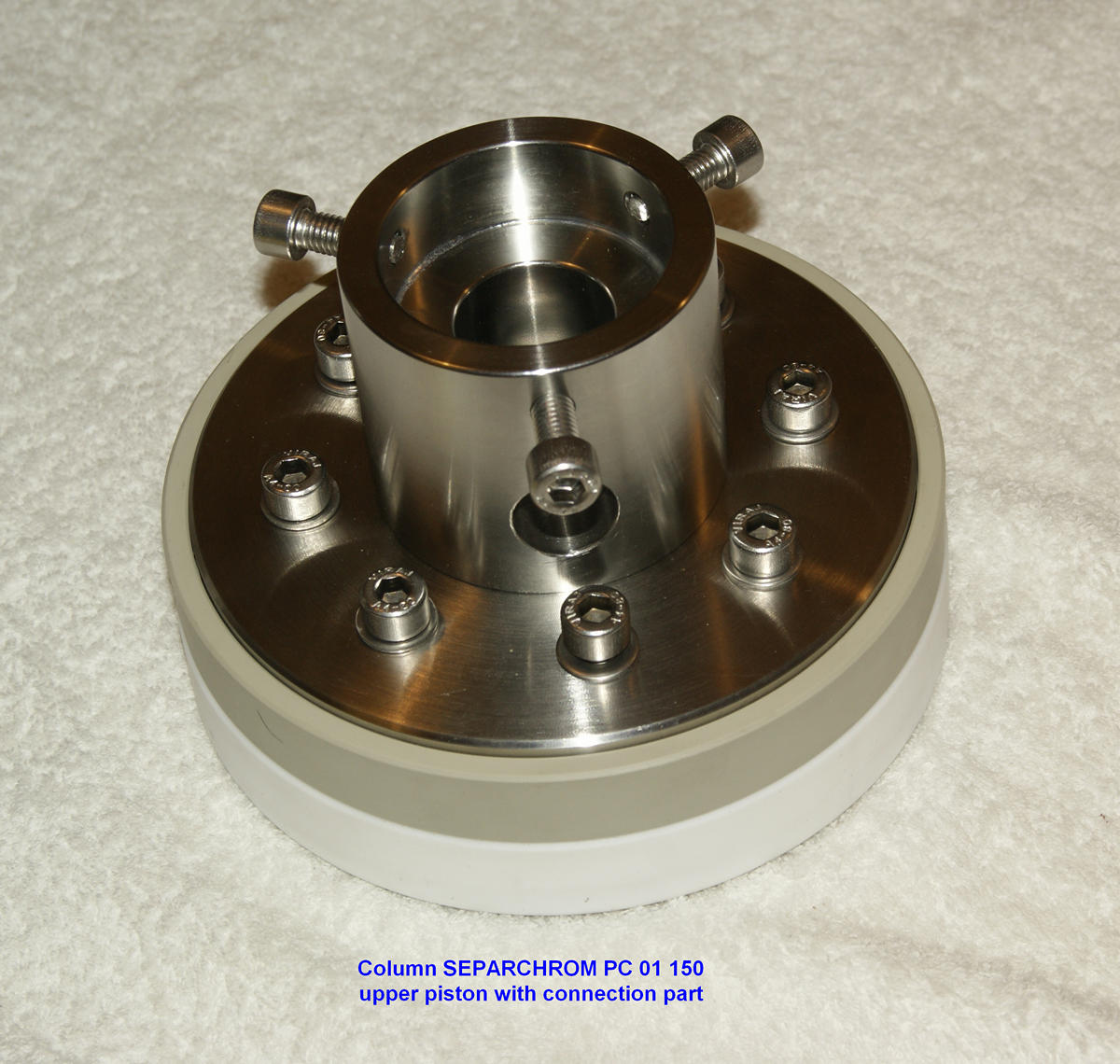

SEPARCHROM PC01 150  UPPER PISTON WITH CONNECTION PART
img do poznamky 32

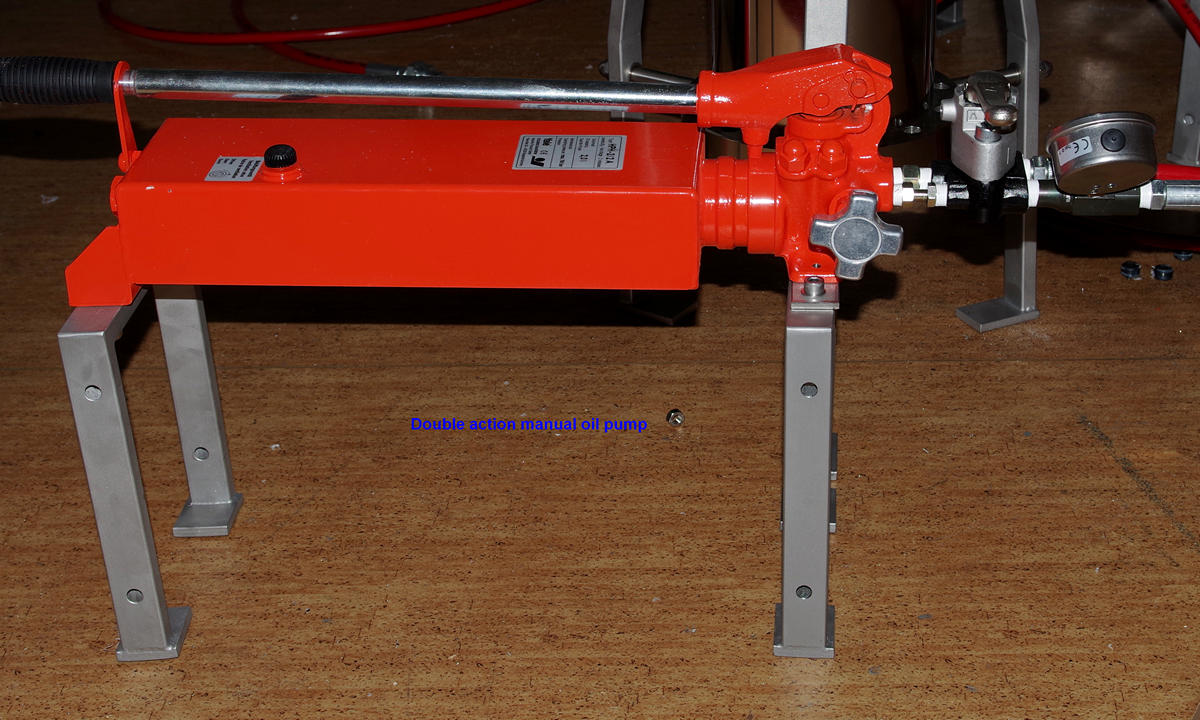

DOUBLE ACTION MANUAL OIL PUMP
img do poznamky 33

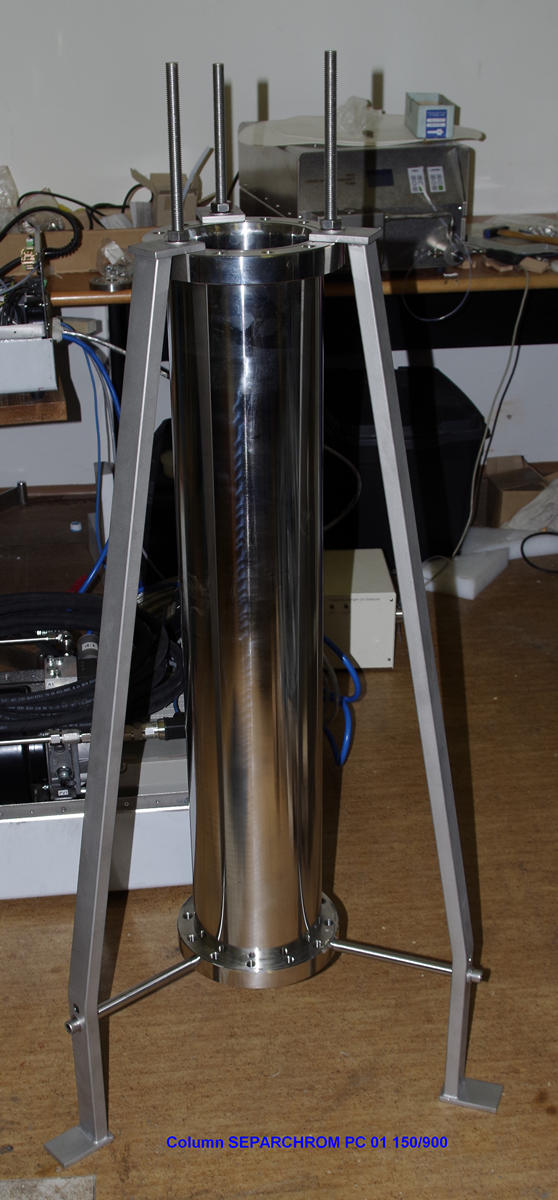

SEPARCHROM PC01 150/900
img do poznamky 34

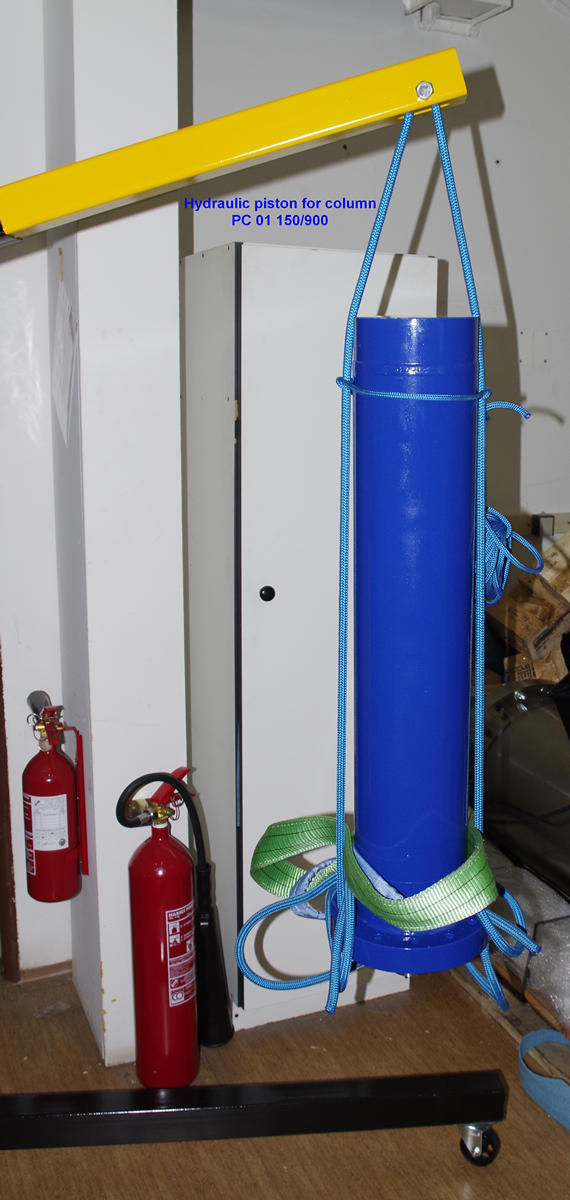

HYDRAULIC PISTON FOR COLUMN PC01 150/900
img do poznamky 35

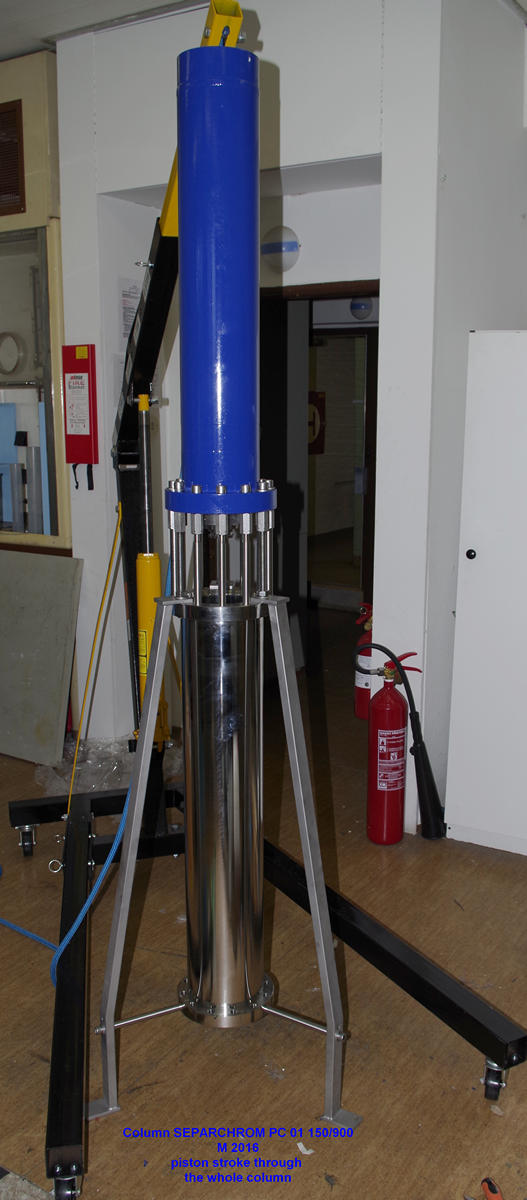

SEPARCHROM PC01 150/900 PISTON STROKE THROUGH THE WHOLE COLUMN
img do poznamky 36

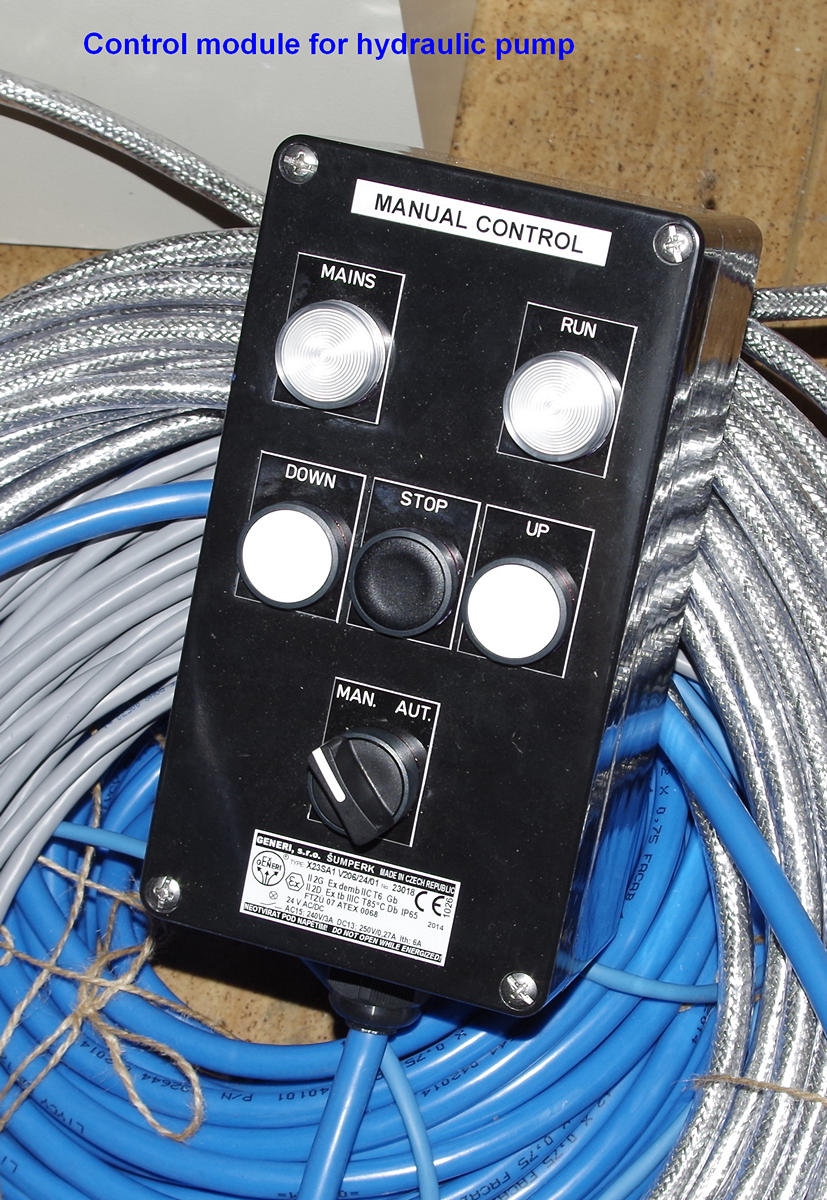

CONTROL MODULE FOR HYDRAULIC PUMP
img do poznamky 37

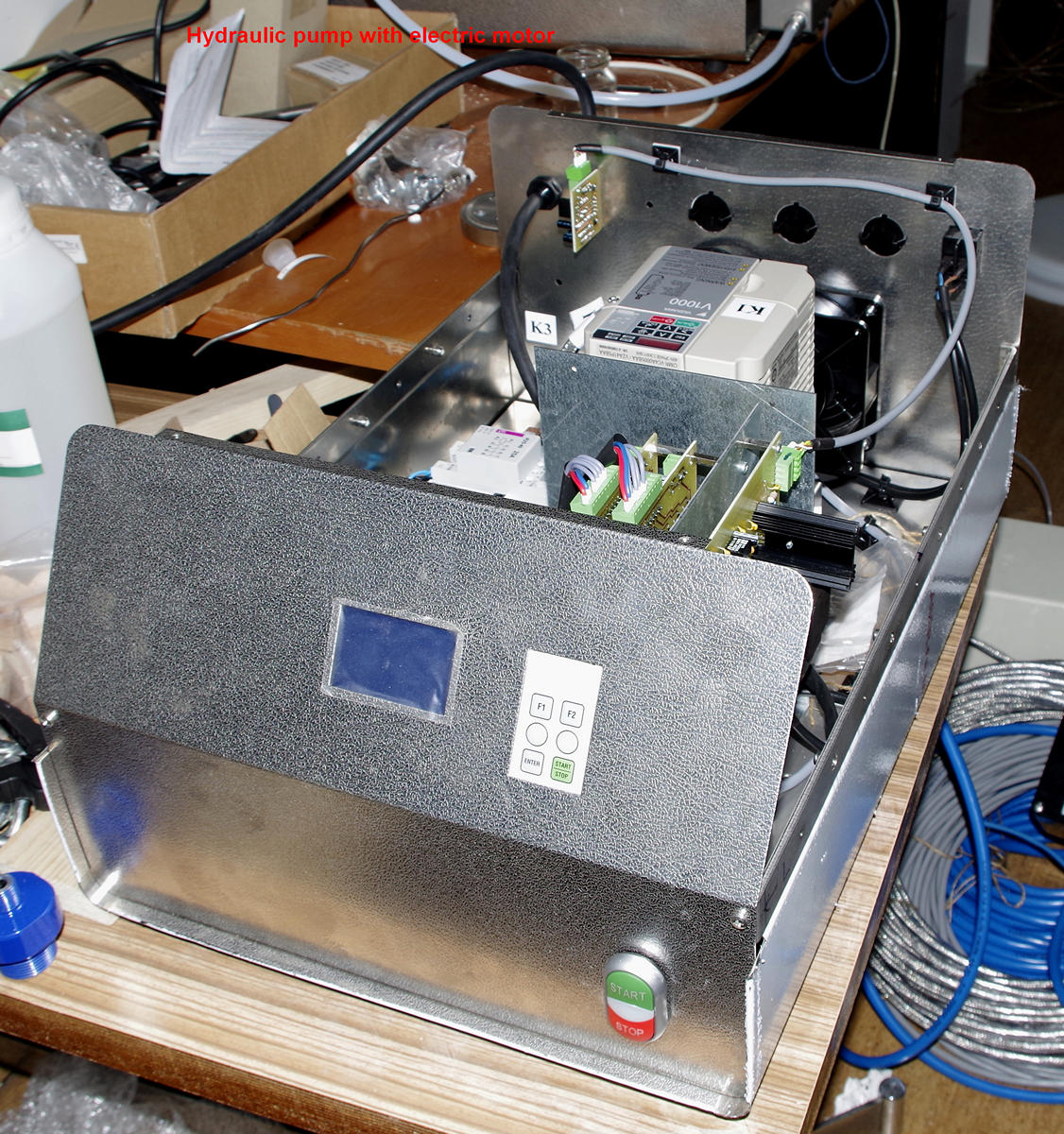

HYDRAULIC PUMP WITH ELECTRIC MOTOR
img do poznamky 38

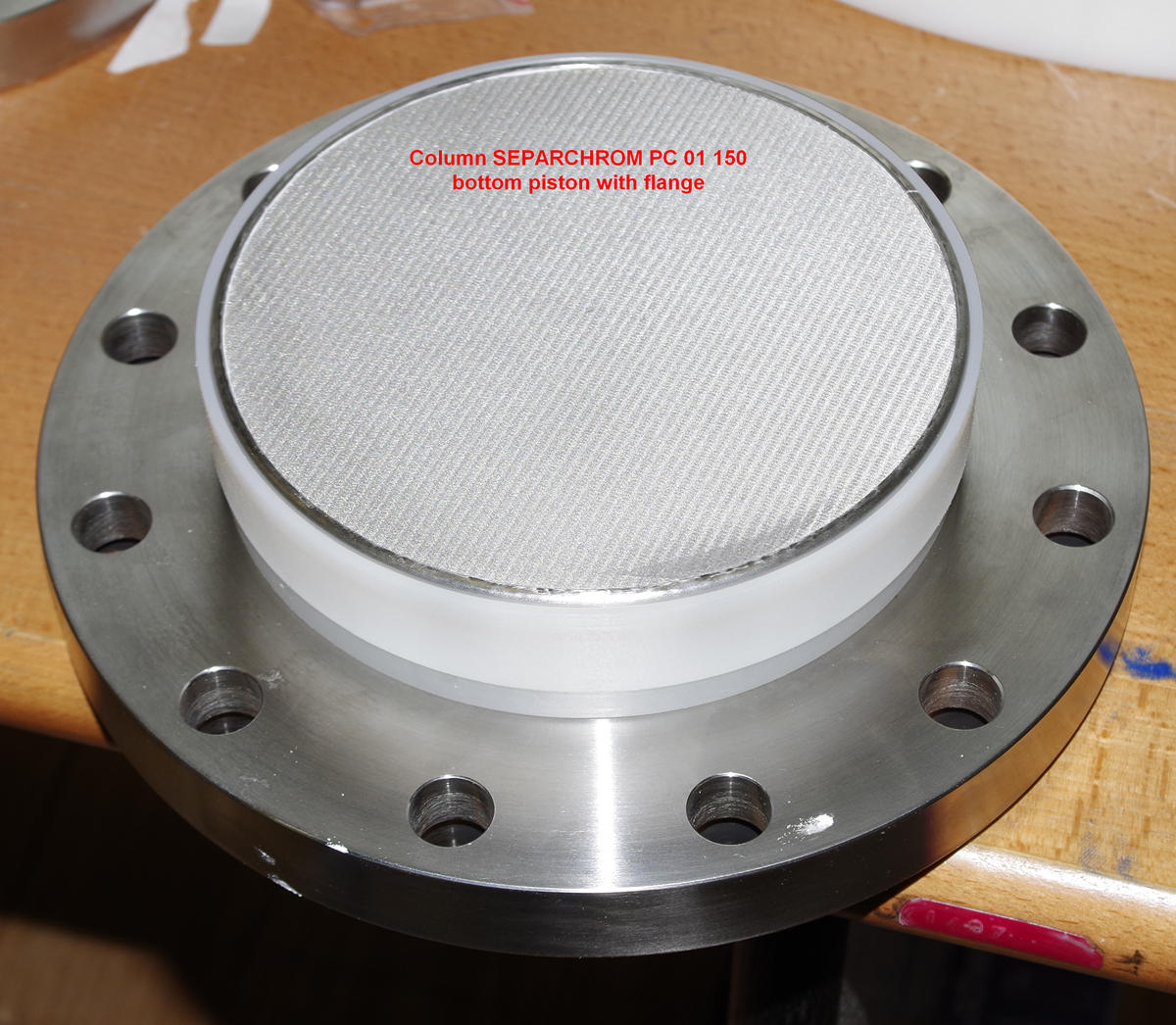

SEPARCHROM PC01 150 BOTTOM PISTON WITH FLANGE
img do poznamky 39

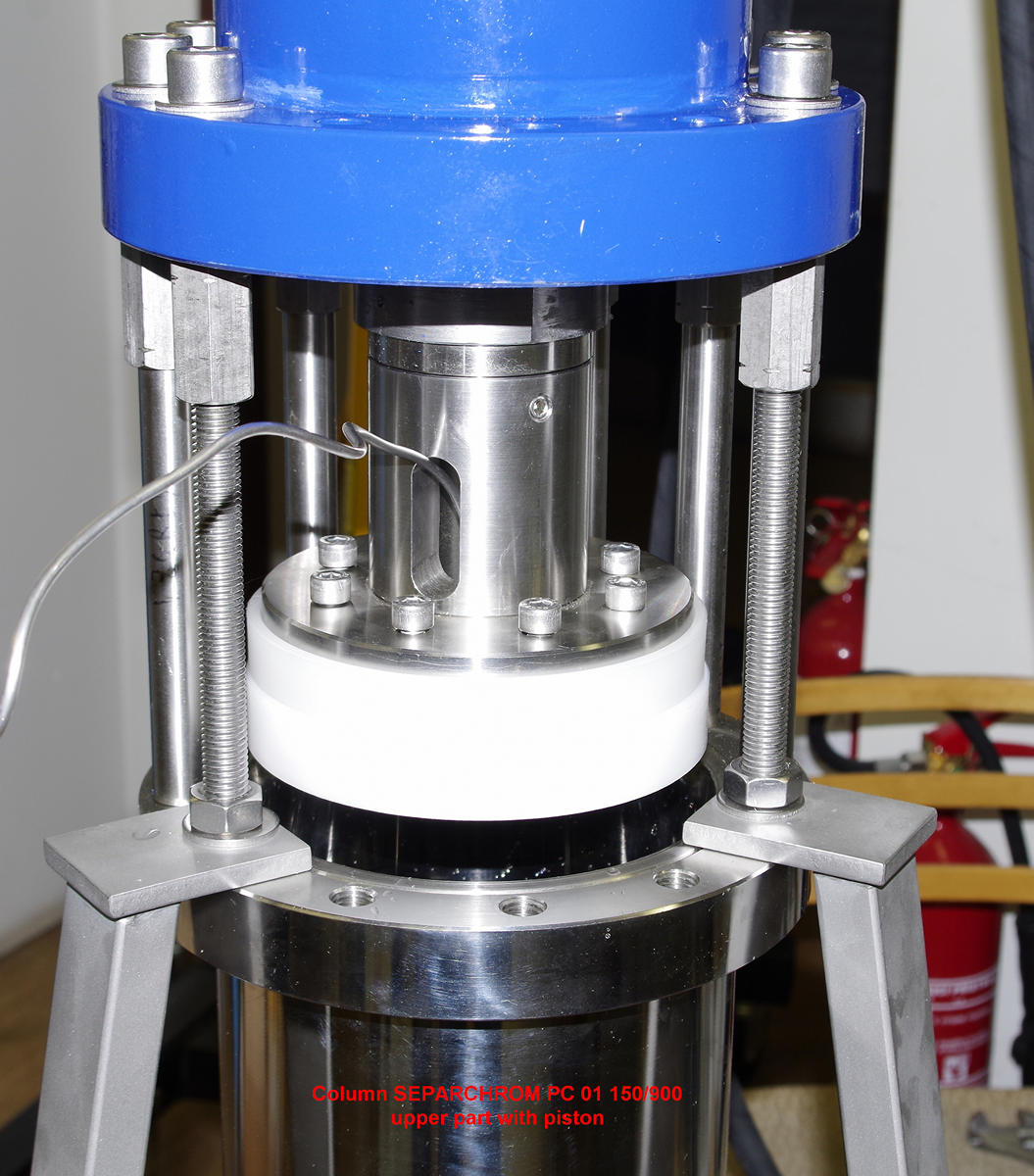

SEPARCHROM PC01 150/900 UPPER PART WITH PISTON
img do poznamky 40

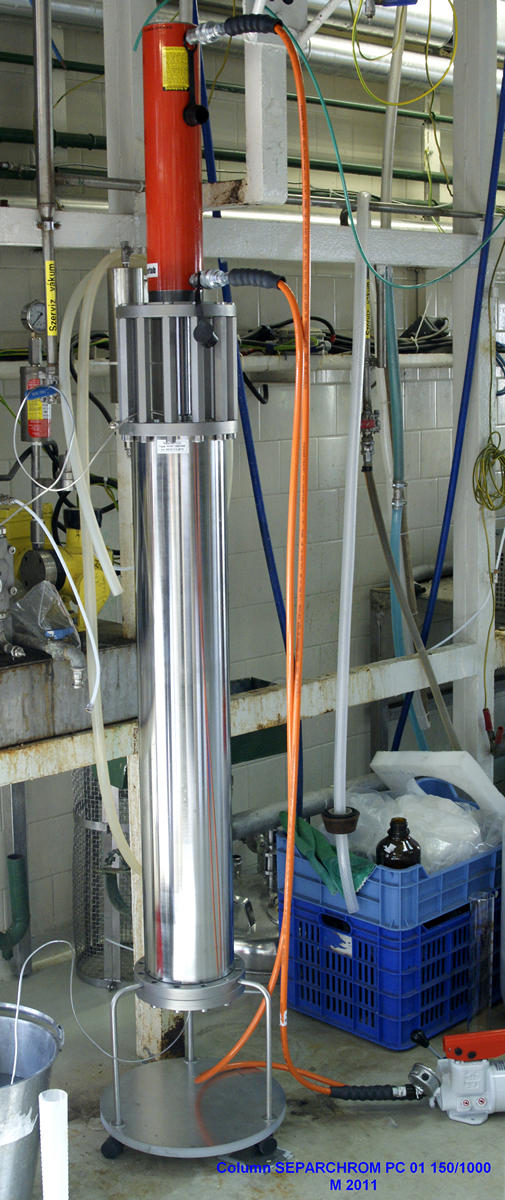

SEPARCHROM PC01 150/1000
img do poznamky 41

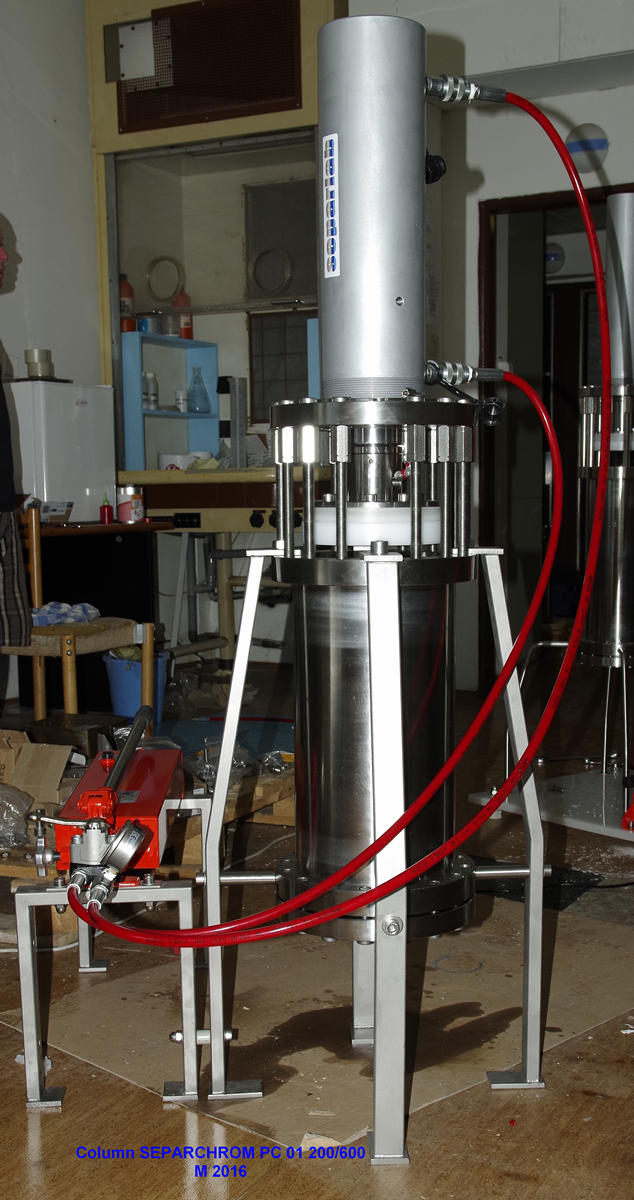

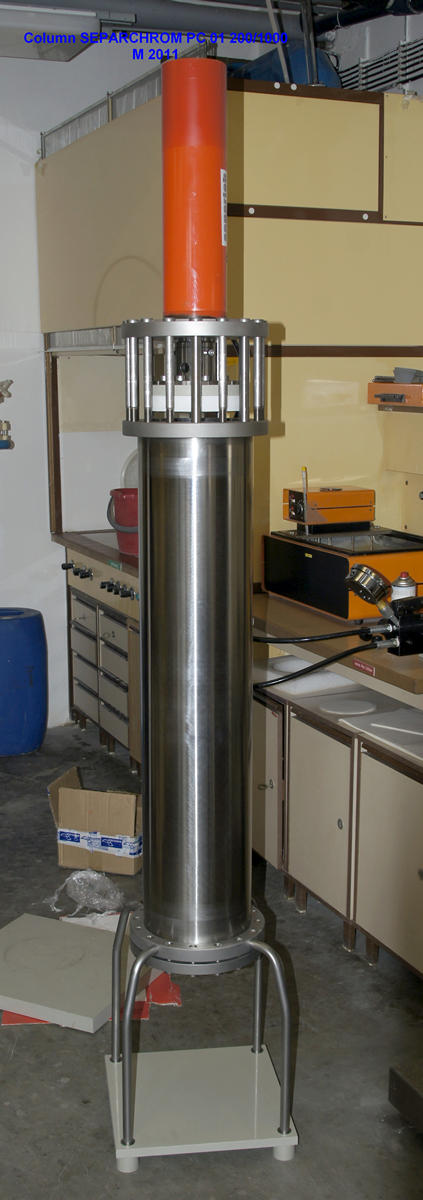

SEPARCHROM PC01 200/600
img do poznamky 42

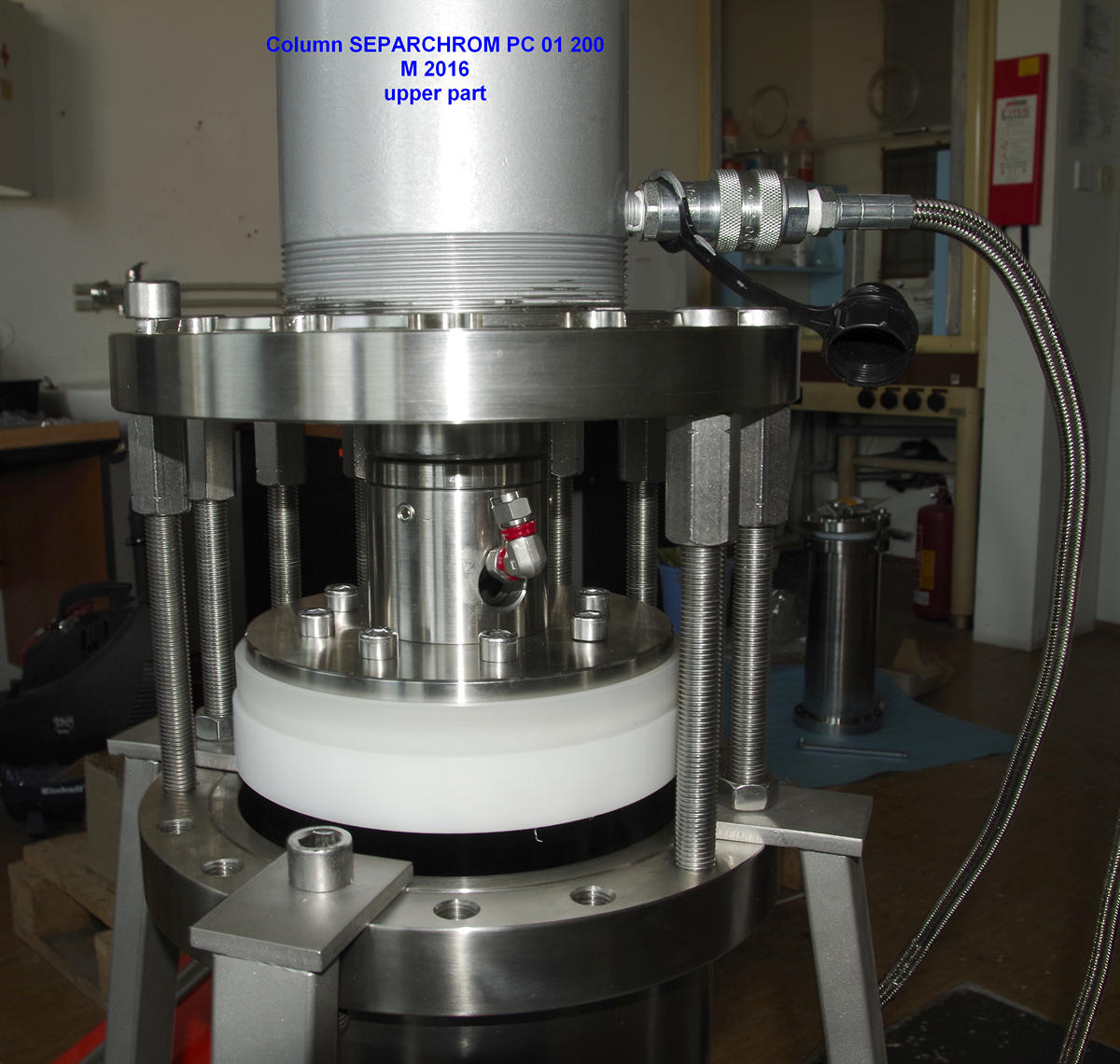

SEPARCHROM PC01 200 UPPER PART
img do poznamky 43

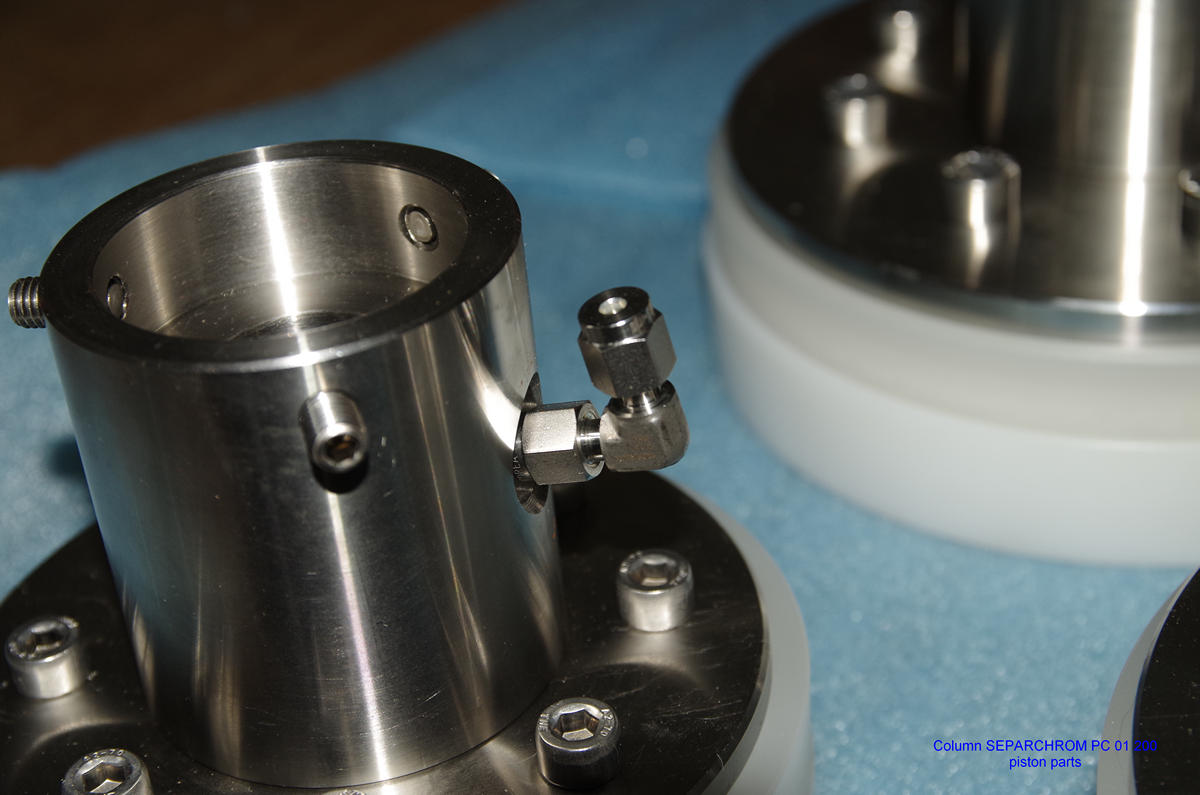

SEPARCHROM PC01 200 PISTON PARTS
img do poznamky 44

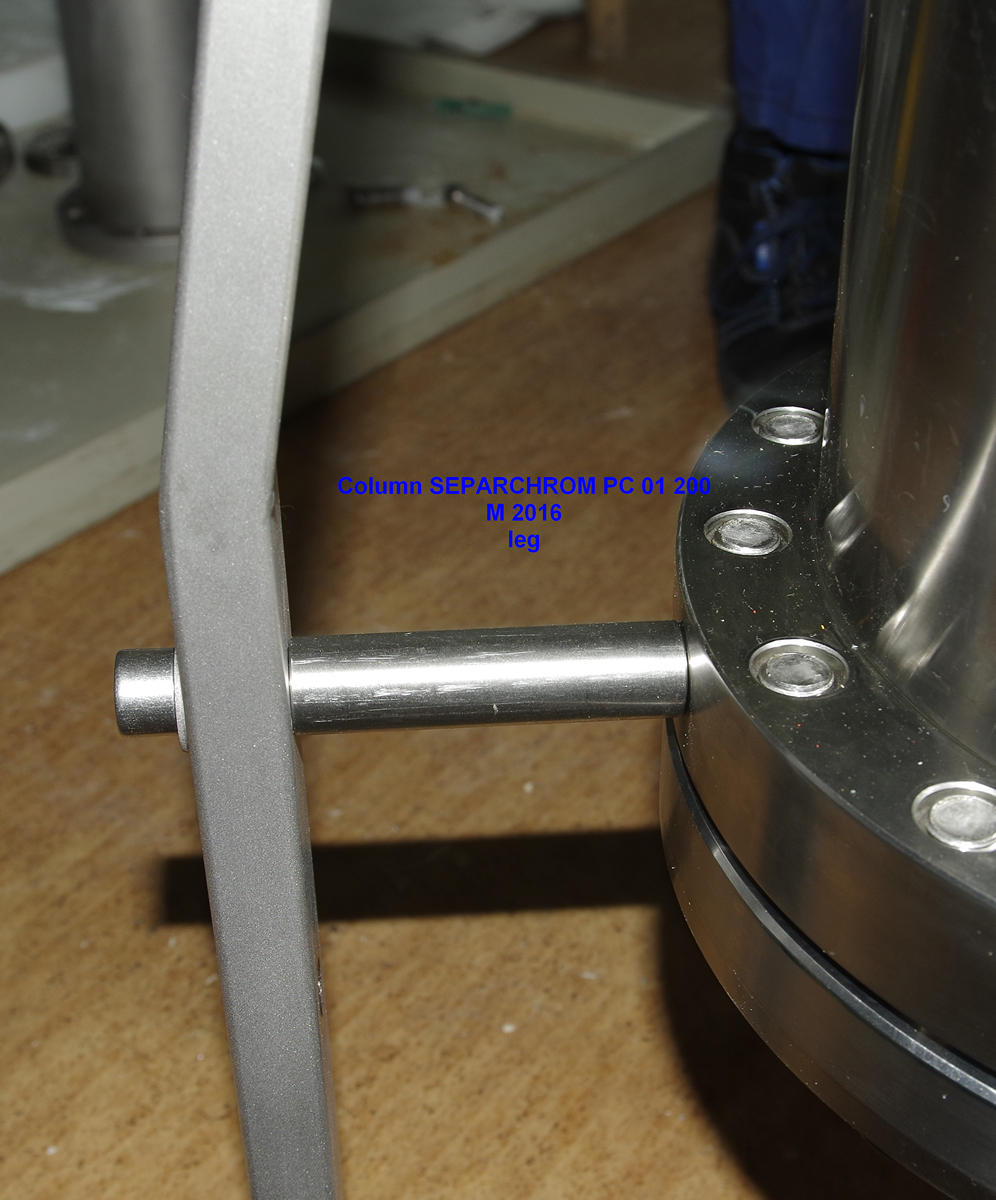

SEPARCHROM PC01 200 LEG
img do poznamky 45

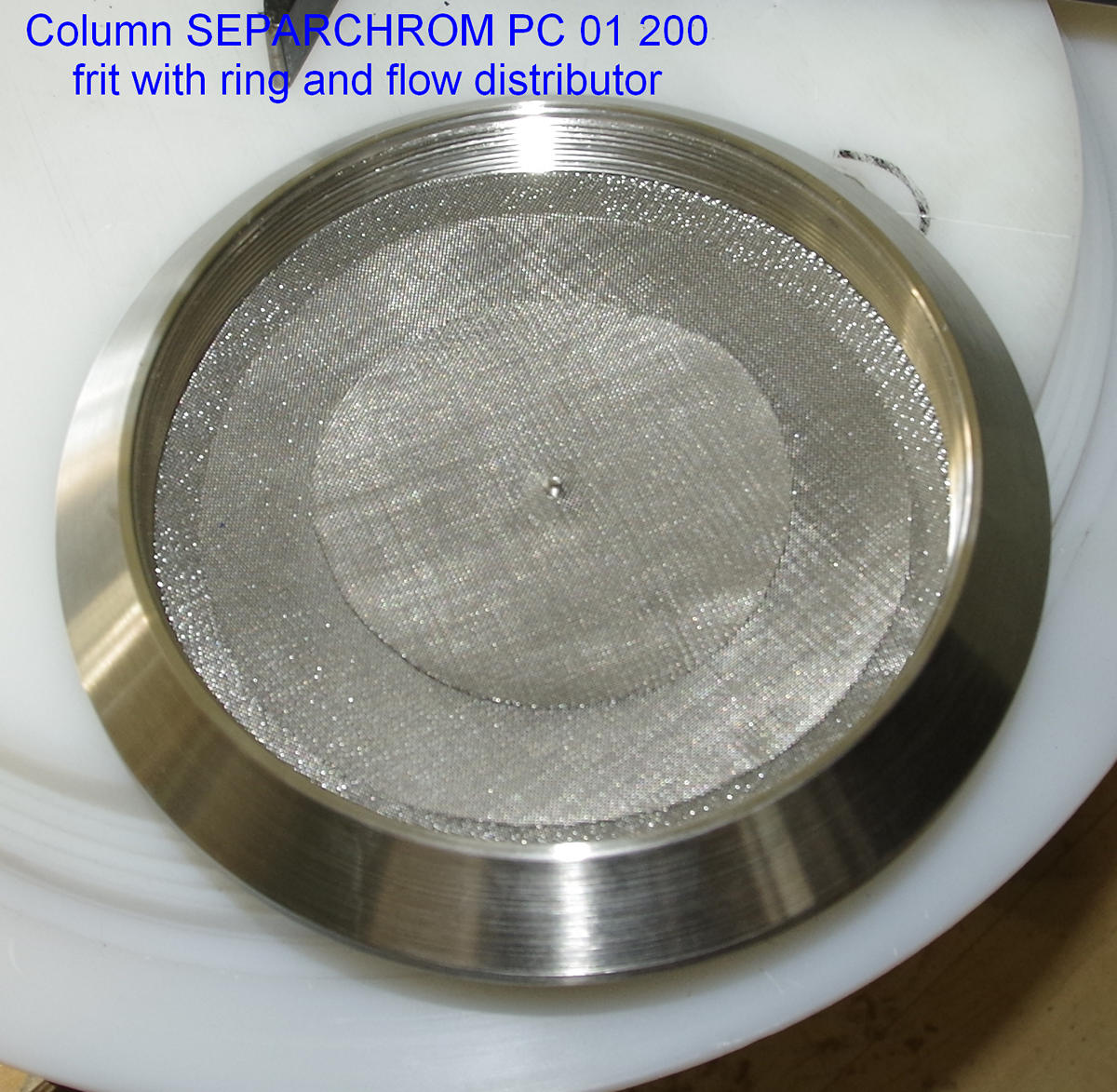

SEPARCHROM PC01 200 FRIT WITH RING AND FLOW DISTRIBUTOR
img do poznamky 46

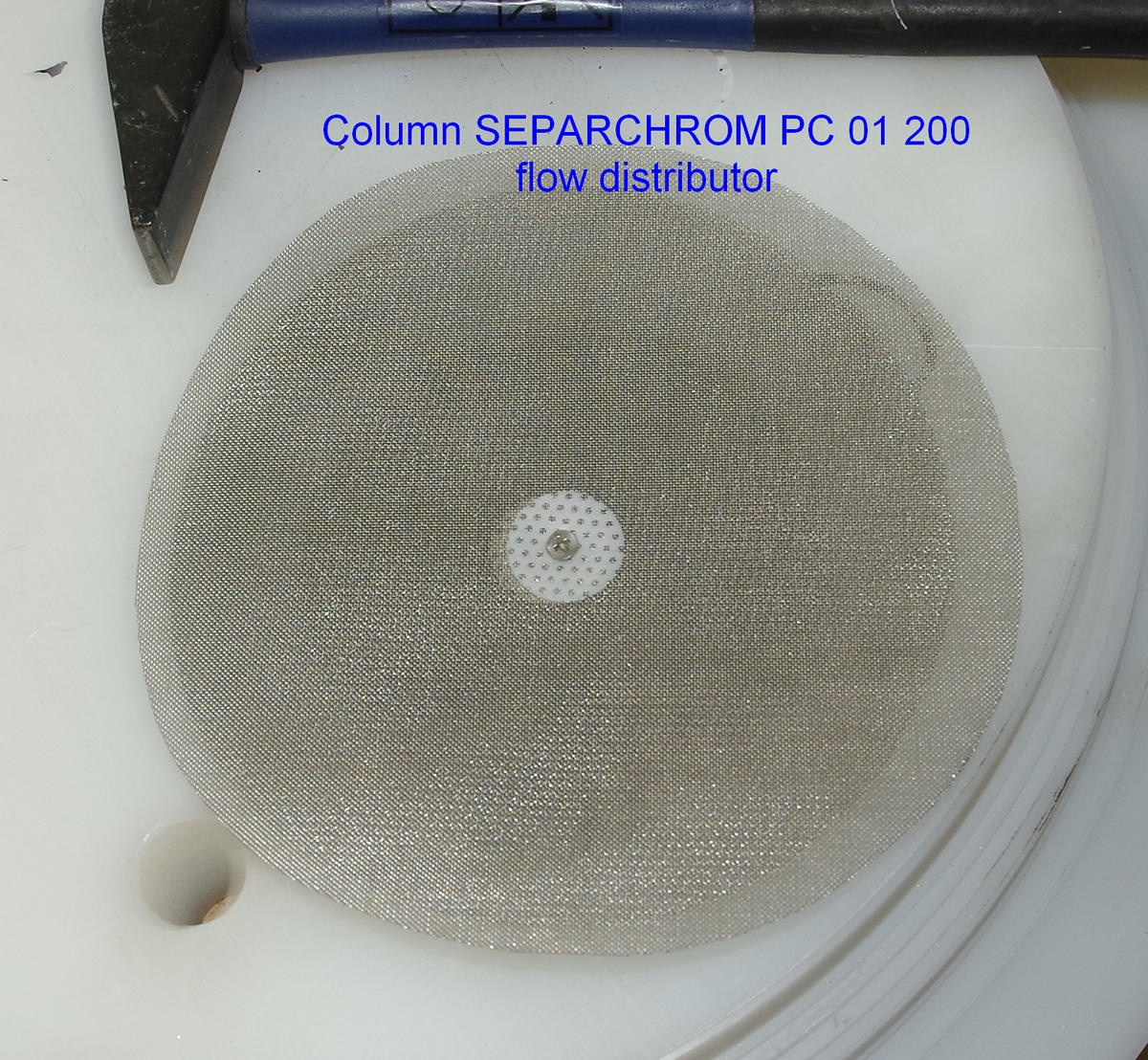

SEPARCHROM PC01 200 FLOW DISTRIBUTOR
img do poznamky 47
SEPARCHROM PC01 200/1000
img do poznamky 48

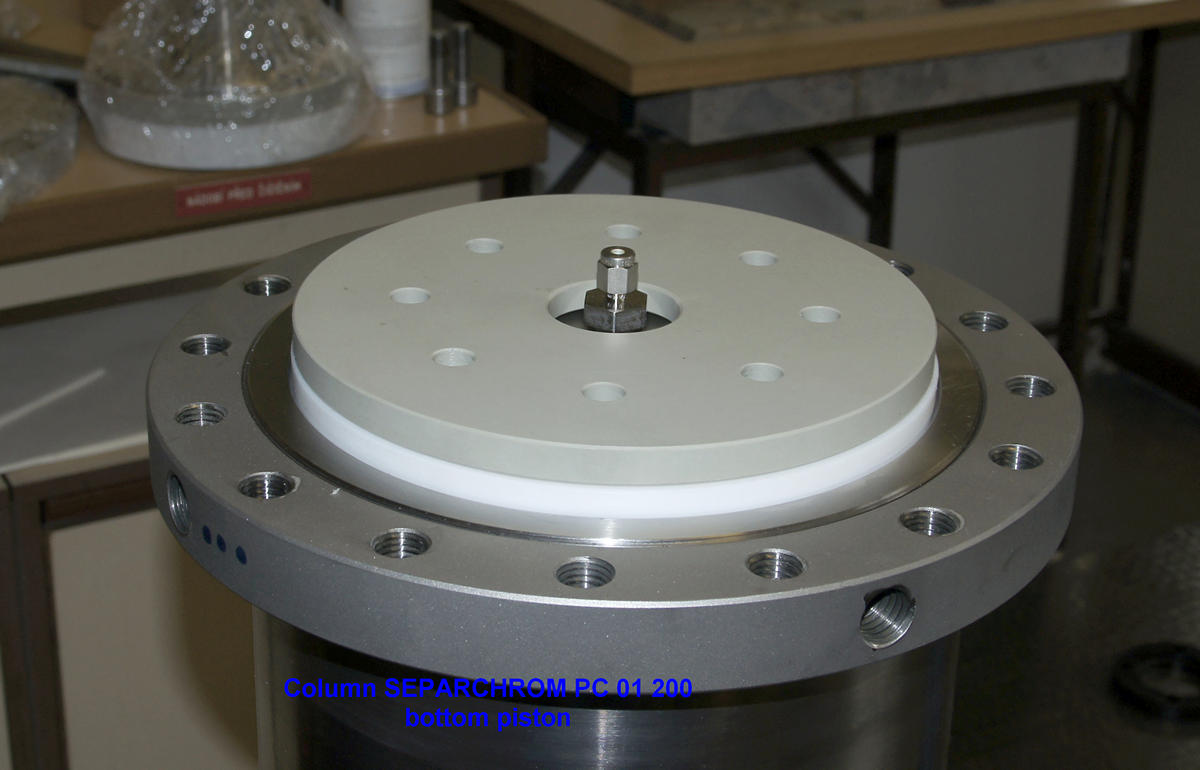

SEPARCHROM PC01 200 BOTTOM PISTON
img do poznamky 49

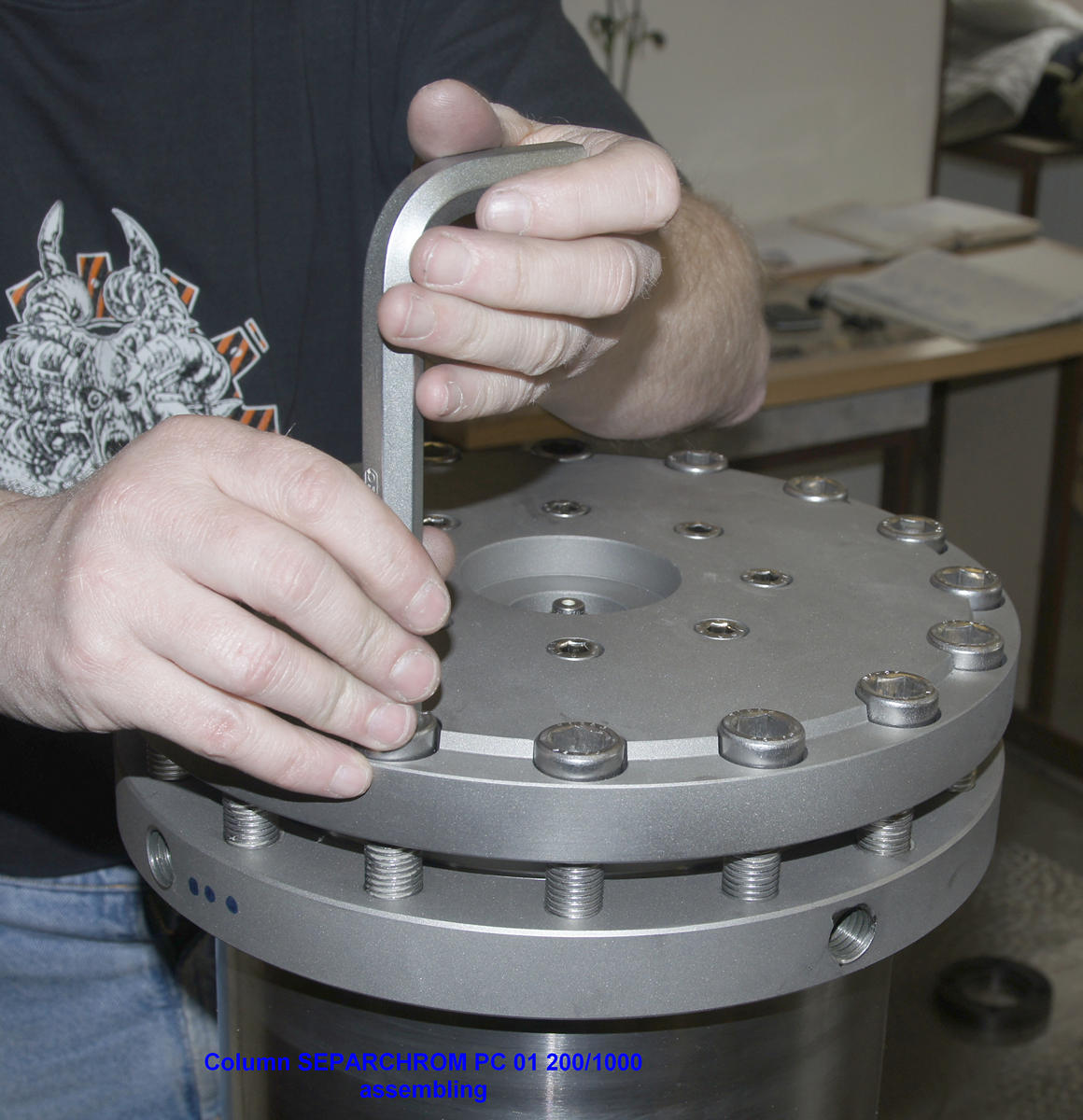

SEPARCHROM PC01 200/1000 ASSEMBLING
img do poznamky 50

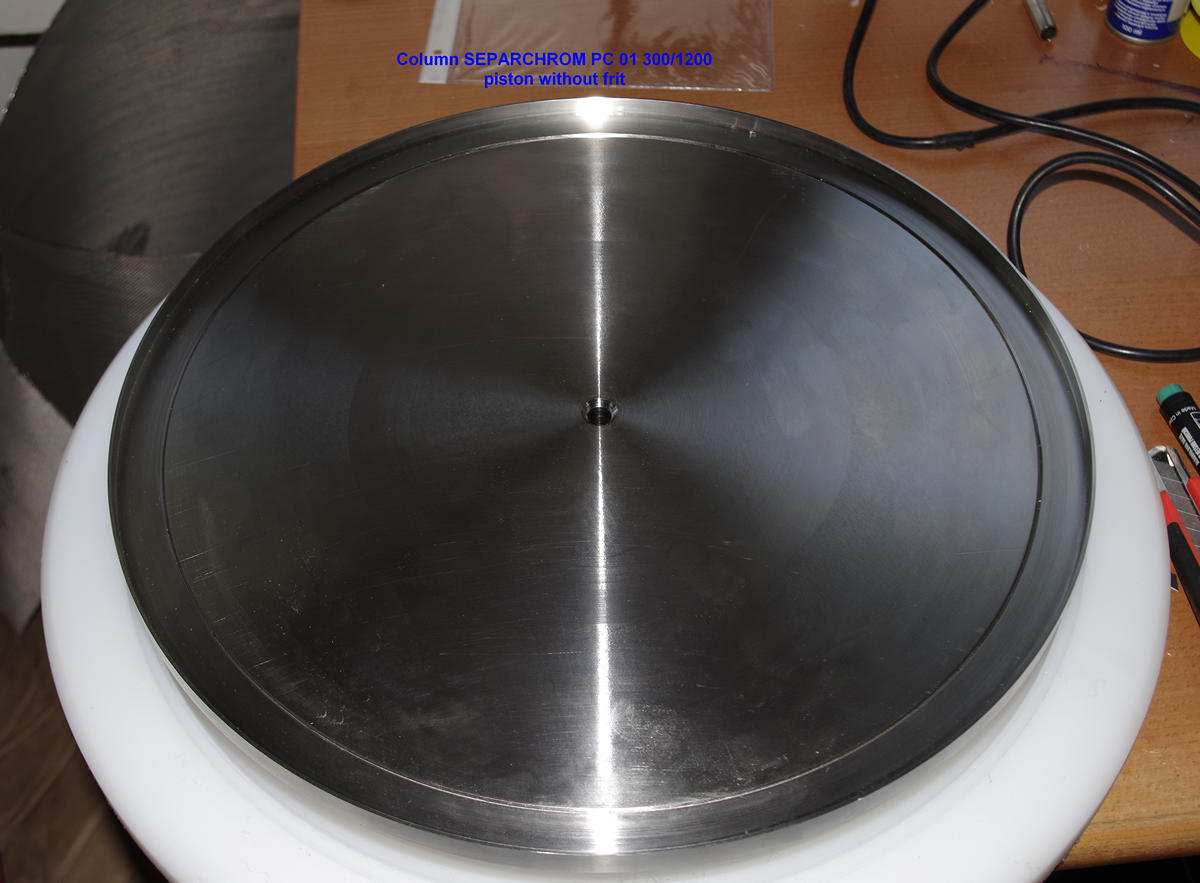

SEPARCHROM PC01 300/1200 PISTON WITHOUT FRIT
img do poznamky 51
SEPARCHROM PC01 300/1200 PISTON WITH FLOW DISTRIBUTOR
img do poznamky 52

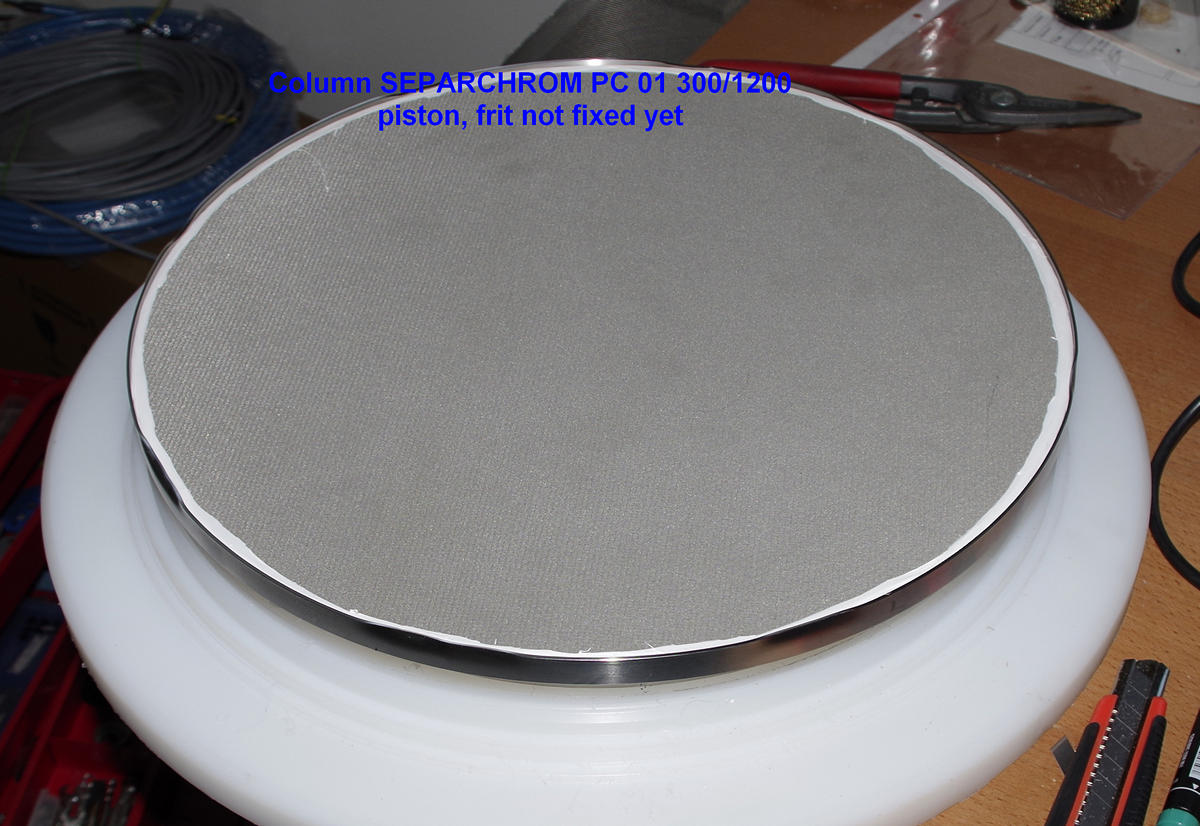

SEPARCHROM PC01 300/1200 PISTON, FRIT NOT FIXED YET
img do poznamky 53

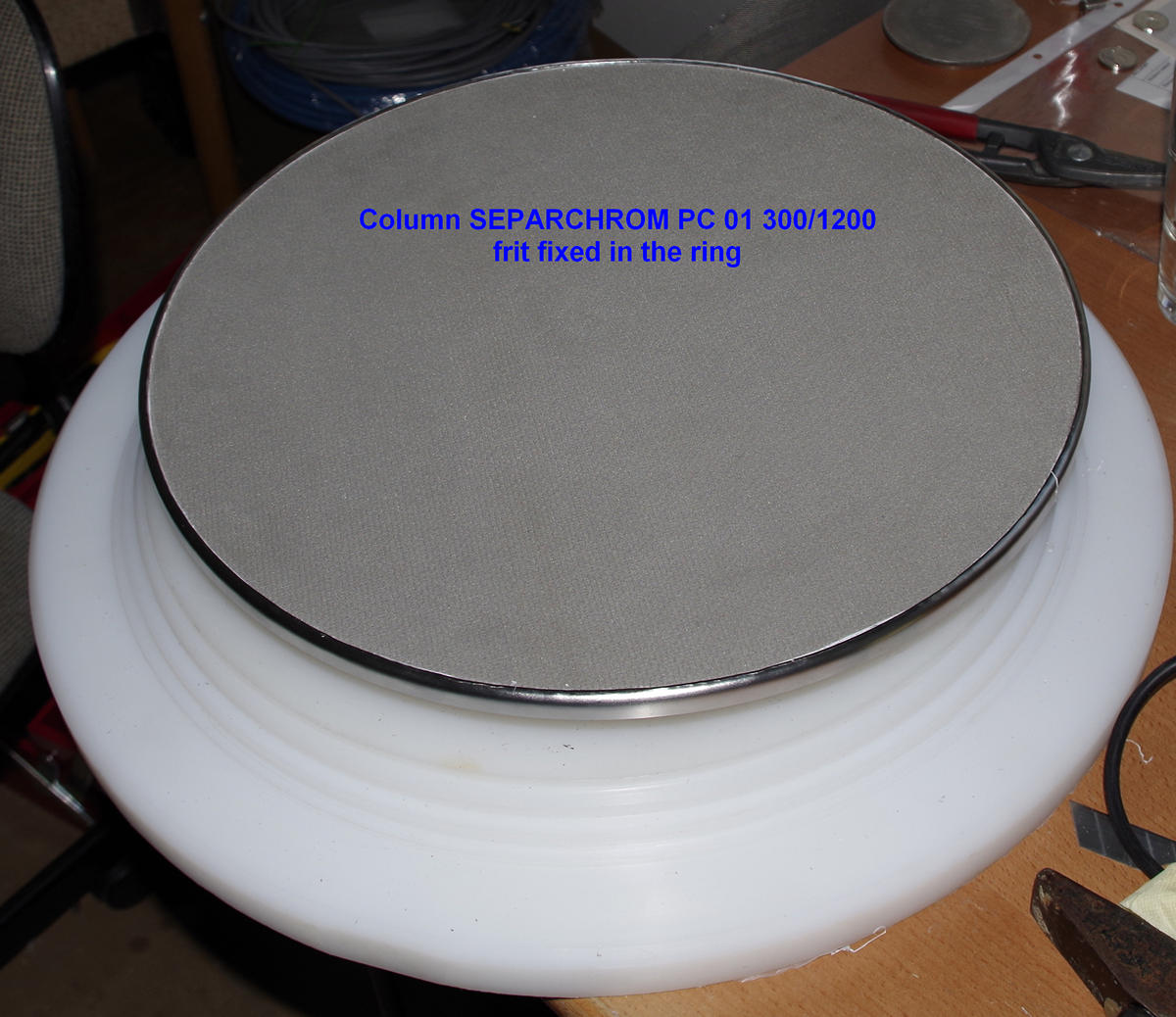

SEPARCHROM PC01 300/1200 FRIT FIXED IN THE RING
img do poznamky 54

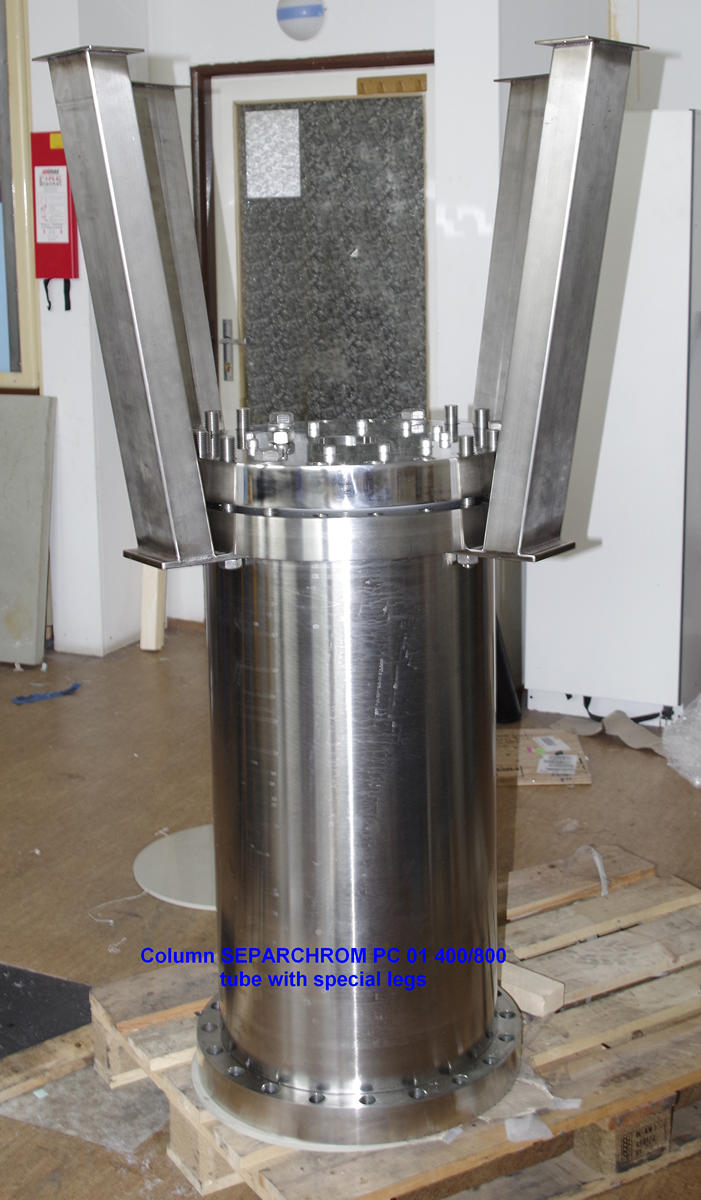

SEPARCHROM PC01 400/800 TUBE WITH SPECIAL LEGS
img do poznamky 55

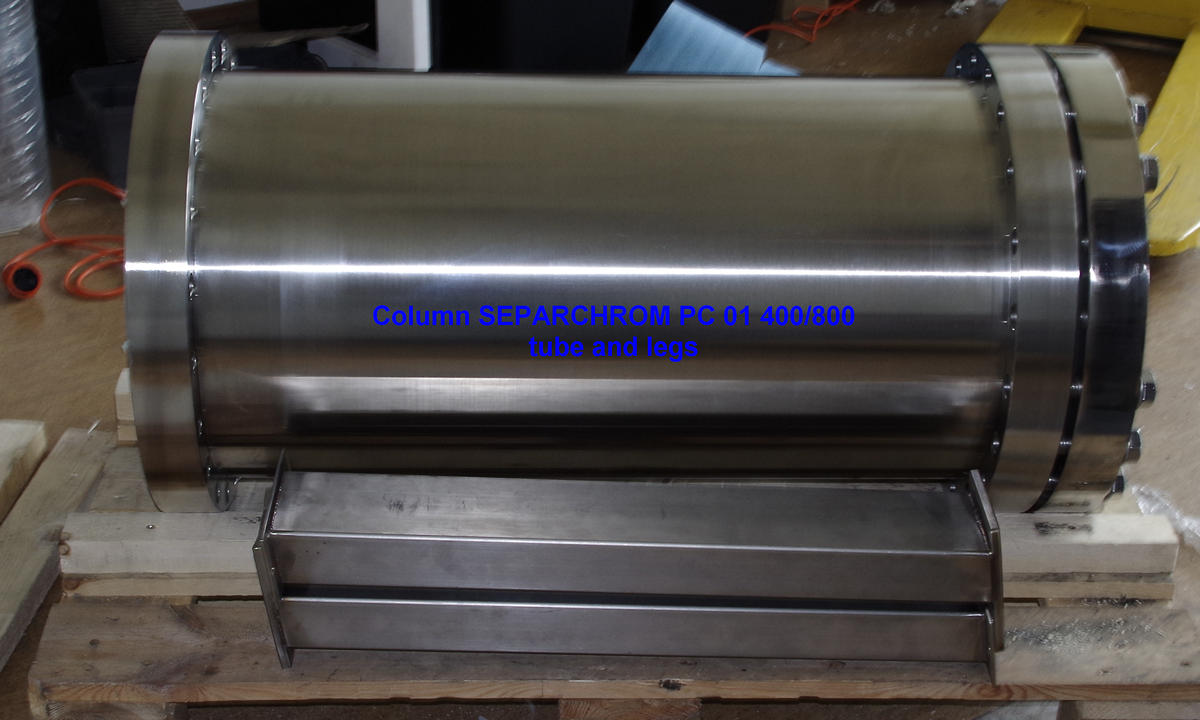

SEPARCHROM PC01 400/800 TUBE AND LEGS
img do poznamky 56
SEPARCHROM PC01 400/1200
img do poznamky 57

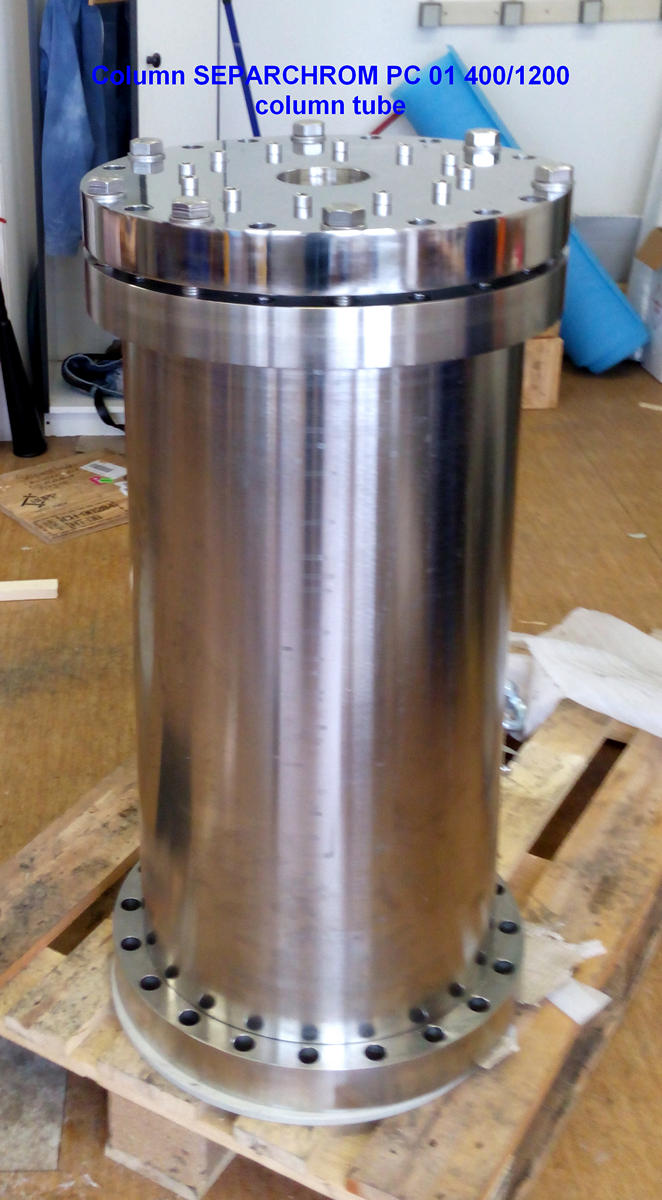

SEPARCHROM PC01 400/1200 COLUMN TUBE
img do poznamky 58

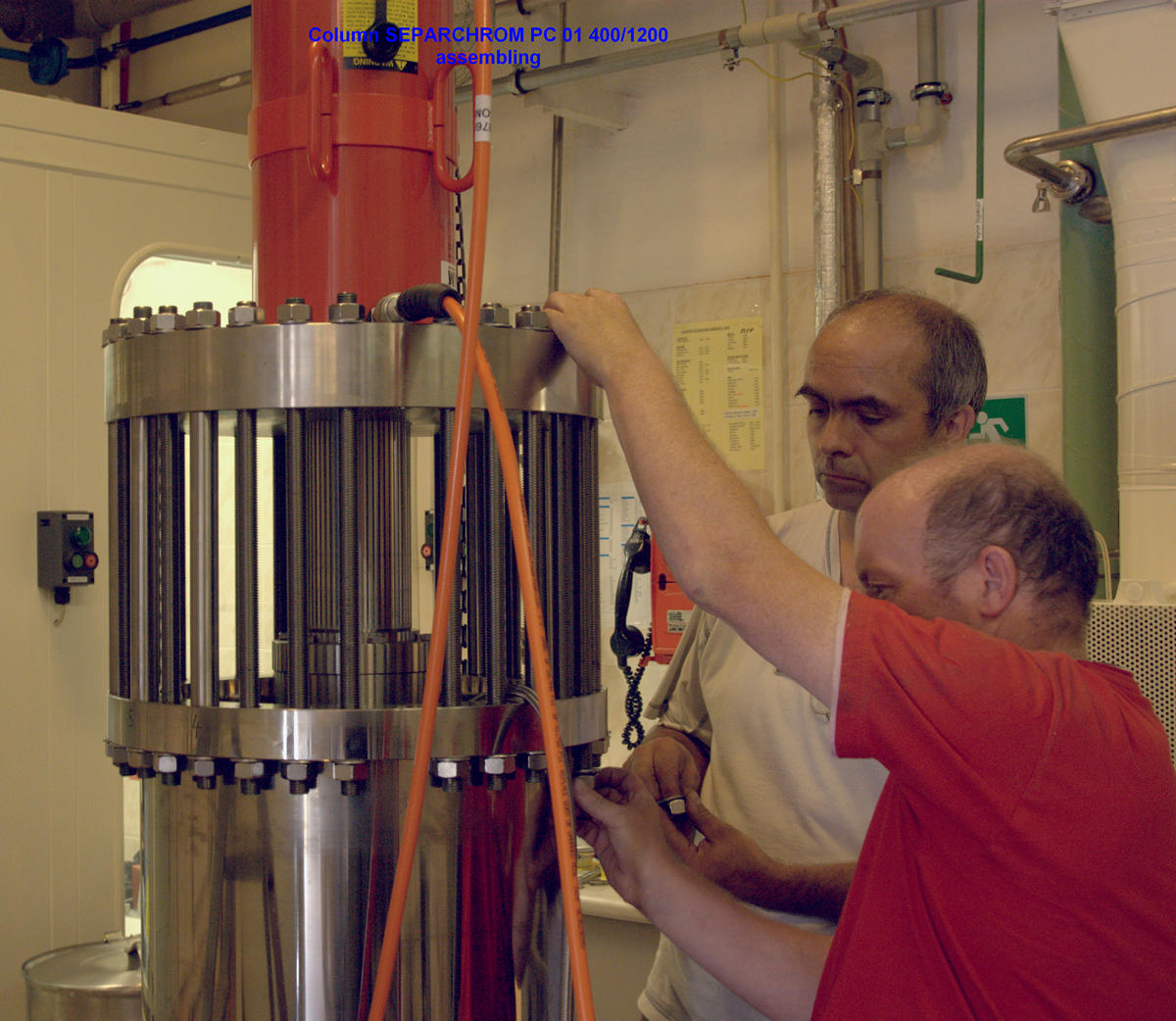

SEPARCHROM PC01 400/1200 ASSEMBLING
img do poznamky 59

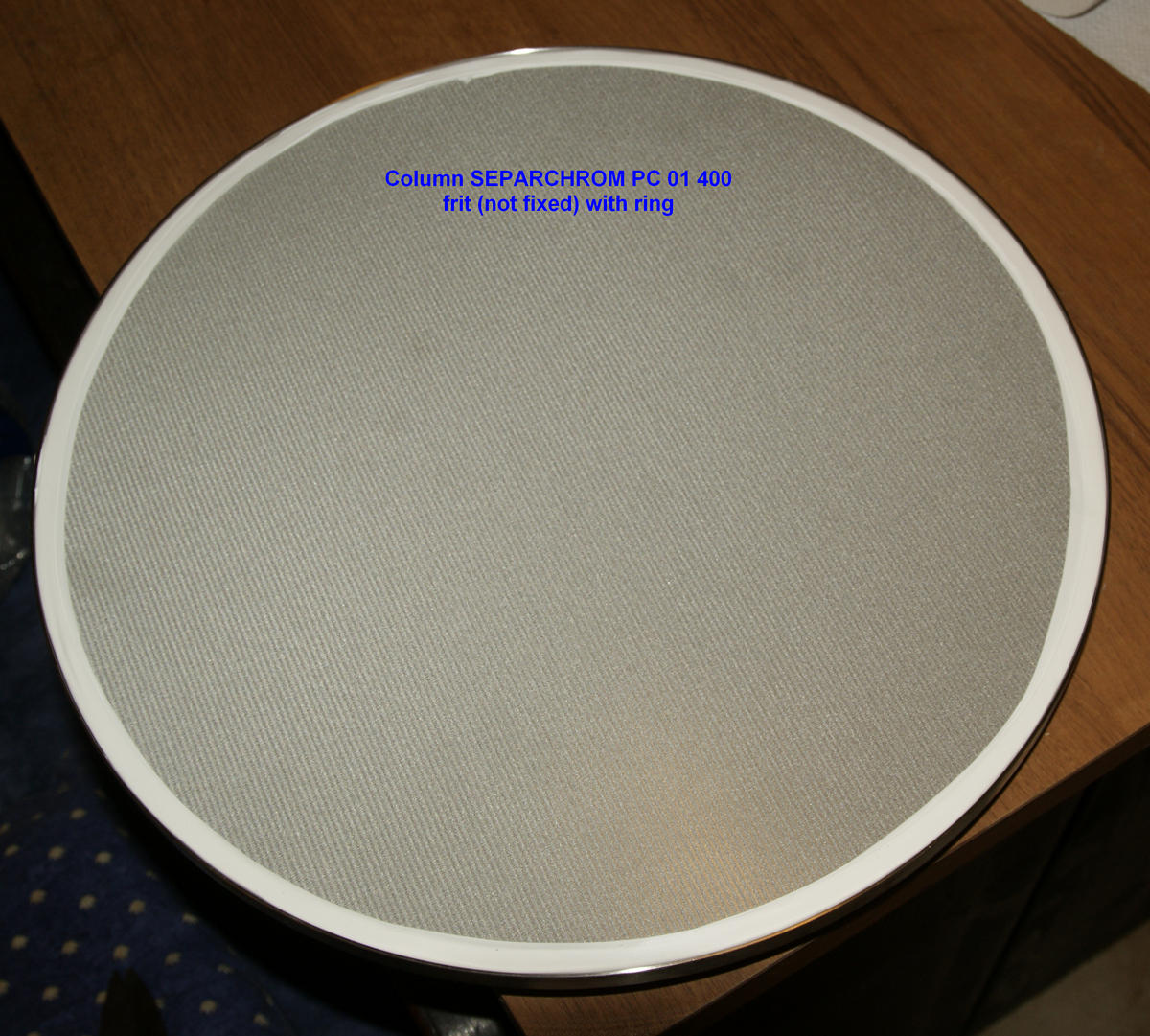

SEPARCHROM PC01 400 FRIT (NOT FIXED) WITH RING
img do poznamky 60

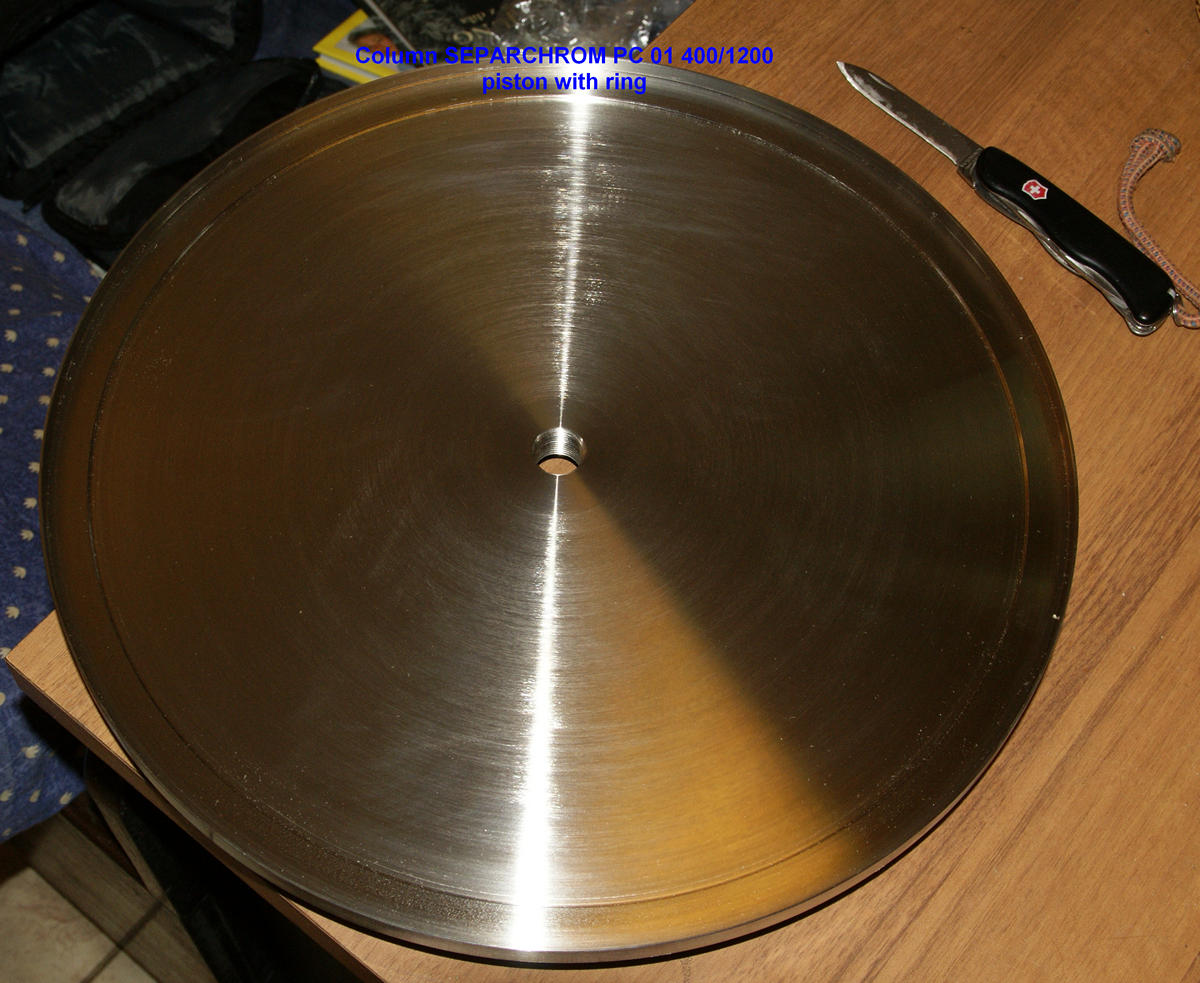

SEPARCHROM PC01 400/1200 PISTON WITH RING
img do poznamky 61

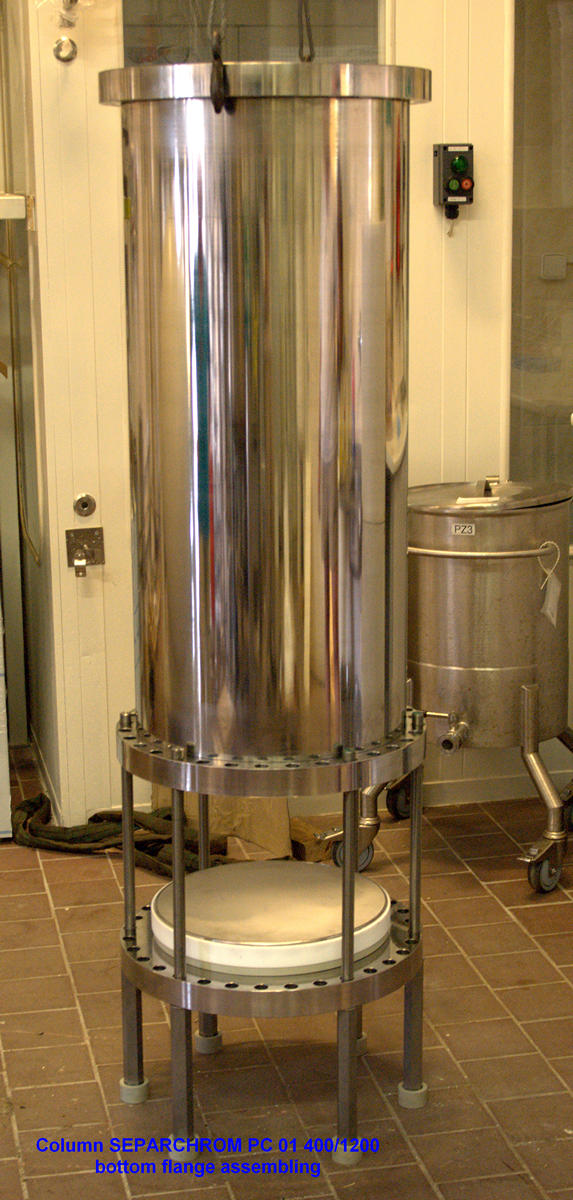

SEPARCHROM PC01 400/1200 BOTTOM FLANGE ASSEMBLING
img do poznamky 62

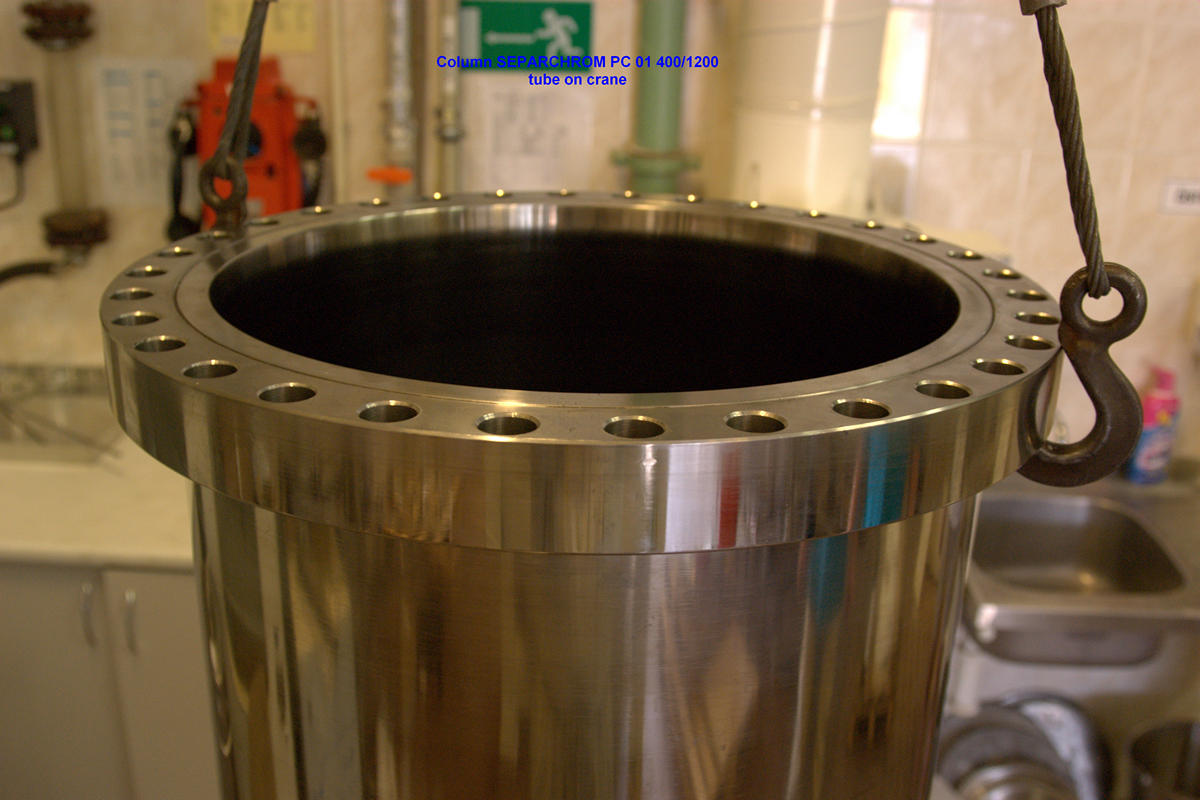

SEPARCHROM PC01 400/1200 TUBE ON CRANE
img do poznamky 63

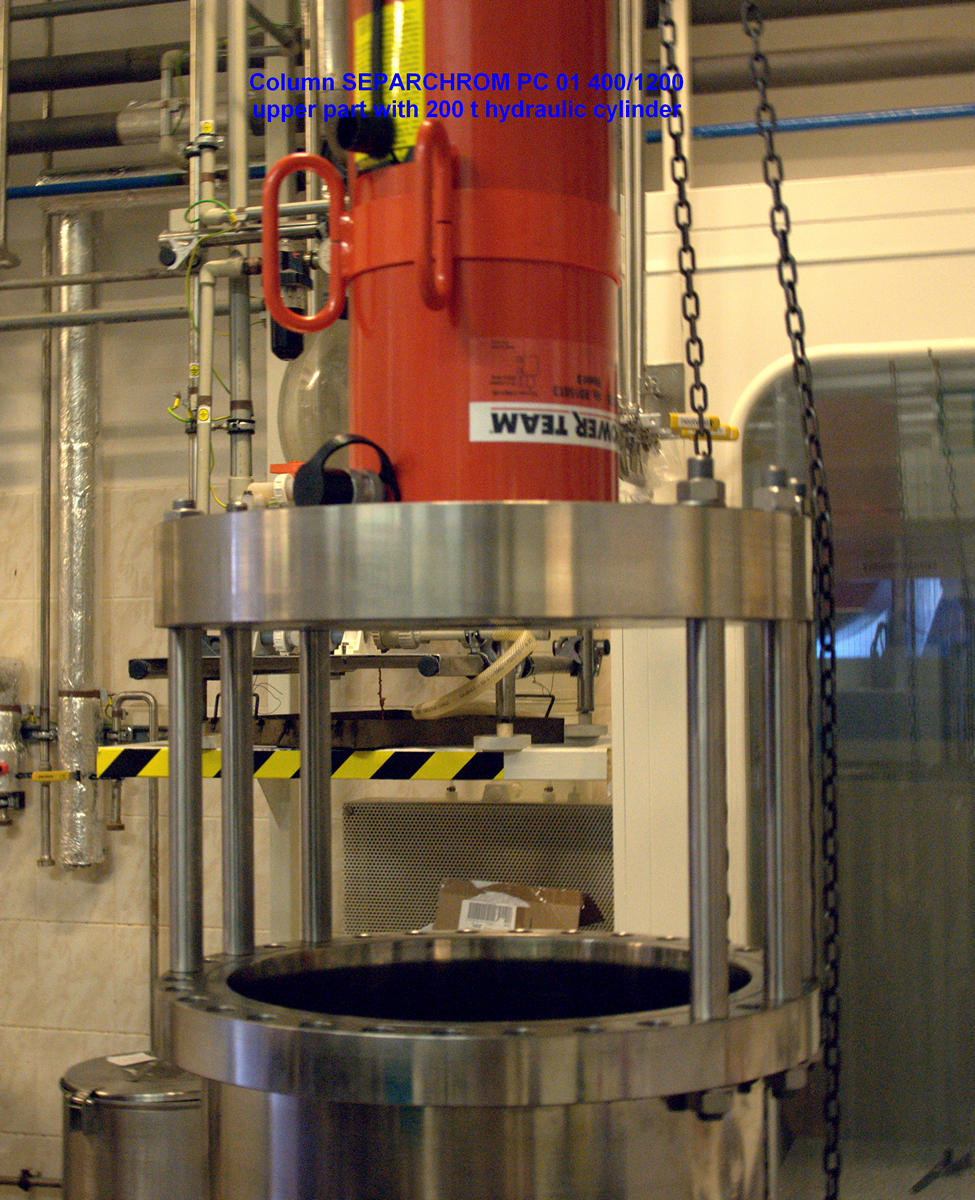

SEPARCHROM PC01 400/1200 UPPER PART WITH 200t HYDRAULIC CYLINDER
img do poznamky 64

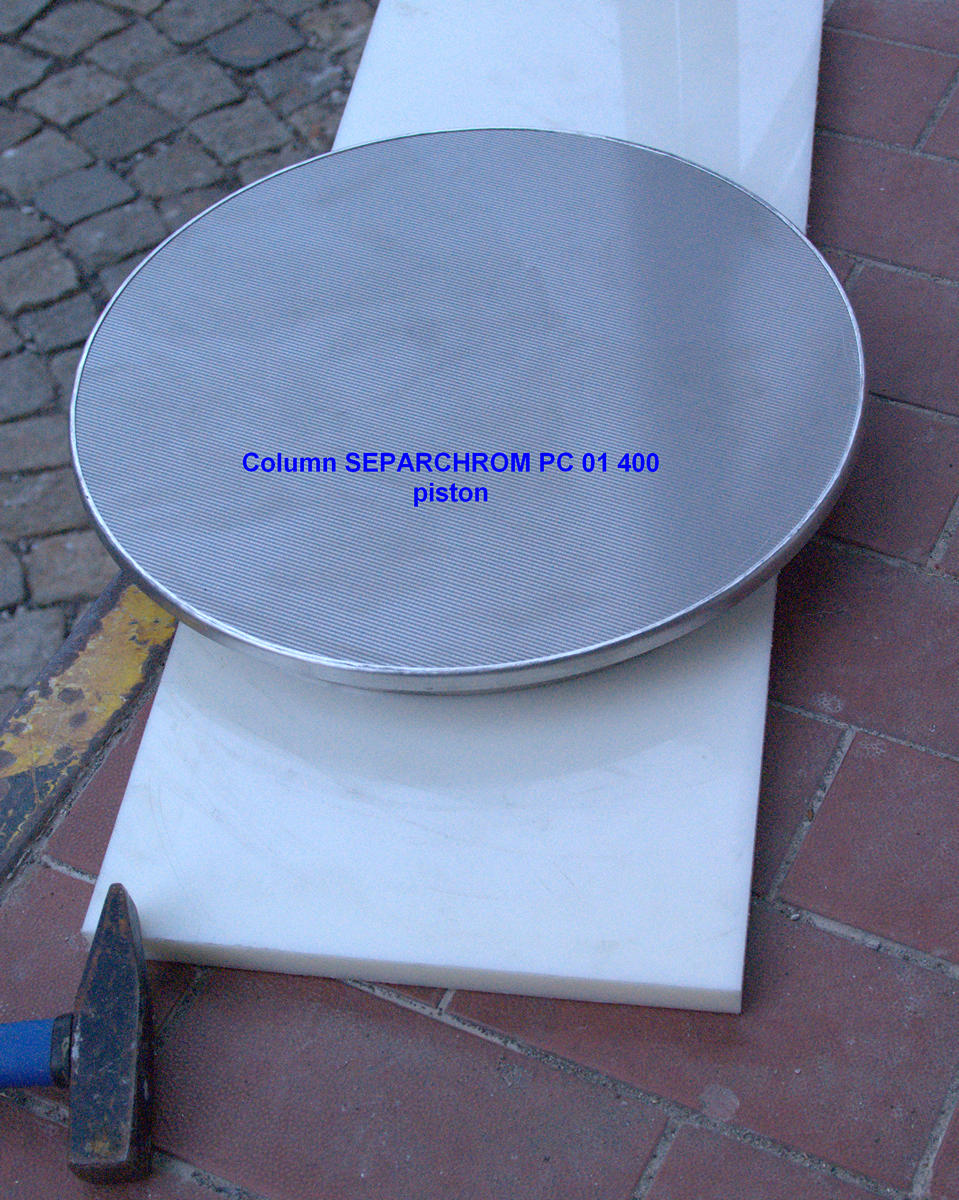

SEPARCHROM PC01 400 PISTON
