MPLC COLUMNS FOR PREP CHROMATOGRAPHY
Columns for Medium Pressure without bed compression
Separchrom PC06 are intended for applications where sorbent does not change the volume during the use. Columns are equipped with frits and distributors incorporated in to input and output flanges. They are made of polished stainless steel tubes and equipped with non woven polypropylene frits with porosity 10 µm. Flow distributors are incorporated in to column flanges.
Columns for laboratory applications
Type of column | I.D. mm |
Length mm |
Pressure bar |
Note |
---|---|---|---|---|
SEPARCHROM PC06 -25/50 | 25 | 50 | 100 | |
SEPARCHROM PC06 -25/250 | 25 | 250 | 100 | |
SEPARCHROM PC06 -50/250 | 50 | 250 | 50 |
.
|
SEPARCHROM PC06 -50/500 | 50 | 500 | 50 | |
SEPARCHROM PC06 -100/250 | 100 | 250 | 40 | |
SEPARCHROM PC06 -100/500 | 100 | 500 | 40 |
Columns for industrial applications
Type of column | I.D. mm |
Length mm |
Pressure bar |
Note |
---|---|---|---|---|
SEPARCHROM PC06-100/250 | 100 | 250 | 40 | |
SEPARCHROM PC06-100/500 | 100 | 500 | 40 | |
SEPARCHROM PC06-150/300 | 150 | 300 | 40 | |
SEPARCHROM PC06-150/600 | 150 | 600 | 40 | |
SEPARCHROM PC06-200/400 | 200 | 400 | 35 | |
SEPARCHROM PC06-200/800 | 200 | 800 | 35 | |
SEPARCHROM PC06-300/300 | 300 | 300 | 30 | |
SEPARCHROM PC06-300/600 | 300 | 600 | 30 | |
SEPARCHROM PC06-400/200 | 400 | 200 | 20 |
.
|
SEPARCHROM PC06-400/400 | 400 | 400 | 20 | |
SEPARCHROM PC06-400/800 | 400 | 800 | 20 | |
SEPARCHROM PC06-500/500 | 500 | 500 | 10 | |
SEPARCHROM PC06-500/1000 | 500 | 1000 | 10 | |
SEPARCHROM PC06-600/600 | 600 | 600 | 5 | |
SEPARCHROM PC06-600/1200 | 600 | 1200 | 5 |
img do poznamky 1

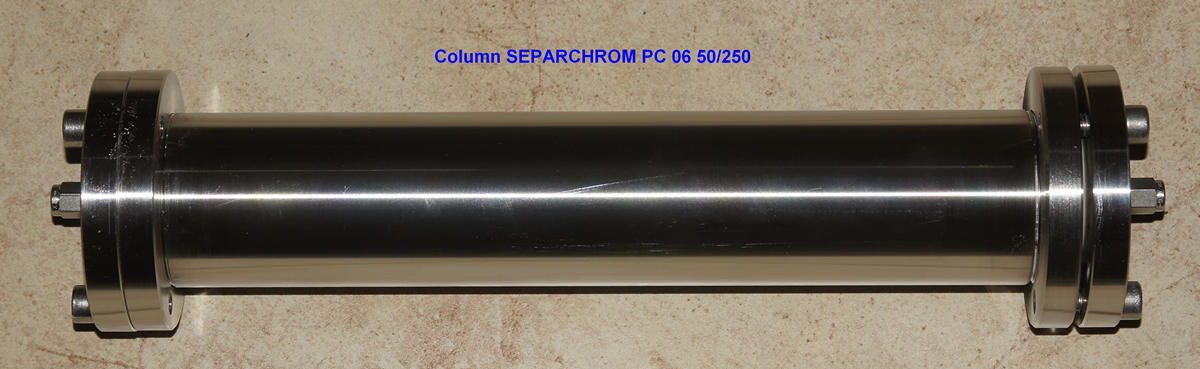

![SEPARCHROM PC06 50/250 IMG-1 SEPARCHROM PC06 50/250](/sites/default/files/2021-02/6050025001.jpg)
img do poznamky 2

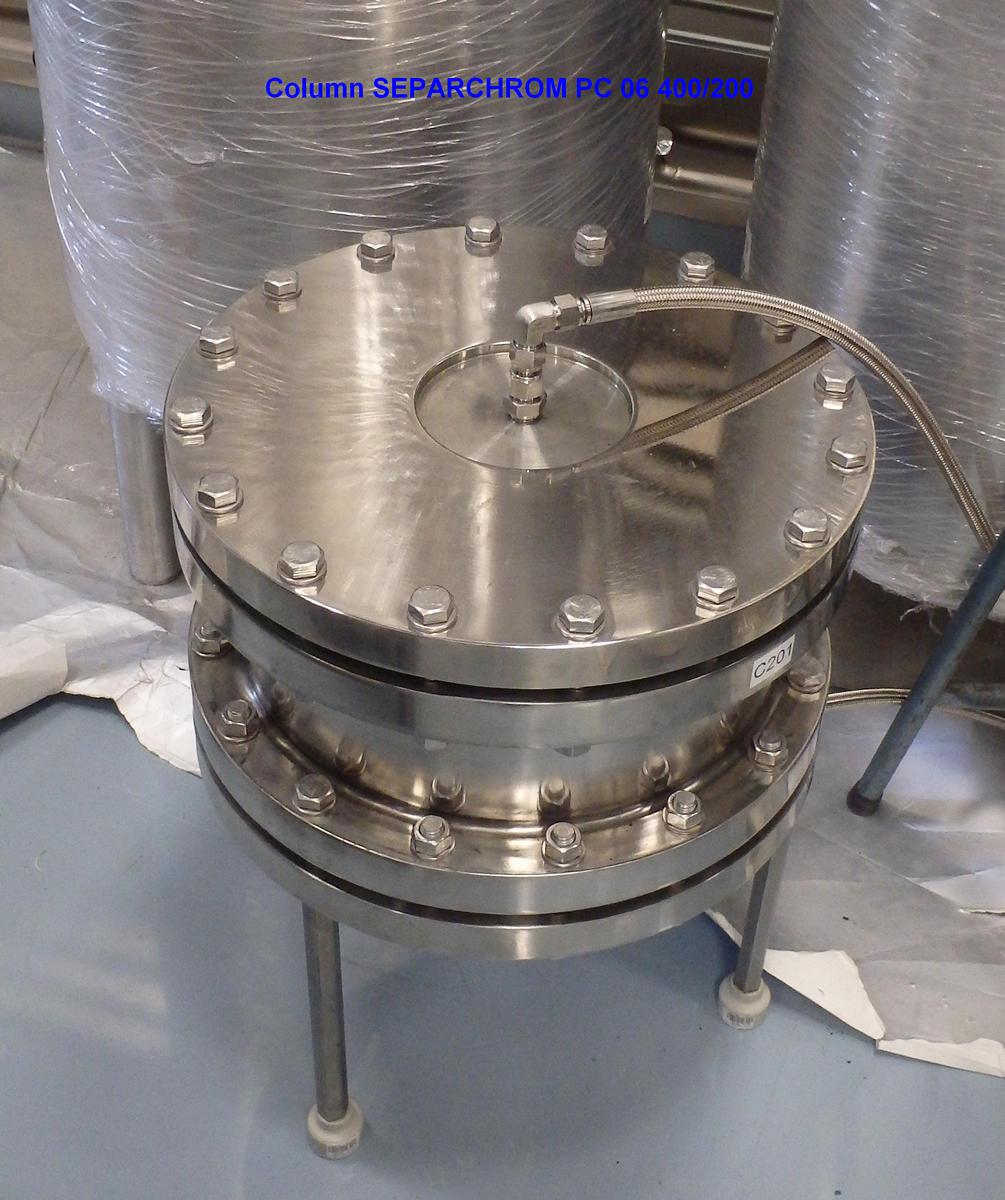

![SEPARCHROM PC06 400/200 IMG-1 SEPARCHROM PC06 400/200](/sites/default/files/2021-02/6400020001.jpg)
img do poznamky 3

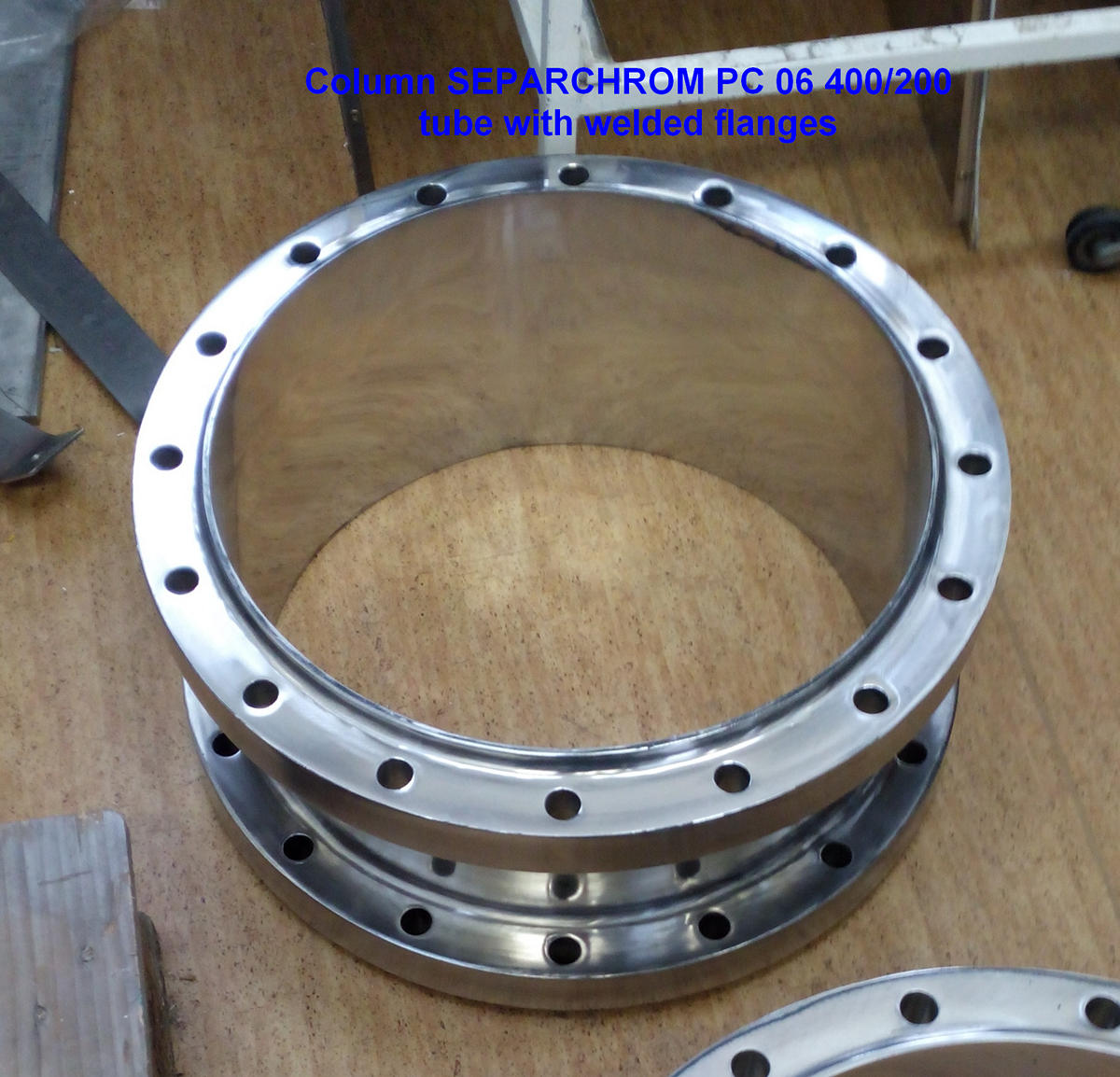

![SEPARCHROM PC06 400/200 IMG-3 SEPARCHROM PC06 400/200 TUBE WITH WELDED FLANGES](/sites/default/files/2021-02/6400020003.jpg)
img do poznamky 4

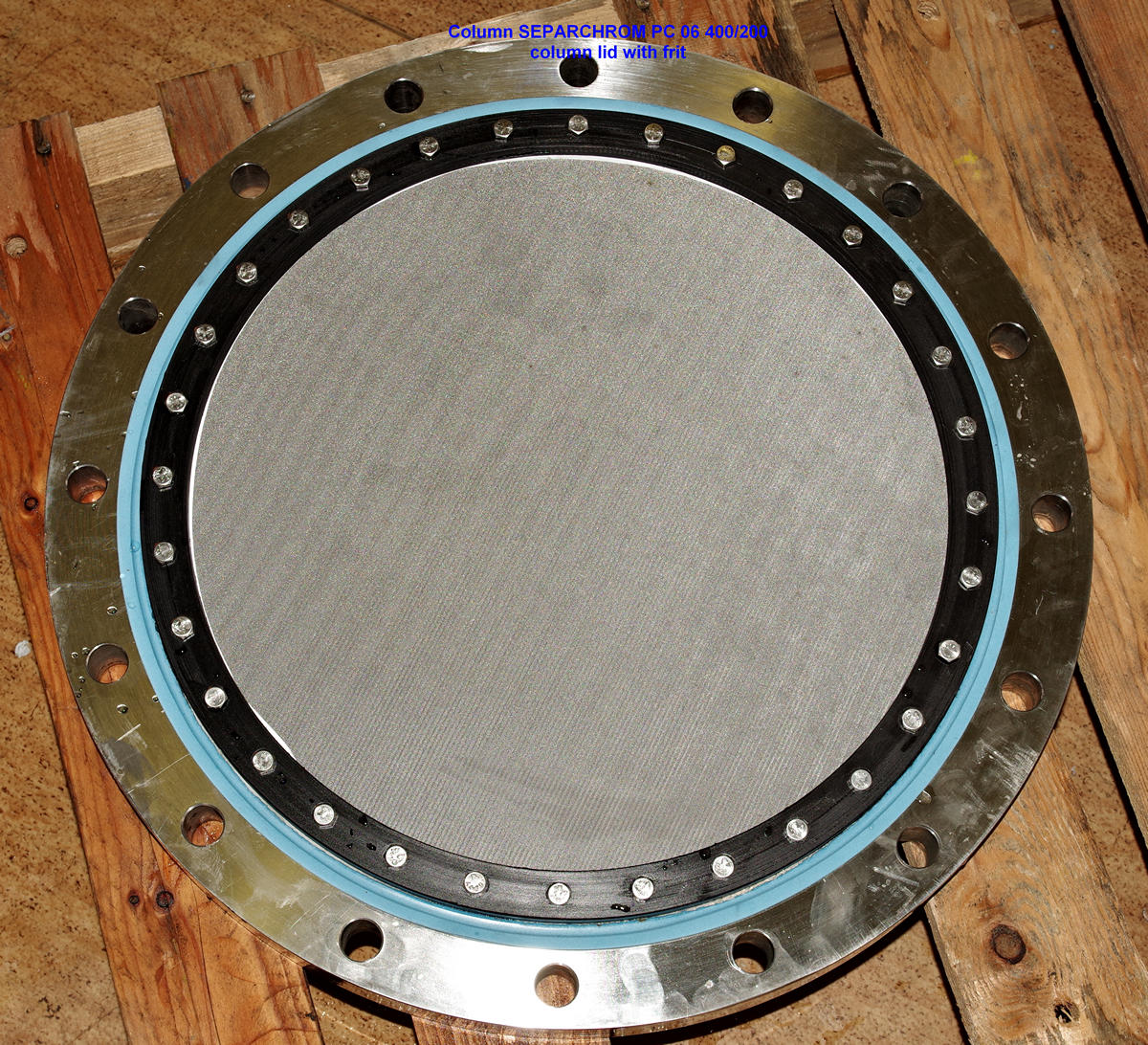

![SEPARCHROM PC06 400/200 IMG-4 SEPARCHROM PC06 400/200 COLUMN LID WITH FRIT](/sites/default/files/2021-02/6400020004.jpg)
img do poznamky 5

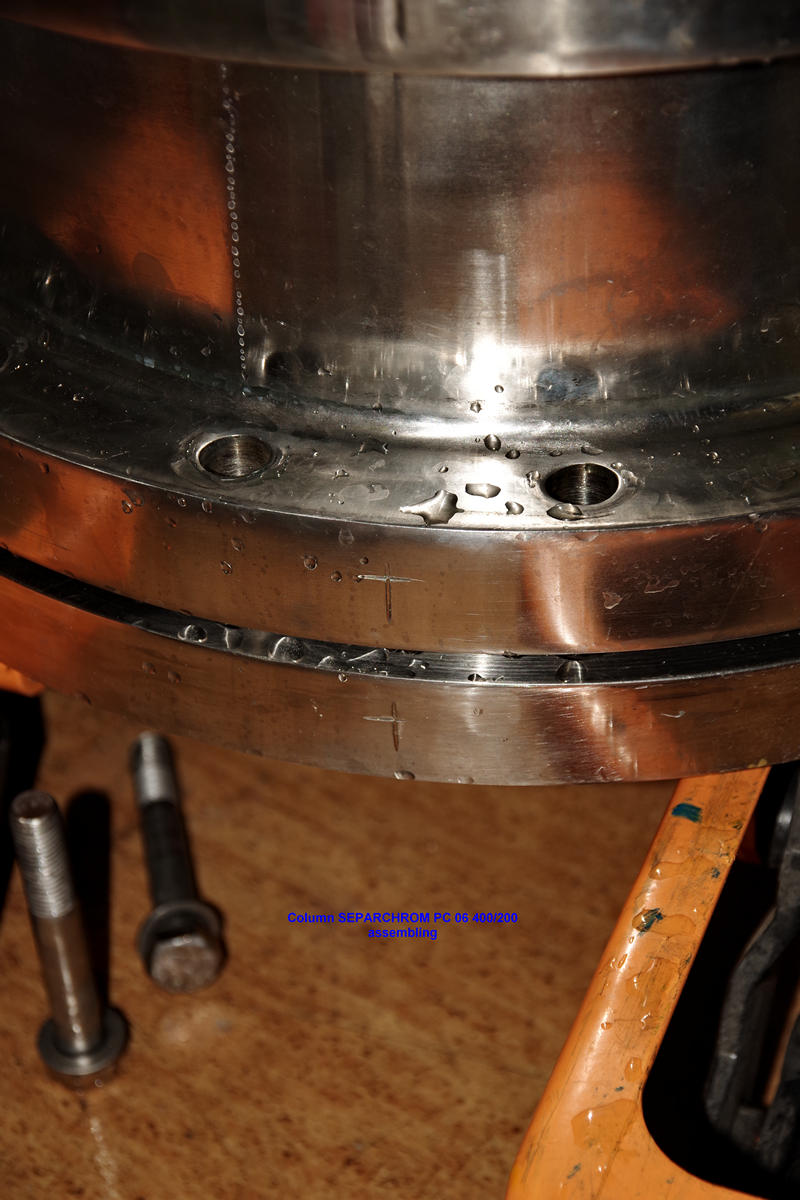

![SEPARCHROM PC06 400/200 IMG-6 SEPARCHROM PC06 400/200 ASSEMBLING](/sites/default/files/2021-02/6400020006.jpg)
img do poznamky 6

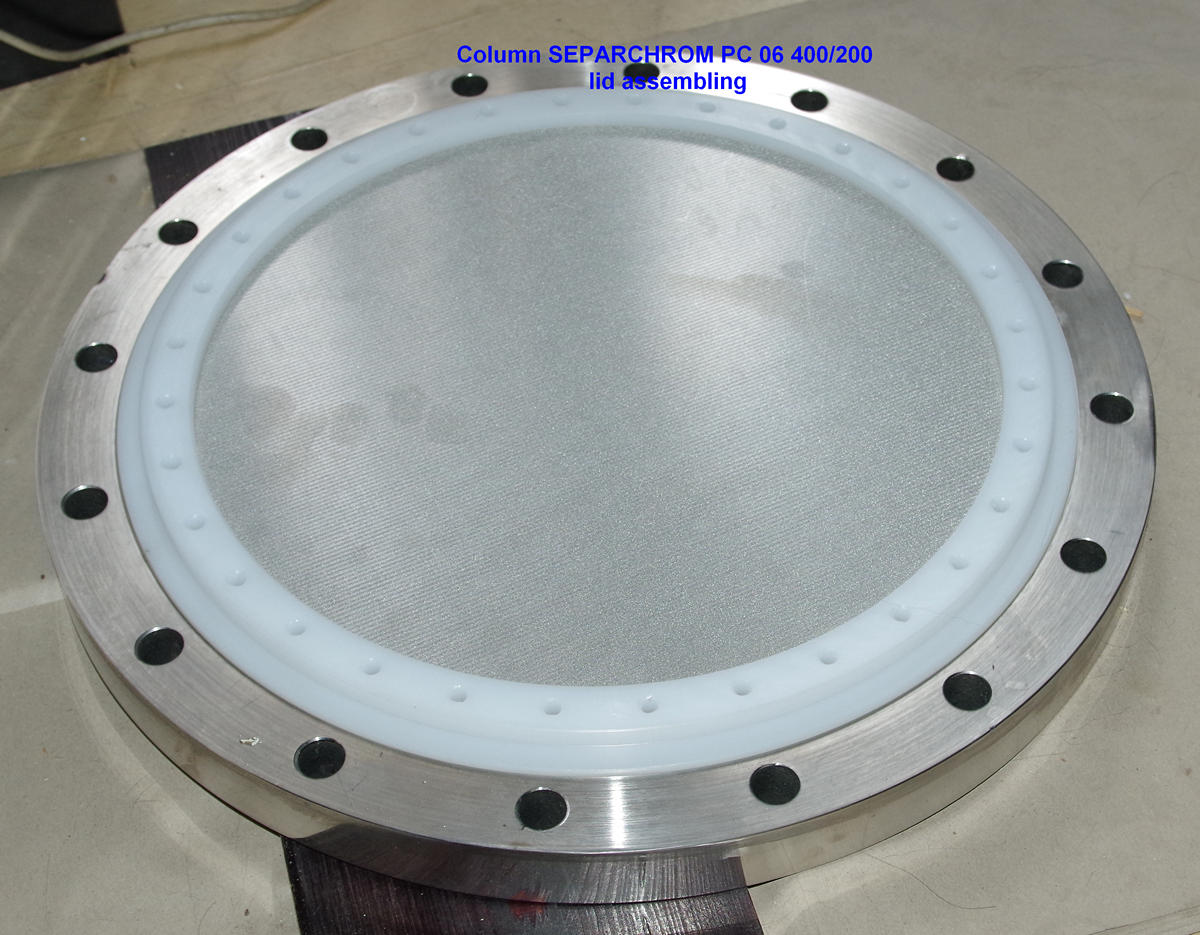

![SEPARCHROM PC06 400/200 IMG-9 SEPARCHROM PC06 400/200 LID ASSEMBLING](/sites/default/files/2021-02/6400020009.jpg)
img do poznamky 7

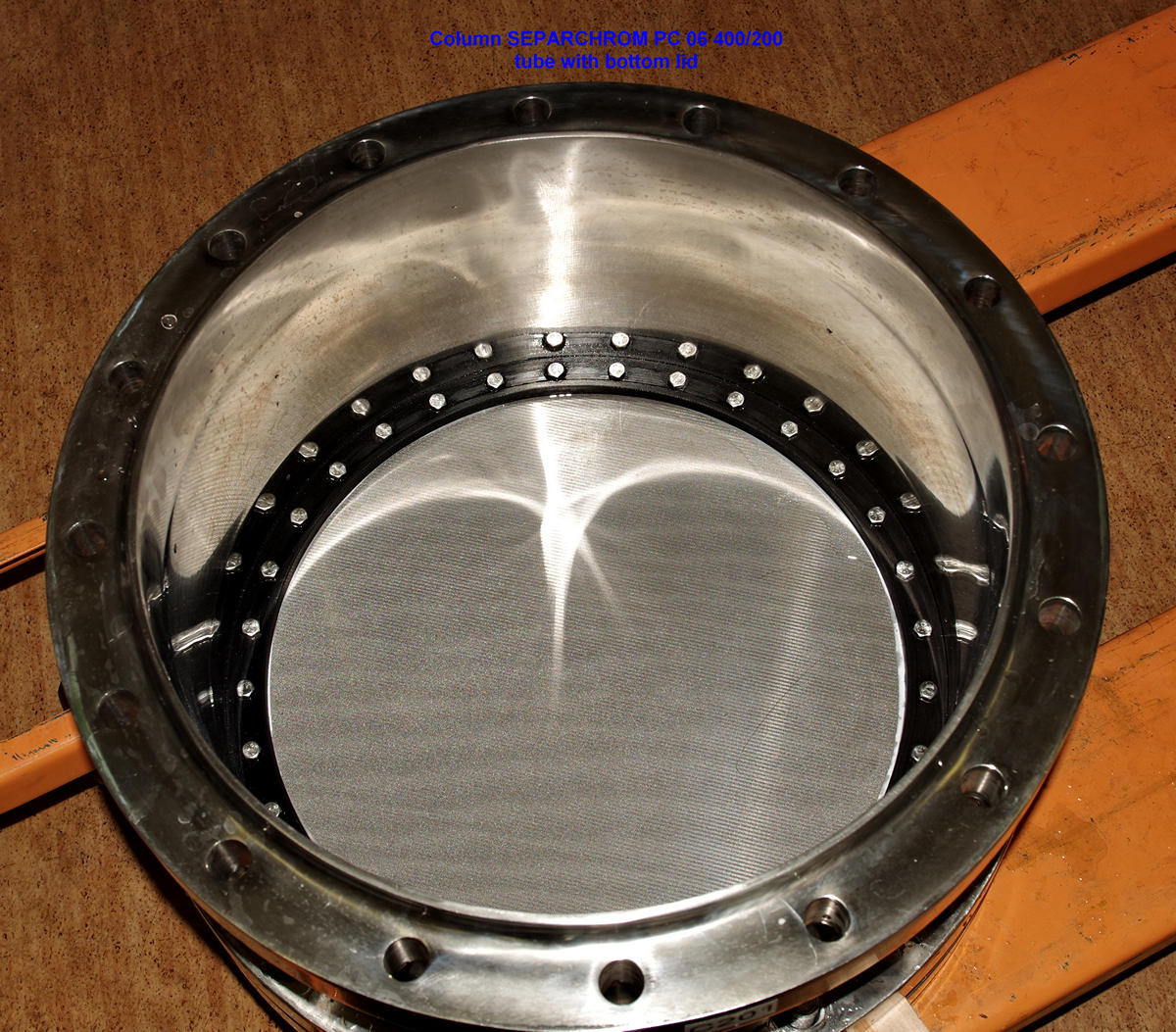

![SEPARCHROM PC06 400/200 IMG-10 SEPARCHROM PC06 400/200 TUBE WITH BOTTOM LID](/sites/default/files/2021-02/6400020010.jpg)
