UHMWPE COLUMNS FOR PREP CHROMATOGRAPHY

Columns for Medium Pressure with axial bed compression

For flash chromatography are usually intended polyethylene cartridge columns. Metal free columns are requested in some special applications too. Separlab offers Separchrom PC04 columns for both these purposes. Columns are made of high quality ultra high molecular weight polyethylene, have similar design

like stainless steel columns PC01 or PC02 and are equipped with polypropylene fabrics (non woven polypropylene 10 µm pores) made frits. Piston on the input moved by a robust central screw increases the efficiency due an elimination of free space between upper sorbent layer and frit with low pressure flow distributor. Output frit with flow distributor is incorporated in output flange. Columns are compatible with nearly all organic solvents and with all water solutions. Columns are designated for low pressure and medium pressure liquid chromatography.

Type of column I.D.
mm
Length
mm
Pressure
bar
Note
SEPARCHROM PC04-50/150 50 150 16
SEPARCHROM PC04-50/250 50 250 16
SEPARCHROM PC04-50/300 50 300 16
 .
SEPARCHROM PC04-50/500 50 500 16
SEPARCHROM PC04-100/250 100 250 16
SEPARCHROM PC04-100/300 100 300 16
SEPARCHROM PC04-100/500 100 500 16
SEPARCHROM PC 04-150/300 150 300 6
 .
SEPARCHROM PC 04-150/600 150 600 6
SEPARCHROM PC 04-200/400 200 400 6
SEPARCHROM PC 04-200/800 200 800 6
SEPARCHROM PC 04-300/500 300 500 5
SEPARCHROM PC 04-300/900 300 900 5
0
img do poznamky 1

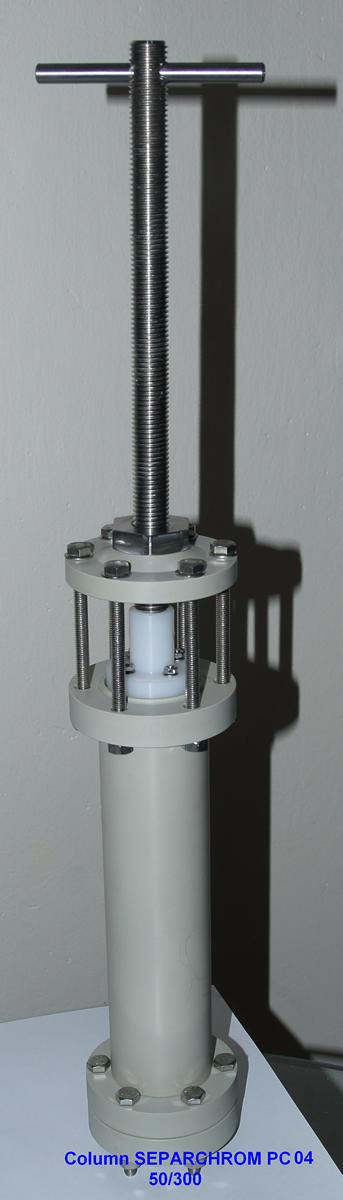

SEPARCHROM PC04 50/300
img do poznamky 2

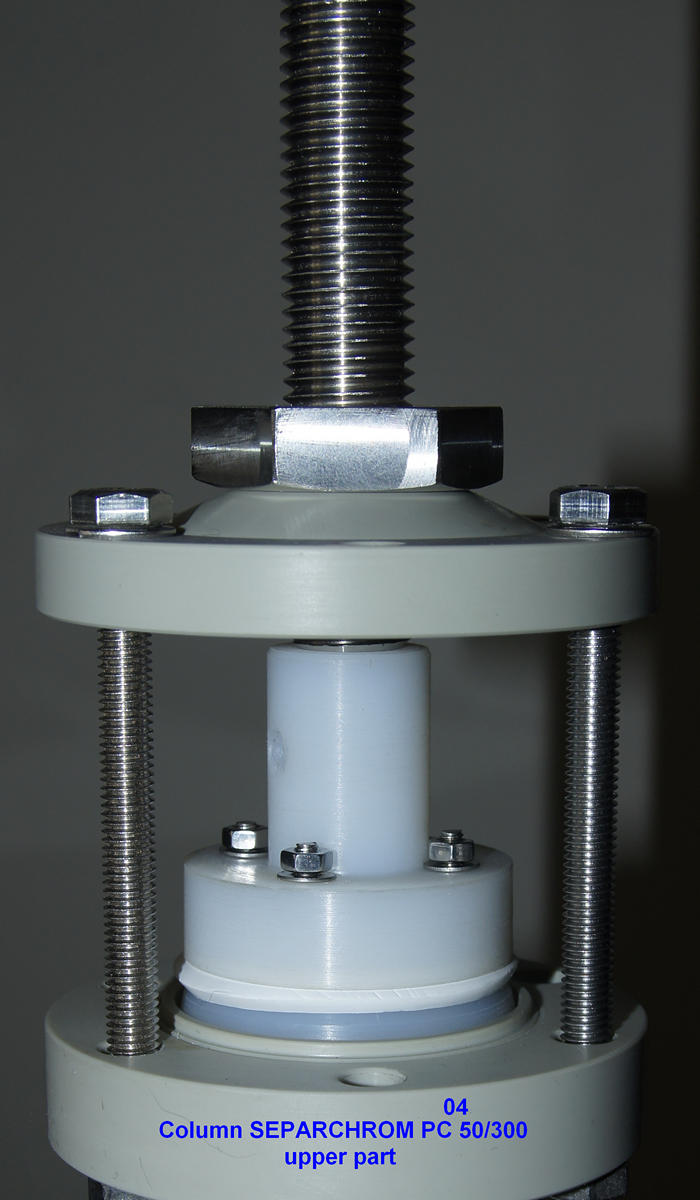

SEPARCHROM PC04 50/300 UPPER PART

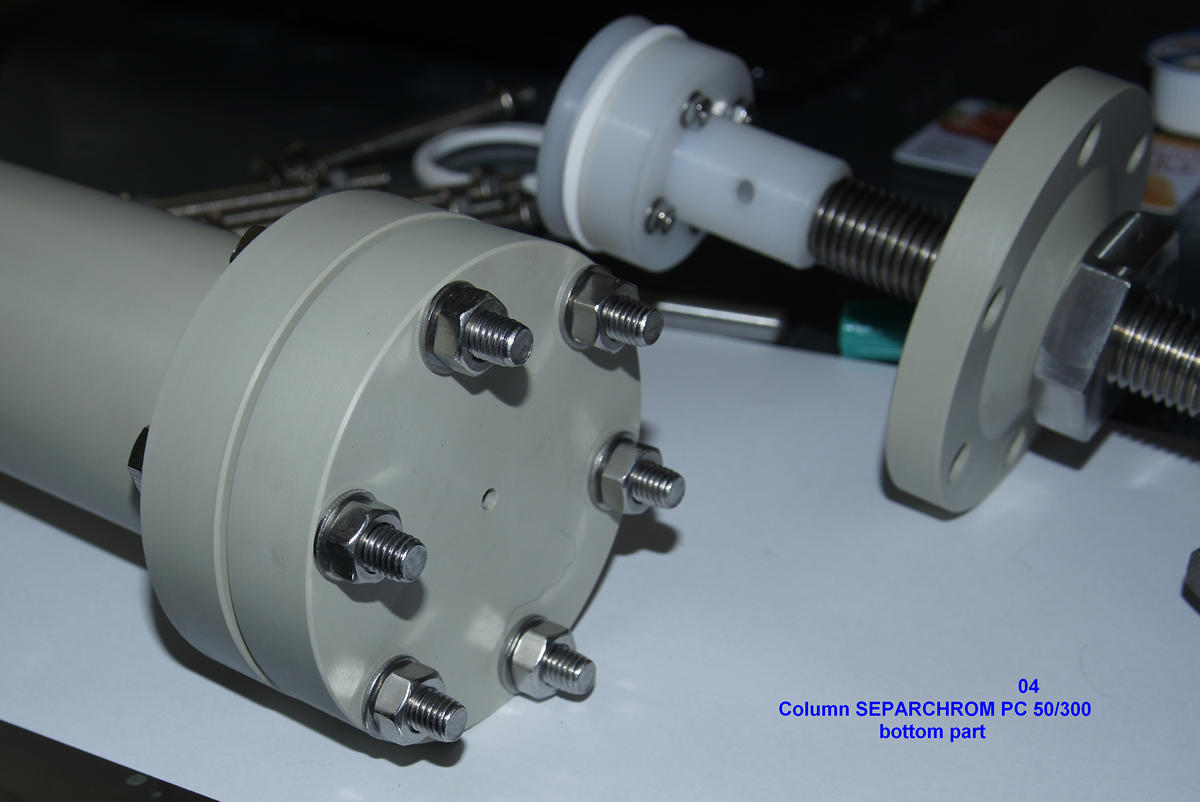

img do poznamky 3
SEPARCHROM PC04 50/300 BOTTOM PART
img do poznamky 4

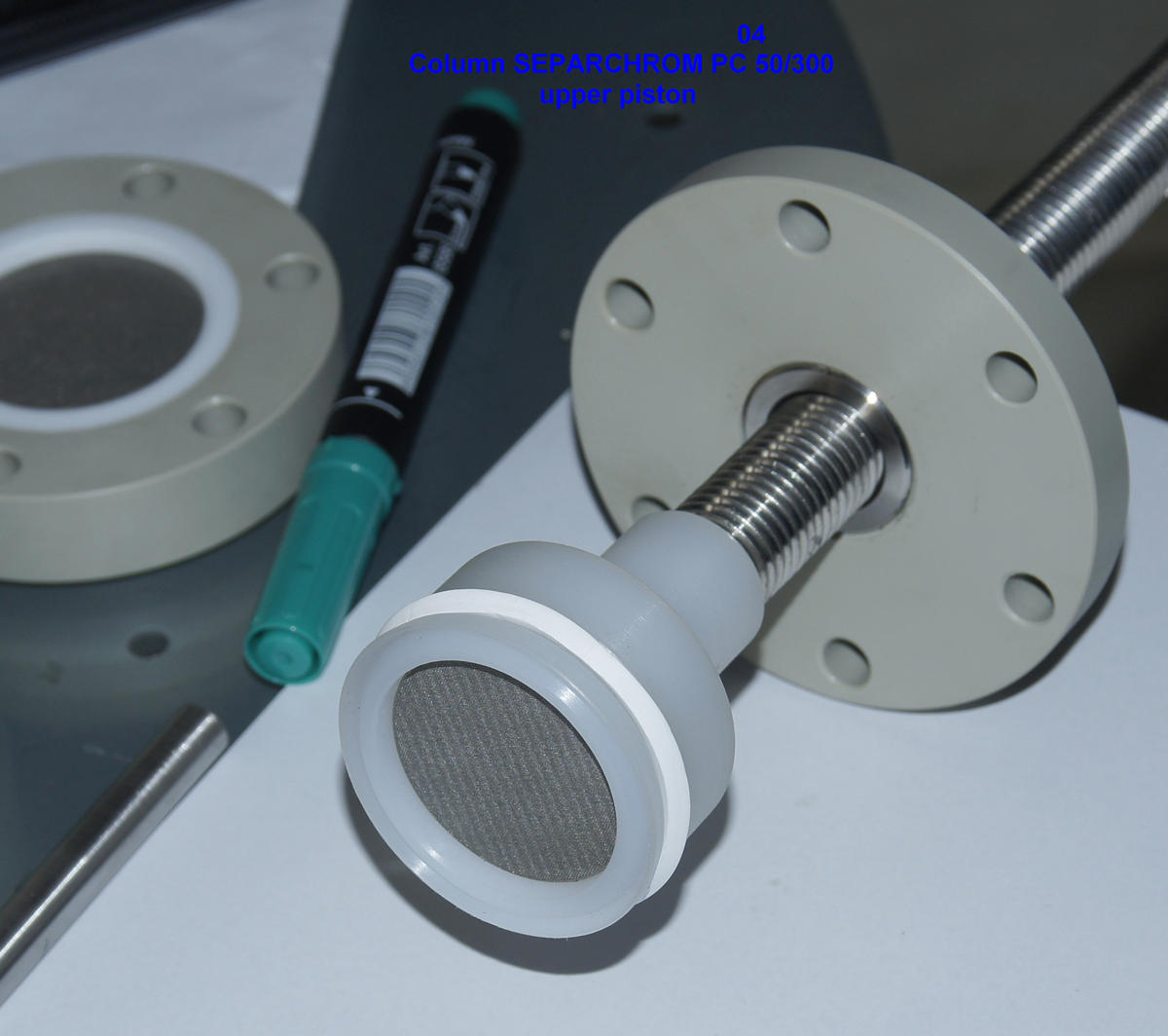

SEPARCHROM PC04 50/300 UPPER PISTON
img do poznamky 5

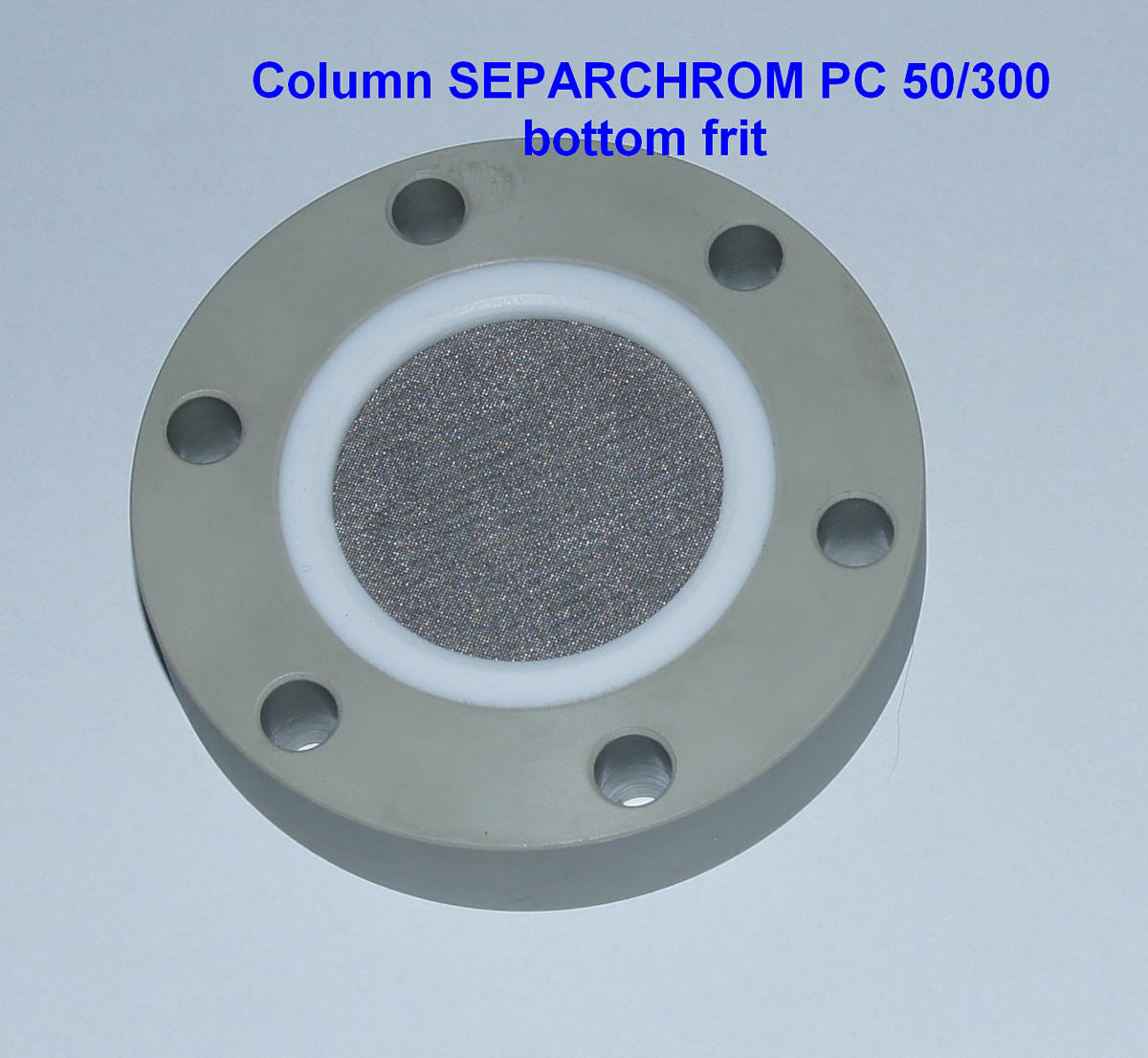

SEPARCHROM PC04 50/300 BOTTOM FRIT

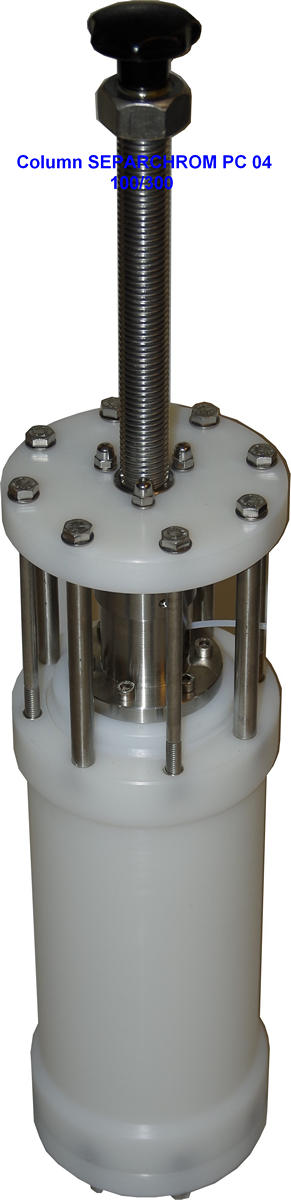

img do poznamky 6

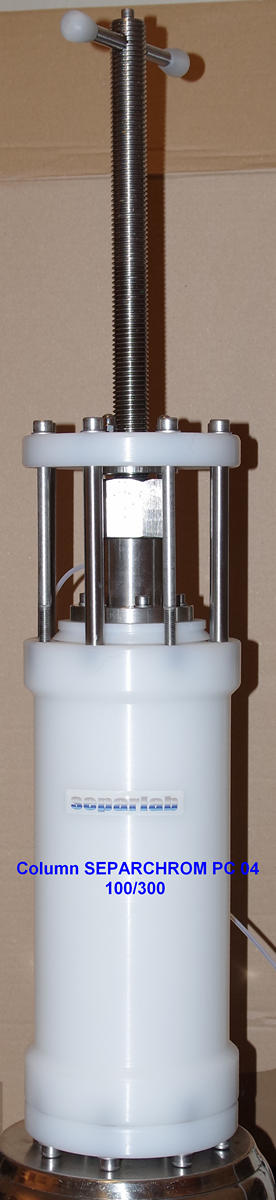

SEPARCHROM PC04 100/300
img do poznamky 7
SEPARCHROM PC04 100/300 IMG-2
img do poznamky 8

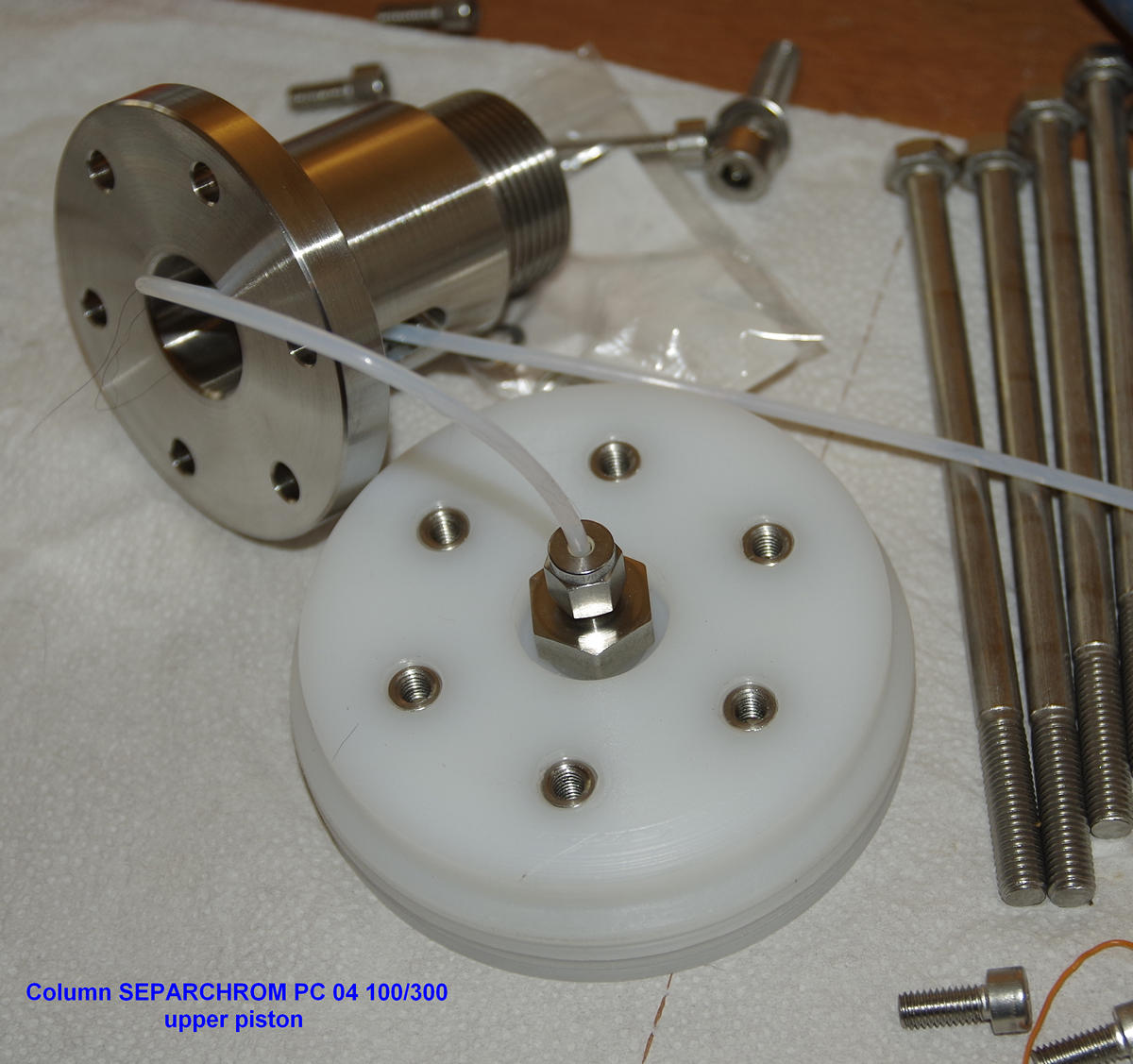

SEPARCHROM PC04 100/300 UPPER PISTON

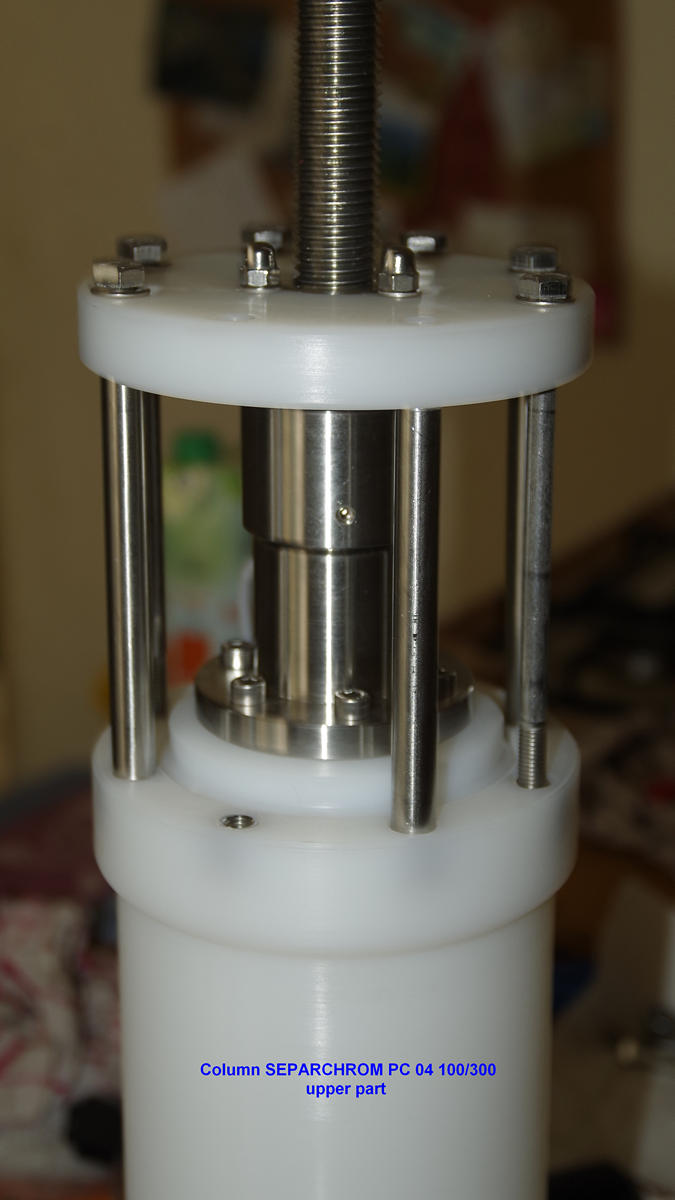

img do poznamky 9
SEPARCHROM PC04 100/300 UPPER PART
img do poznamky 10

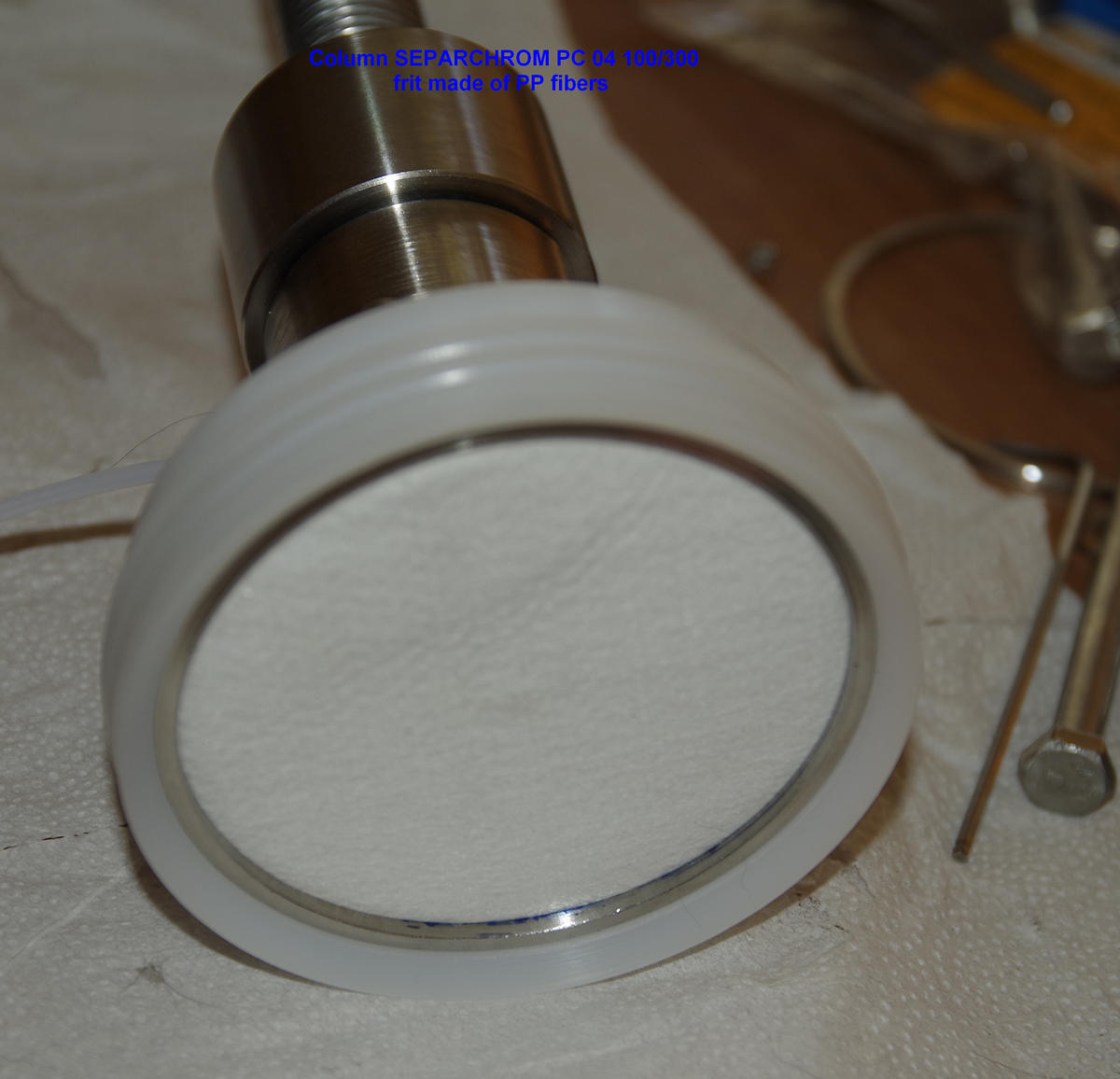

SEPARCHROM PC04 100/300 FRIT MADE OF PP FIBERS
img do poznamky 11

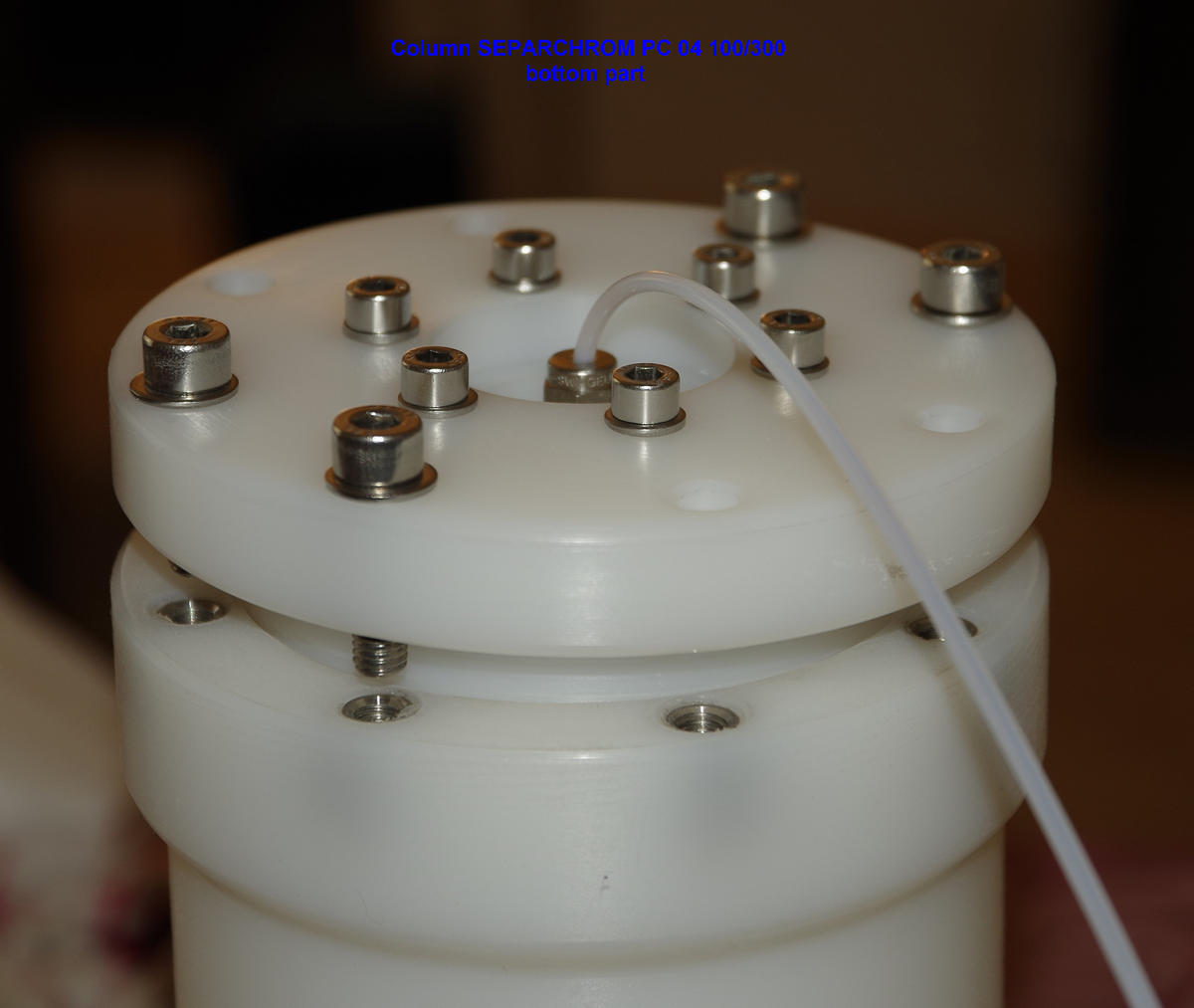

SEPARCHROM PC04 100/300 BOTTOM PART
